Insulation Enhancement Systems Cable End Caps

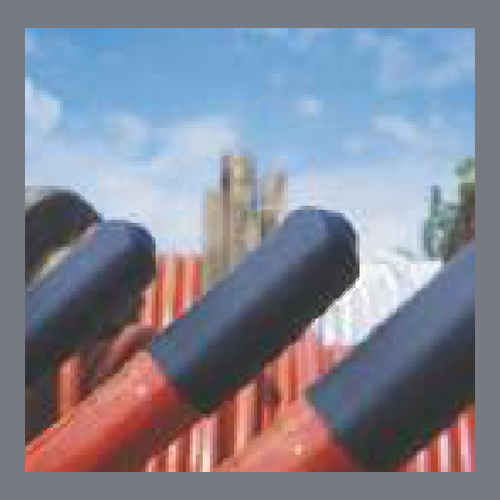

Cable End Sealing Caps

Raysulate Heat Shrinkable End Caps. Heat shrinkable end caps, cable outer dia 4-220 mm. 9 part codes, Rs 50 - 1,820 per no.

Rs 50 - 1,820

Cable End Sealing Caps is a Heat Shrinkable End Cap from Raysulate (Raychem RPG). It covers cable diameters 4 - 220 mm. 9 part codes, list price Rs 50 - 1,820 per no, effective 01-04-2026, exclusive of taxes. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh - call +91 7300249139 or email support@jaient.in.

Heat shrinkable cable end sealing caps seal cable ends against moisture ingress during storage, transport and installation. Suitable for all cable types, including underwater and underground applications.

Specifications

Brand	Raysulate (Raychem RPG)
Product range	Heat Shrinkable End Caps
Cable diameter range	4 - 220 mm
Part codes listed	9
List price	Rs 50 - 1,820 per no, effective 01-04-2026, exclusive of GST
Supplied by	Jai Enterprises, Bhilai and Raipur - across India

Key Features

Suitable for all cable types
High resistance to moisture, fungus and weathering
Suitable for underwater and underground application

Ordering Information

Cable Outer Dia Range (mm)	Part Code (PCN)	List Price (INR)
4-8	DBA0060309	50
8-17	DBA0060269	80
15-30	DBA0060226	130
25-50	DBA0060289	250
35-70	DBA0060147	435
45-95	DBA0060148	580
70-105	DBA0060149	720
90-150	DBA0060531	1,560
130-220	DBA0060532	1,820

Applications

Used in Power and Network, Utility, Oil and Gas Petrochemical, Railways, Automation and Process Control, Cement Industry, Metal Industry.

Frequently Asked Questions

How do I choose the right size of Cable End Sealing Caps?

This is selected on the cable's outside diameter, not its conductor size. Measure over the cable jacket and order the part code whose use range brackets that figure — the sizes here cover 4 to 220 mm. The tube recovers onto the cable, so the measured diameter must fall inside the range rather than at its limit.

What does Cable End Sealing Caps cost?

List prices run from Rs 50 to Rs 1,820 per no, effective 01-04-2026, exclusive of GST, freight and installation. Project quantities are quoted against the list.

What is the lead time and is it available from stock?

Fast-moving part codes are usually available from stock in Bhilai and Raipur; the rest are called off against Raychem RPG lead times. Call +91 7300249139 or email support@jaient.in with the part code and quantity and we will confirm availability the same working day.

Who supplies Cable End Sealing Caps in India?

Jai Enterprises is a Raysulate / Raychem RPG distributor supplying Heat Shrinkable End Caps across India from Bhilai and Raipur, Chhattisgarh. We support selection, pricing and documentation — call +91 7300249139 or email support@jaient.in.

Raysulate / Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 6.
