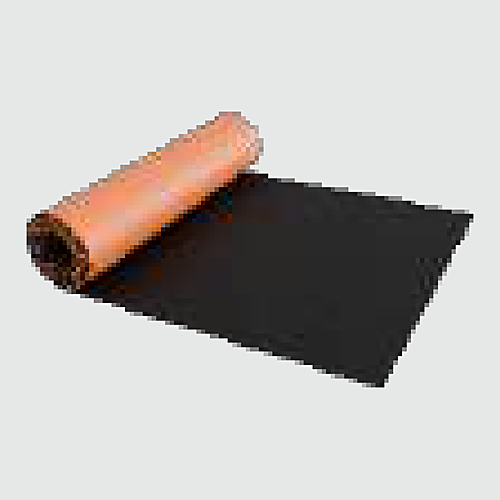

Kamfet Electrical Insulating Mat - IS 15652:2006 - Black / Orange
Kamfet IS 15652:2006 Insulating Mats. 14 part codes, Rs 5,940 - 45,500 per roll.
Rs 5,940 - 45,500
Kamfet Electrical Insulating Mat - IS 15652:2006 - Black / Orange is an IS 15652:2006 Insulating Mat from Kamfet (Raychem RPG). 6 part codes, list price Rs 5,940 - 45,500 per roll, effective 01-04-2026, exclusive of taxes. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh - call +91 7300249139 or email support@jaient.in.
Kamfet Electrical Insulating Mat - IS 15652:2006 - Black / Orange from the Raychem RPG Electrical Safety Products range.
Specifications
| Brand | Kamfet (Raychem RPG) |
|---|---|
| Product range | IS 15652:2006 Insulating Mats |
| Conforms to | IS 15652:2006 |
| Part codes listed | 6 |
| List price | Rs 5,940 - 45,500 per roll, effective 01-04-2026, exclusive of GST |
| Minimum order | 50 Roll; 1 Roll |
| Supplied by | Jai Enterprises, Bhilai and Raipur - across India |
Key Features
- Dual Colour Technology: The dual-layer design features two colors, enabling easy detection of mechanical damage. Visible color changes on the
- High Dielectric Strength: Designed to withstand high voltages, providing excellent insulation. Tested as per IS 15652:2006
- Flame Retardant: Fire will not propagate in case of a flammable liquid spill or spark. Complies with IS 15652:2006 Clause C-5.1
- 100% Virgin Material: Ensures extended durability and reliable performance
- UV Stabilized: Resistant to degradation caused by sunlight exposure
- Anti-Skid Surface: Textured surface enhances grip, reducing slip risks
Ordering Information
| Product Code | Class | Thickness (mm) | Rolls Width | Size Length | Part Code (PCN) | List Price (INR) | MOQ |
|---|---|---|---|---|---|---|---|
| ESIMBLO-A-1X2 | CLASS A | 2 | 1 | 2 | EBASBJ1006 | 5,940 | 50 Roll |
| ESIMBLO-A-1X10 | CLASS A | 2 | 1 | 10 | EBASBJ1001 | 29,700 | 1 Roll |
| ESIMBLO-B-1X2 | CLASS B | 2.5 | 1 | 2 | EBASBK1007 | 7,260 | 50 Roll |
| ESIMBLO-B-1X10 | CLASS B | 2.5 | 1 | 10 | EBASBK1002 | 36,300 | 1 Roll |
| ESIMBLO-C-1X2 | CLASS C | 3 | 1 | 2 | EBASBL1009 | 9,100 | 50 Roll |
| ESIMBLO-C-1X10 | CLASS C | 3 | 1 | 10 | EBASBL1003 | 45,500 | 1 Roll |
Applications
Used in Commercial, Power and Network, Utility, Oil and Gas Petrochemical, Railways, Automation and Process Control.
Related products
- Kamfet Electrical Insulating Mat - IS 15652:2006 - Blue / Orange — the Blue / Orange variant
- Kamfet Electrical Insulating Mat - IS 15652:2006 - Grey / Orange — the Grey / Orange variant
Frequently Asked Questions
Which class of insulating matting do I need?
Match the class to the maximum working voltage at the panel it fronts — the class and its voltage are stated in the product name and features above. Matting is rated per the standard it is tested to, not by thickness alone.
Which standards does this product conform to?
It is manufactured and tested to IS 15652:2006. Test certificates can be supplied with the order on request.
What does Kamfet Electrical Insulating Mat - IS 15652:2006 - Black / Orange cost?
List prices run from Rs 5,940 to Rs 45,500 per roll, effective 01-04-2026, exclusive of GST, freight and installation. Project quantities are quoted against the list.
Is there a minimum order quantity?
50 Roll; 1 Roll. Smaller quantities can sometimes be released from stock — ask when you enquire.
What is the lead time and is it available from stock?
Fast-moving part codes are usually available from stock in Bhilai and Raipur; the rest are called off against Raychem RPG lead times. Call +91 7300249139 or email support@jaient.in with the part code and quantity and we will confirm availability the same working day.
Who supplies Kamfet Electrical Insulating Mat - IS 15652:2006 - Black / Orange in India?
Jai Enterprises is a Kamfet / Raychem RPG distributor supplying IS 15652:2006 Insulating Mats across India from Bhilai and Raipur, Chhattisgarh. We support selection, pricing and documentation — call +91 7300249139 or email support@jaient.in.
Kamfet / Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 97.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
