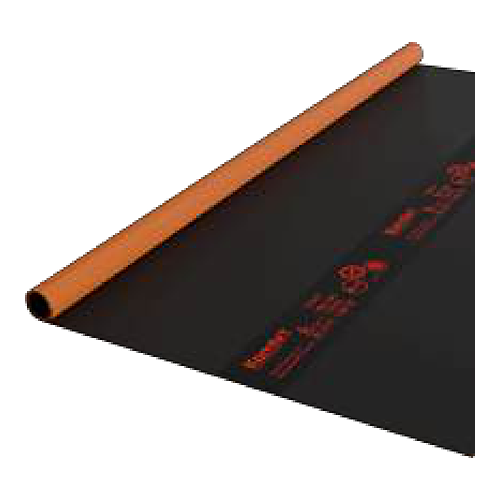

Kamfet Electrical Insulating Matting - Class 0 (1000 VAC / 1500 VDC) - Dual Colour Black / Orange
Kamfet IEC 61111 Matting - Dual Colour, Black / Orange. 8 part codes, Rs 4,920 - 58,900 per roll.
Rs 4,920 - 58,900
Kamfet Electrical Insulating Matting - Class 0 (1000 VAC / 1500 VDC) - Dual Colour Black / Orange is an IEC 61111 Matting - Dual Colour, Black / Orange from Kamfet (Raychem RPG). 8 part codes, list price Rs 4,920 - 58,900 per roll, effective 01-04-2026, exclusive of taxes. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh - call +91 7300249139 or email support@jaient.in.
Kamfet Electrical Insulating Matting - Class 0 (1000 VAC / 1500 VDC) - Dual Colour Black / Orange from the Raychem RPG Electrical Safety Products range.
Specifications
| Brand | Kamfet (Raychem RPG) |
|---|---|
| Product range | IEC 61111 Matting - Dual Colour, Black / Orange |
| Conforms to | IEC 61111:2009 |
| Part codes listed | 8 |
| List price | Rs 4,920 - 58,900 per roll, effective 01-04-2026, exclusive of GST |
| Minimum order | 1 Roll; 25 Roll |
| Supplied by | Jai Enterprises, Bhilai and Raipur - across India |
Key Features
- Fully tested to specification IEC 61111:2009
- Dual-Color (Life Indicator) Technology: Black on top and Orange on bottom
- High electrical resistance from 50 volts to 50,000 volts
- Suitable for both AC and DC applications
- Provides enhanced safety for operators against electrical shock
- Features an anti-slip surface finish, conforming to slip-resistant test
- Resistant to acid, oil, and low temperatures, ensuring durability
- Permanent marking-durable and un-erasable for clear identification
- Supplied with full traceability for quality assurance
- Requires minimal maintenance, ensuring long-lasting usability
- Constructed with highly durable and quality rubber compound
- Designed with highly flexible mats featuring a self-gripping design
- Anti-fatigue type, providing comfort during prolonged standing
- Operating temperature range: -40°C to +55°C, suitable for various environments
- Repetitive marking, with three markings every 1 meter
- Halogen-free, RoHS2, and REACH compliant, meeting environmental standards
Ordering Information
| Product Code | Length | Weight | Width | Thickness | Part Code (PCN) | List Price (INR) | MOQ |
|---|---|---|---|---|---|---|---|
| ES0FIBO-1X1-M | 1 Meter | 3.3 kg | 1.0 Meter | 2.2 mm | DEA0021339 | 4,920 | 1 Roll |
| ES0FIBO-1X2-M | 2 Meter | 6.6 kg | 1.0 Meter | 2.2 mm | DEA0021340 | 9,820 | 1 Roll |
| ES0FIBO-1X5-M | 5 Meter | 16.5 kg | 1.0 Meter | 2.2 mm | DEA0021341 | 24,550 | 1 Roll |
| ES0FIBO-1X10-M | 10 Meter | 33 kg | 1.0 Meter | 2.2 mm | DEA0021342 | 49,100 | 1 Roll |
| ES0FIBO-1.2X1-M | 1 Meter | 3.96 kg | 1.2 Meter | 2.2 mm | DEA0021343 | 5,890 | 25 Roll |
| ES0FIBO-1.2X2-M | 2 Meter | 7.92 kg | 1.2 Meter | 2.2 mm | DEA0021344 | 11,800 | 25 Roll |
| ES0FIBO-1.2X5-M | 5 Meter | 19.8 kg | 1.2 Meter | 2.2 mm | DEA0021345 | 29,450 | 25 Roll |
| ES0FIBO-1.2X10-M | 10 Meter | 39.6 kg | 1.2 Meter | 2.2 mm | DEA0021346 | 58,900 | 25 Roll |
Applications
Used in Commercial, Power and Network, Utility, Oil and Gas Petrochemical, Railways, Automation and Process Control.
Related products
- Kamfet Electrical Insulating Matting - Mat Finish, Dark Grey (IEC 61111) — the Mat Finish, Dark Grey (IEC 61111) variant
- Kamfet Electrical Insulating Matting - Class 0 (1000 VAC / 1500 VDC) - Mat Finish, Dark Grey — the Mat Finish, Dark Grey variant
- Kamfet Electrical Insulating Matting - Class 1 (7500 VAC / 11250 VDC) - Mat Finish, Dark Grey — the Mat Finish, Dark Grey variant
- Kamfet Electrical Insulating Matting - Class 2 (17000 VAC / 25500 VDC) - Mat Finish, Dark Grey — the Mat Finish, Dark Grey variant
- Kamfet Electrical Insulating Matting - Class 3 (26500 VAC / 39750 VDC) - Mat Finish, Dark Grey — the Mat Finish, Dark Grey variant
- Kamfet Electrical Insulating Matting - Class 4 (36000 VAC / 54000 VDC) - Mat Finish, Dark Grey — the Mat Finish, Dark Grey variant
Frequently Asked Questions
Which class of insulating matting do I need?
Match the class to the maximum working voltage at the panel it fronts — the class and its voltage are stated in the product name and features above. Matting is rated per the standard it is tested to, not by thickness alone.
What does the dual-colour matting indicate?
The two layers act as a wear indicator: when the bottom colour shows through the top surface, the mat has worn past its safe thickness and must be replaced. It removes the guesswork from periodic inspection.
Which standards does this product conform to?
It is manufactured and tested to IEC 61111:2009. Test certificates can be supplied with the order on request.
What does Kamfet Electrical Insulating Matting - Class 0 (1000 VAC / 1500 VDC) - Dual Colour Black / Orange cost?
List prices run from Rs 4,920 to Rs 58,900 per roll, effective 01-04-2026, exclusive of GST, freight and installation. Project quantities are quoted against the list.
Is there a minimum order quantity?
1 Roll; 25 Roll. Smaller quantities can sometimes be released from stock — ask when you enquire.
What is the lead time and is it available from stock?
Fast-moving part codes are usually available from stock in Bhilai and Raipur; the rest are called off against Raychem RPG lead times. Call +91 7300249139 or email support@jaient.in with the part code and quantity and we will confirm availability the same working day.
Who supplies Kamfet Electrical Insulating Matting - Class 0 (1000 VAC / 1500 VDC) - Dual Colour Black / Orange in India?
Jai Enterprises is a Kamfet / Raychem RPG distributor supplying IEC 61111 Matting - Dual Colour, Black / Orange across India from Bhilai and Raipur, Chhattisgarh. We support selection, pricing and documentation — call +91 7300249139 or email support@jaient.in.
Kamfet / Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 100.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
