NTS TTMA-200 Trailer Truck Mounted Attenuator – MASH 2016 TL-3 Crash Cushion

The NTS TTMA-200 is a trailer truck mounted attenuator (TMA): a crash cushion on a trailer that is towed behind a work vehicle to absorb the impact of a vehicle that runs into a road-work zone. It hooks onto the truck's standard coupling, so any truck above 4.6 tonnes with a standard draw eye can be the shadow vehicle — no dedicated TMA truck. It is made by NTS (Nordic Traffic Safety).

The TTMA-200 has passed all four MASH 2016 Test Level 3 crash tests at 100 km/h.

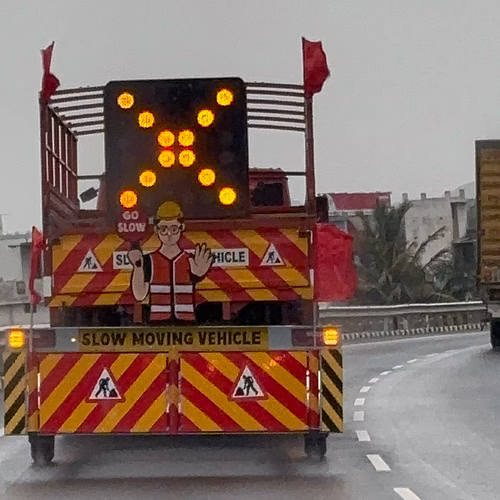

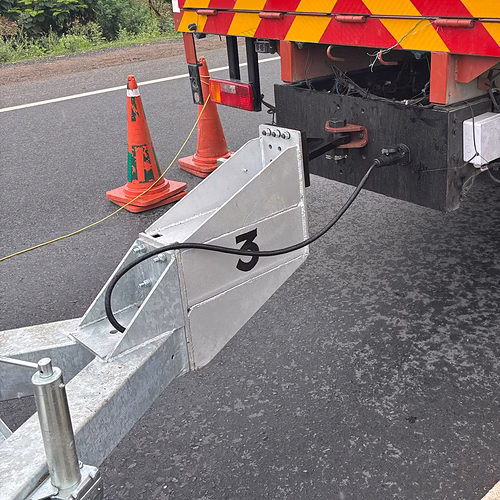

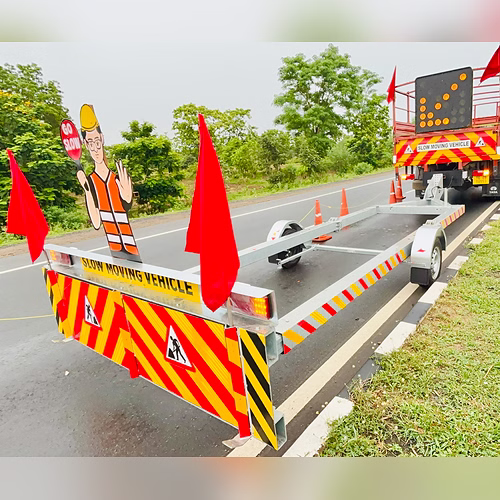

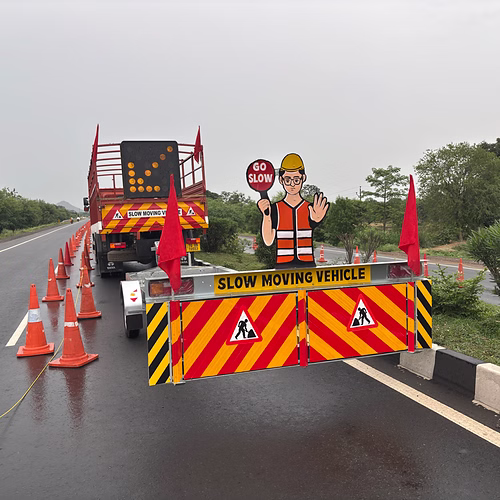

The photographs on this page show a TTMA-200 at work on a highway in India: hooked to a standard truck's coupling, with the truck's LED arrow board, a cone taper and high-visibility "Slow Moving Vehicle" chevron panels.

At a glance

• Model: NTS TTMA-200 trailer TMA
• Crash tests: MASH 2016 TL-3 — tests 3-50, 3-51, 3-52 and 3-53 at 100 km/h; NCHRP 350 approved
• Size: W 244 × H 79 × L 750 cm
• Weight: 720 kg (without light panel)
• Towing: any truck above 4.6 t with a standard draw eye
• Finish: fully hot-dip galvanised

Why choose the TTMA-200

• Any truck in your fleet — attaches to the standard coupling; no dedicated TMA vehicle and no extra attachments on the truck.
• Fast deployment — no machines needed.
• Always engaged — permanent protection while towed; arrow-board options are available on the unit itself, so no light arrow has to be fitted to the truck.
• MASH 2016 TL-3 — all four tests passed at 100 km/h with a 2,270 kg pick-up and a 1,100 kg car, head-on, offset and angled.
• Low repair cost — modular; impacts up to 15 km/h typically cause no severe damage, and medium-speed impacts mostly need only new bursting tubes, reflex plates and trailer lights.
• Patented tube-bursting energy absorption.

Specifications

• Dimensions: W 244 cm × H 79 cm × L 750 cm
• Weight: 720 kg without light panel
• Draw-eye height: 50–80 cm; hitch extensions available for draw-eye heights up to 120 cm
• Towing vehicle: every truck above 4.6 t with a standard draw eye
• Construction: fully hot-dip galvanised
• Crash testing: MASH 2016 TL-3, tests 3-50, 3-51, 3-52, 3-53 at 100 km/h (2,270 kg pick-up truck and 1,100 kg car; head-on, offset and angle); NCHRP 350 approved
• Energy absorption: patented tube bursting: the tapered mandrel of the inner tube is pushed into the outer tube and splits it in a controlled way into 4 pieces that stay attached to the device
• Options: various arrow boards; standard hitch extension; air brakes
• Repairs: modular; standard ratchet set, no special tools

Where it is used

• Expressway and national-highway maintenance
• Mobile and short-duration lane closures
• Road marking, sweeping and pothole repair convoys
• Toll-plaza and bridge maintenance
• Tunnel maintenance and utility works on live roads

Trailer TMA versus a truck-mounted TMA

• Trailer (TTMA-200): hooks onto any 4.6 t+ truck — the attenuator moves between vehicles and no truck is tied up as a dedicated TMA.
• Truck-mounted: the cushion is fixed to one chassis; that truck must be available whenever protection is needed.

Frequently asked questions

What is a truck mounted attenuator?

An energy-absorbing crash cushion carried behind a work vehicle so that a car or truck that drives into the work zone hits the cushion instead of the workers or the work vehicle.

Which trucks can tow the TTMA-200?

Every truck above 4.6 tonnes with a standard draw eye; draw-eye height 50–80 cm, with hitch extensions available for draw-eye heights up to 120 cm.

What crash standard does it meet?

MASH 2016 Test Level 3 — all four tests (3-50, 3-51, 3-52, 3-53) at 100 km/h with a 2,270 kg pick-up and a 1,100 kg car — and NCHRP 350.

How does it absorb the impact?

By patented tube bursting: a tapered mandrel is driven into an outer tube and splits it into four pieces that stay attached to the unit.

What does it cost to repair after an impact?

Low-speed impacts up to 15 km/h typically cause no severe damage; after medium-speed impacts usually only the bursting tubes, reflex plates and trailer lights are replaced, with a standard ratchet set.

How heavy is it?

720 kg without the light panel.

Where can I buy it in India?

From Jai Enterprises, which supplies across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry with your towing vehicles and the arrow-board and brake options you need.
