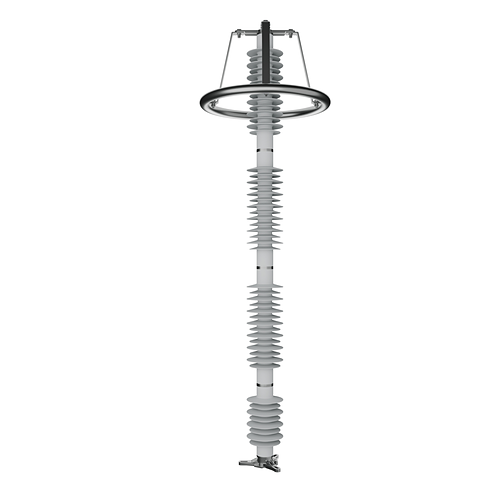

Outdoor Surge Arrester, Station Medium Class (SM) Class 3 - PCA - HV, 66-220kV
Raychem RPG Outdoor Station Class Surge Arresters. Outdoor polymeric surge arrester, 9 kV to 216 kV, 10 kA, with base and terminal connector. 5 part codes, Rs 92,480 - 341,940 per unit.
Rs 92,480 - 341,940
Outdoor Surge Arrester, Station Medium Class (SM) Class 3 - PCA - HV, 66-220kV is an Outdoor Station Class Surge Arrester from Raychem RPG. 5 part codes, list price Rs 92,480 - 341,940 per unit, effective 01-04-2026, exclusive of taxes. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh - call +91 7300249139 or email support@jaient.in.
PCA outdoor is a Station Medium Class (SM), Class 3 polymeric surge arrester for systems from 11 kV up to 220 kV, supplied with base and L2 or L5 terminal connector. Conforms to IEC 60099-4.
Specifications
| Brand | Raychem RPG |
|---|---|
| Product range | Outdoor Station Class Surge Arresters |
| Model | PCA |
| System voltage | 220 kV |
| Conforms to | IEC 60099-4 |
| Part codes listed | 5 |
| List price | Rs 92,480 - 341,940 per unit, effective 01-04-2026, exclusive of GST |
| Supplied by | Jai Enterprises, Bhilai and Raipur - across India |
Key Features
- Conforms to IEC 60099-4
- Range from 6 kV to 216 kV
- Station Medium Class (SM) (Class 3)
- Low residual voltage
- Safe non-shattering short circuit behaviour to higher current levels
- Direct moulded housing to prevent moisture ingress
- Hydrophobic silicone housing (tracking and erosion resistant)
- Cage construction: excellent cantilever and tensile performance
Ordering Information
| Rating | LD Class | Terminal Type | Part Code (PCN) | List Price (INR) |
|---|---|---|---|---|
| 60kV, 10kA | Station Medium (SM) (Class 3) | Surge arrester with base and L2 terminal connector | AJA1090012 | 92,480 |
| 96kV,10kA | Station Medium (SM) (Class 3) | Surge arrester with base and L5 terminal connector | AJA1090031 | 209,610 |
| 120kV,10kA | Station Medium (SM) (Class 3) | Surge arrester with base and L5 terminal connector | AJA1090034 | 134,600 |
| 198kV, 10kA | Station Medium (SM) (Class 3) | Surge arrester with base and L5 terminal connector | AJA1090037 | 262,020 |
| 216kV,10kA | Station Medium (SM) (Class 3) | Surge arrester with base and L5 terminal connector | AJA1090040 | 341,940 |
Applications
Used in Power and Network, Utility, Oil and Gas Petrochemical, Railways, Automation and Process Control, Cement Industry, Metal Industry.
Related products
- Outdoor Surge Arrester, Station Medium Class (SM) Class 3 - PCA - MV, up to 52kV — the MV, up to 52kV variant
- Outdoor Surge Arrester, Station Low Class (SL) Class 2 - OCP2 — another model in the Outdoor Station Class Surge Arresters range
- Outdoor Surge Arrester, Station Low Class (SL) Class 2 - PAA — another model in the Outdoor Station Class Surge Arresters range
Frequently Asked Questions
How do I select the right surge arrester rating?
Start from the system voltage and earthing arrangement to fix the continuous operating voltage (MCOV), then choose the rated voltage above it, then confirm the line discharge class and energy capability for the duty. The ordering table lists the rating and discharge class against each part code.
Which standards does this product conform to?
It is manufactured and tested to IEC 60099-4. Test certificates can be supplied with the order on request.
What does Outdoor Surge Arrester, Station Medium Class (SM) Class 3 - PCA - HV, 66-220kV cost?
List prices run from Rs 92,480 to Rs 341,940 per unit, effective 01-04-2026, exclusive of GST, freight and installation. Project quantities are quoted against the list.
What is the lead time and is it available from stock?
Fast-moving part codes are usually available from stock in Bhilai and Raipur; the rest are called off against Raychem RPG lead times. Call +91 7300249139 or email support@jaient.in with the part code and quantity and we will confirm availability the same working day.
Who supplies Outdoor Surge Arrester, Station Medium Class (SM) Class 3 - PCA - HV, 66-220kV in India?
Jai Enterprises is a Raychem RPG distributor supplying Outdoor Station Class Surge Arresters across India from Bhilai and Raipur, Chhattisgarh. We support selection, pricing and documentation — call +91 7300249139 or email support@jaient.in.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 11.
