Polycab Green Wire 4 sq mm HR FR-LSH LF House Wire – 180 m Pouch, 85 °C

Polycab Green Wire 4 sq mm is a single-core HR FR-LSH LF copper house wire to IS 694:2010, voltage grade 1100 V, rated 85 °C: 56/0.31 strands (no./mm), about 3.95 mm overall, 4.95 ohm/km, 31.2 A in conduit or 34.8 A clipped direct, supplied in a 180 m pouch at MRP Rs 30,000 (polycab.com, October 2026). It is the HR FR-LSH LF Green Wire construction in a 180 m pouch for contractors and large sites: low smoke, low halogen, lead free and heat resistant to 85 °C.

The 4 sq mm size is the usual choice for air conditioners, geysers, kitchen power points and sub-mains. Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Jai Enterprises stocks Polycab Green Wire 4 sq mm in Bhilai and Raipur and supplies it all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• The circuit current is within 31.2 A enclosed in conduit or 34.8 A clipped direct (catalogue ratings for two cables in single phase, 40 °C ambient).
• You are wiring air conditioners, geysers, kitchen power points and sub-mains.
• You are wiring a large site and want 180 m packs of the 85 °C low-smoke Green Wire construction.
• A 180 m pouch suits the job (the same construction is also sold in 90 m coils).
• If the load does not fit: for a lighter circuit, Polycab Green Wire 2.5 sq mm (22 A in conduit); for a heavier one, Polycab Green Wire 6 sq mm (37.2 A).

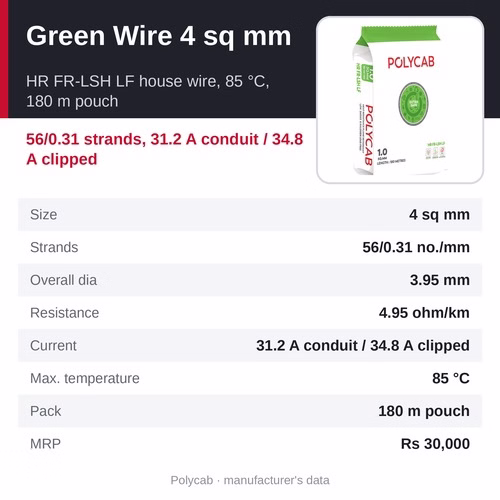

At a glance

• MRP: Rs 30,000 per 180 m pouch (inclusive of taxes, polycab.com, Oct 2026)
• Product: Polycab Green Wire 180 m 4 sq mm
• Type: Single core HR FR-LSH LF unsheathed cable, 1100 V, IS 694:2010 - 180 m pouch packaging
• Nominal area: 4 sq mm
• Conductor: 56/0.31 strands (no./mm), bright annealed electrolytic bare copper (99.97 % purity per Polycab)
• Insulation: HR FR-LSH LF PVC, 0.8 mm nominal
• Overall diameter: approx. 3.95 mm
• Max. DC resistance: 4.95 ohm/km at 20 °C
• Current rating: 31.2 A in conduit (Method B) / 34.8 A clipped direct (Method C) - 2 cables, single phase, 40 °C
• Max. operating temperature: 85 °C
• Standard: IS 694:2010; RoHS and REACH compliant
• Pack: 180 m pouch
• Colours: yellow, red, blue, green and black

Specifications

• Construction: PVC insulated single core unsheathed industrial (multistrand) cable - heat resistant, flame retardant, low smoke, low halogen, lead free - conforming to IS 694:2010, with bright annealed electrolytic bare copper conductor, voltage grade 1100 V
• Voltage grade: 1100 V
• Standard: IS 694:2010
• Nominal cross-section: 4 sq mm
• Number and diameter of strands: 56/0.31 (no./mm)
• Insulation thickness (nominal): 0.8 mm
• Overall diameter (approx.): 3.95 mm
• Max. conductor resistance at 20 °C: 4.95 ohm/km
• Current carrying capacity, Method B (enclosed in conduit): 31.2 A
• Current carrying capacity, Method C (clipped direct): 34.8 A
• Ratings basis: 2 cables in single phase, ambient 40 °C
• Max. operating temperature: 85 °C
• Features: low smoke during extreme fires, 20 % higher heat resistance (85 °C), low toxic fumes, lead-free PVC insulation, high abrasion resistance, rodent protection, FLAMESTOP technology, REACH compliant, RoHS compliant, 99.97 % high-purity copper
• Pack: 180 m pouch
• MRP: Rs 30,000 per 180 m pouch (polycab.com, Oct 2026; selling price on enquiry)

Why choose Polycab Green Wire 180 m

• 180 m pouch - double the standard 90 m coil, so fewer joints and fewer pack changes on large sites
• HR FR-LSH LF insulation - heat resistant to 85 °C, flame retardant, low smoke and low halogen, lead free
• FLAMESTOP technology, rodent protection and high abrasion resistance
• 99.97 % high-purity copper, RoHS and REACH compliant
• Same construction table as Polycab Green Wire (strands, resistance and current ratings)

Which size for which circuit?

1 sq mm (12.7 A in conduit) - lighting points and switch drops - 1 sq mm details and MRP.

1.5 sq mm (16.2 A in conduit) - lighting and fan circuits - 1.5 sq mm details and MRP.

2.5 sq mm (22 A in conduit) - 6 A and 16 A socket circuits - 2.5 sq mm details and MRP.

4 sq mm (31.2 A in conduit) - air conditioners, geysers and kitchen power points (this page).

6 sq mm (37.2 A in conduit) - mains from the meter to the distribution board and heavy appliance circuits - 6 sq mm details and MRP.

Ratings are the catalogue values for two cables in single phase at 40 °C ambient; size the circuit to the load and the protective device, and keep the voltage drop within limits on long runs.

Where it is used

• Larger air conditioners on dedicated circuits
• Geysers, kitchen power and heavy appliance points
• Sub-mains to floor and room distribution boards
• Workshops and small industrial sheds

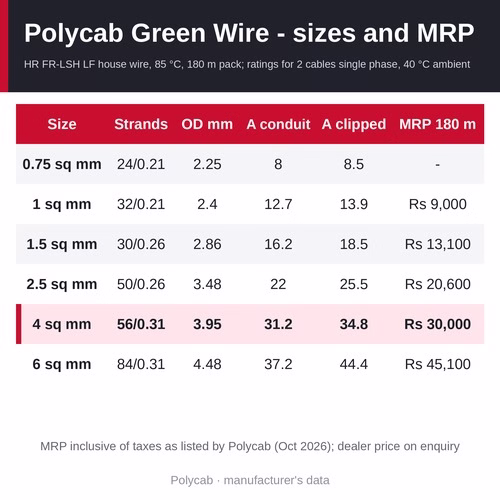

Other sizes of Polycab Green Wire (180 m pouch)

The Polycab Green Wire 180 m overview page compares all 6 side by side.

• Polycab Green Wire 0.75 sq mm - 24/0.21 strands, 8 A in conduit / 8.5 A clipped, MRP on request
• Polycab Green Wire 1 sq mm - 32/0.21 strands, 12.7 A in conduit / 13.9 A clipped, MRP Rs 9,000
• Polycab Green Wire 1.5 sq mm - 30/0.26 strands, 16.2 A in conduit / 18.5 A clipped, MRP Rs 13,100
• Polycab Green Wire 2.5 sq mm - 50/0.26 strands, 22 A in conduit / 25.5 A clipped, MRP Rs 20,600
• Polycab Green Wire 4 sq mm (this page) - 56/0.31 strands, 31.2 A in conduit / 34.8 A clipped, MRP Rs 30,000
• Polycab Green Wire 6 sq mm - 84/0.31 strands, 37.2 A in conduit / 44.4 A clipped, MRP Rs 45,100

Related products

• Polycab Green Wire+ 4 sq mm - HR FR-LSH LF, 85 °C, 31.2 A in conduit, 90 m coil, MRP Rs 15,000
• Polycab Suprema 4 sq mm - E-Beam HR FR LF, 105 °C, 45 A in conduit, 90 m coil, MRP Rs 14,100
• Polycab Optima+ 4 sq mm - LF FR, 70 °C, 26 A in conduit, 90 m coil, MRP Rs 14,200
• Polycab Primma 4 sq mm - LF FR, 70 °C, 26 A in conduit, 90 m coil, MRP Rs 14,100
• Etira by Polycab 4 sq mm - FR, 70 °C, 26 A in conduit, 90 m coil, MRP Rs 13,200
• Polycab LF FR 4 sq mm - LF FR, 70 °C, 26 A in conduit, 180 m pouch, MRP Rs 28,400
• All house wires and flexible cables

Frequently asked questions

What is the MRP of Polycab Green Wire 4 sq mm?

Rs 30,000 per 180 m pouch - the MRP listed on polycab.com in October 2026, inclusive of taxes. Our selling price is quoted on enquiry: call +91 9340081159.

How much current can Polycab Green Wire 4 sq mm carry?

31.2 A enclosed in conduit (Reference Method B) and 34.8 A clipped direct (Method C), for two cables in single phase at 40 °C ambient, per the Polycab catalogue. Derate for higher ambient temperatures and for groups of circuits in one conduit.

What is the construction of Polycab Green Wire 4 sq mm?

56/0.31 strands (number/diameter in mm) of bright annealed electrolytic copper, HR FR-LSH LF PVC insulation 0.8 mm thick, overall diameter about 3.95 mm, maximum conductor resistance 4.95 ohm/km at 20 °C.

What is 4 sq mm wire used for at home?

Dedicated circuits for larger air conditioners and geysers, kitchen power points and the sub-main from the main distribution board to a floor or room board. It is the step between the 2.5 sq mm socket wire and the 6 sq mm mains wire.

What does HR FR-LSH LF mean?

Heat Resistant (85 °C), Flame Retardant, Low Smoke and low Halogen, Lead Free - the same insulation as Polycab Green Wire, in a 180 m pouch.

Is Polycab Green Wire 4 sq mm a genuine Polycab product?

Yes - Jai Enterprises supplies factory-sealed Polycab pouchs from its Bhilai and Raipur stock, to every district of Chhattisgarh and across India.

Where can I buy Polycab Green Wire 4 sq mm in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab wires and cables across Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the size, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The MRP of Polycab Green Wire 4 sq mm is Rs 30,000 per 180 m pouch; our selling price is quoted on enquiry. Call +91 9340081159 or send an enquiry from this page with the colour, number of pouchs and delivery location, and we will confirm the price, stock and lead time.
