Ralli Wolf NW10 Heavy Duty Drill (Metal Body) – 31 mm, 850 W, 280 rpm, Highest Torque

The Ralli Wolf NW10 has the highest torque load capacity of Ralli Wolf's metal-body drills: it drills holes up to 31 mm in steel with an 850 W motor geared to 280 rpm. It gives its best output on a magnetic stand and also fits the ES3 bench drill stand. The body is aluminium die-cast and it weighs about 10 kg.

At a glance

• Capacity: 31 mm
• Power: 850 W
• Speed: 280 rpm
• Stand: magnetic / ES3
• Weight: 10 kg

Why choose the NW10

• Highest torque load capacity in the range — 31 mm holes
• Best output on a magnetic stand; also fits the ES3 bench drill stand
• Aluminium die-cast body
• Ralli Wolf — an Indian power-tool maker with more than 60 years in the trade. Ralli Wolf Industries Ltd. began in technical collaboration with Wolf of the UK, makes its tools at an ISO 9001:2015 certified plant in MIDC Ahmednagar, Maharashtra, and backs them with more than 30 service locations across India.

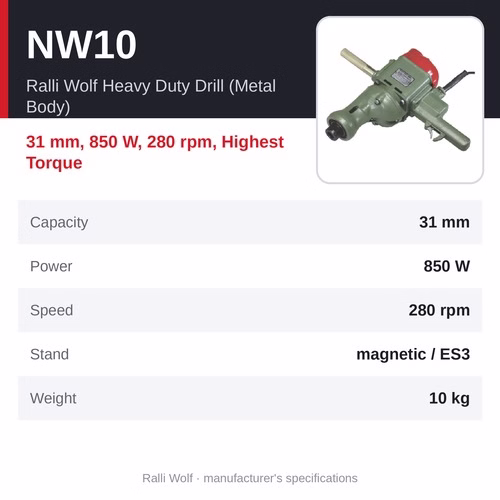

Specifications

• Model: NW10
• Product: Ralli Wolf Heavy Duty Drill (Metal Body)
• Capacity: 31 mm
• Rated power: 850 W
• No-load speed: 280 rpm
• Body: aluminium die-cast
• Net weight: 10 kg (approx.)
• Brand: Ralli Wolf (Ralli Wolf Industries Ltd., India)

Why a metal-body drill

Ralli Wolf's industrial drills have aluminium die-cast bodies built for production work: they keep their alignment, shrug off heat and knocks, and many can be mounted on a magnetic or bench stand. Choose the capacity for the largest hole you drill in steel, and a lower speed for larger holes.

Where it is used

• Production lines and assembly shops
• Fabrication, structural and maintenance work
• Foundries and heavy engineering

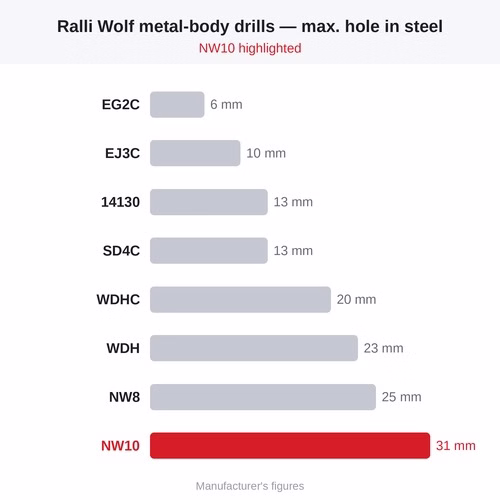

Which Ralli Wolf industrial drill is right for you?

• SD4C — 13 mm, 435 W, 700 rpm, Al Die-Cast
• EG2C — 6 mm, 235 W, 2800 rpm, Al Die-Cast
• EJ3C — 10 mm, 235 W, 700 rpm, Al Die-Cast
• WDH — 13–23 mm, 595 W, 560 rpm, Al Die-Cast
• WDHC — 20 mm, 1200 W, 450 rpm, Chuck Type
• NW8 — 25 mm, 660 W, 380 rpm, High Torque
• NW10 (this page) — 31 mm, 850 W, 280 rpm, Highest Torque
• 14130 — 13 mm, 750 W, 750 rpm, Assembly-Line Drill
• See all Ralli Wolf industrial drills

Related products

• Ralli Wolf magnetic core drills
• Ralli Wolf drills, drivers and impact wrenches
• Ralli Wolf die, straight and bench grinders

Frequently asked questions

Which should I choose — the NW10 or the NW8?

Choose the NW10 for holes up to 31 mm (850 W, 280 rpm); the Ralli Wolf NW8 drills holes up to 25 mm with 660 W at 380 rpm.

What is the drilling capacity of the NW10?

31 mm in steel, at 280 rpm.

Can the NW10 be used on a magnetic stand?

Yes — Ralli Wolf lists it for use on a magnetic stand, which gives accurate, square holes on steel work that cannot be moved.

What is the price of the Ralli Wolf NW10, and where can I buy it?

Prices depend on quantity and current Ralli Wolf pricing, so they are quoted on request. Jai Enterprises supplies Ralli Wolf tools from Bhilai and Raipur, Chhattisgarh, to sites across India — call +91 9340081159 or send an enquiry from this page with the quantity and delivery location.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
