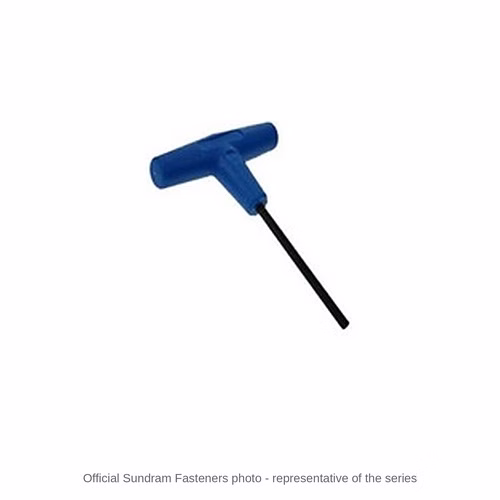

TVS T Handle Socket Keys, inch standard length – hexagon sizes 1/16" to 3/8", hardened steel (50 HRC)

TVS Sundram Fasteners T Handle Socket Keys, inch standard length are hexagon keys with a T-shaped handle, made by Sundram Fasteners Limited to its own standard, in inch hexagon sizes 1/16" to 3/8", hardened to 50 HRC, supplied in zinc phosphate finish. The handle lets the user spin the key fast with the fingers and then apply torque with the whole hand, which speeds up assembly lines and maintenance work with socket screws.

SFL's retail price list of October 2026 gives recommended retail list prices from Rs 3,980 to Rs 10,295 per 100 pieces across the listed sizes; the exact price for your sizes and length series is confirmed on enquiry.

Jai Enterprises is an authorised distributor of TVS Sundram Fasteners high tensile fasteners and supplies them from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• Your screws have inch hexagon sockets; the key size must match the socket exactly - a loose key rounds the socket.
• The sizes you need are within hexagon sizes 1/16" to 3/8".
• Standard length suits you: compact, strong, and the usual choice for toolkits and maintenance.
• You want speed and grip on repetitive work - the T handle spins fast and gives a full-hand hold for the final torque.

List prices (SFL, 1 October 2026)

Prices are SFL's recommended retail list prices effective 1 October 2026, in rupees per 100 pieces, for the zinc phosphate finish. A few sizes are shown; ask us for any other size in the range. 3/8" is not on the list and is quoted on enquiry.

• 1/16 inch T handle key, standard: Rs 3,980 per 100 pieces
• 3/32 inch T handle key, standard: Rs 3,980 per 100 pieces
• 1/8 inch T handle key, standard: Rs 3,980 per 100 pieces
• 3/16 inch T handle key, standard: Rs 4,850 per 100 pieces
• 7/32 inch T handle key, standard: Rs 5,610 per 100 pieces
• 5/16 inch T handle key, standard: Rs 10,295 per 100 pieces
• Zinc phosphate finish; packed per box in 25 and 10 depending on size

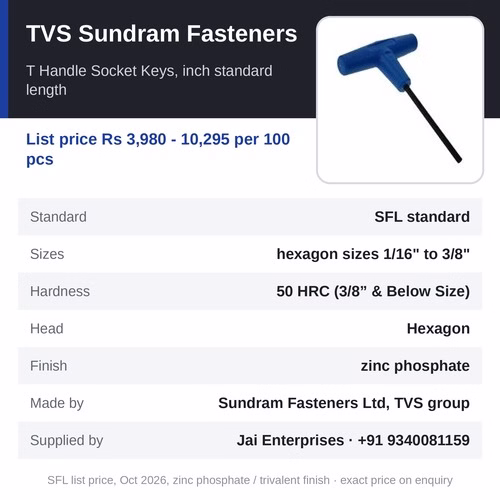

At a glance

• Brand: TVS Sundram Fasteners (Sundram Fasteners Limited, TVS group)
• Product: T Handle Socket Keys, inch standard length
• Standard: SFL standard
• Sizes: hexagon sizes 1/16" to 3/8"
• Type: hexagon key with T handle
• Hardness: 50 HRC
• Material: Steel
• Surface finish: zinc phosphate
• List price: Rs 3,980 - 10,295 per 100 pieces (SFL list, 1 October 2026); exact price on enquiry
• Supplied by: Jai Enterprises, Bhilai and Raipur - to every district of Chhattisgarh and across India, +91 9340081159

Specifications and dimensions

• Standard: SFL standard
• Material: steel, hardened and tempered
• Hardness: 50 HRC
• Surface finish options: zinc phosphate
• Dimension letters: A, B and C are the key lengths, D the handle width and E and F the handle diameters, as lettered on SFL's drawing of the T handle key
• 1/16": key across flats 1.56 to 1.58 mm; A 53.6 mm, B 18.6 mm, C 38.6 mm, D 57.0 mm, E 15.0 mm, F 11.0 mm
• 5/64": key across flats 1.95 to 1.98 mm; A 57.1 mm, B 22.1 mm, C 42.1 mm, D 57.0 mm, E 15.0 mm, F 11.0 mm
• 3/32": key across flats 2.35 to 2.37 mm; A 60.6 mm, B 25.6 mm, C 45.6 mm, D 57.0 mm, E 15.0 mm, F 11.0 mm
• 1/8": key across flats 3.13 to 3.17 mm; A 67.8 mm, B 23.8 mm, C 49.0 mm, D 76.0 mm, E 18.0 mm, F 14.0 mm
• 5/32": key across flats 3.92 to 3.96 mm; A 74.5 mm, B 30.5 mm, C 56.5 mm, D 76.0 mm, E 18.0 mm, F 14.0 mm
• 3/16": key across flats 4.72 to 4.76 mm; A 81.3 mm, B 37.3 mm, C 63.3 mm, D 76.0 mm, E 18.0 mm, F 14.0 mm
• 7/32": key across flats 5.51 to 5.55 mm; A 88.0 mm, B 44.0 mm, C 70.0 mm, D 76.0 mm, E 18.0 mm, F 14.0 mm
• 1/4": key across flats 6.31 to 6.35 mm; A 94.8 mm, B 50.8 mm, C 76.8 mm, D 97.0 mm, E 24.0 mm, F 19.0 mm
• 5/16": key across flats 7.89 to 7.93 mm; A 111.3 mm, B 53.3 mm, C 87.3 mm, D 97.0 mm, E 24.0 mm, F 19.0 mm
• 3/8": key across flats 9.48 to 9.52 mm; A 124.8 mm, B 66.8 mm, C 100.8 mm, D 97.0 mm, E 24.0 mm, F 19.0 mm
• Note: the size is stamped on the plastic T handle; metric keys have a red handle and inch keys a blue one
• Source: SFL's technical product catalogue (September 2026 edition) and SFL's digital product catalogue; dimensions in mm

Why choose TVS Sundram Fasteners

• Made by Sundram Fasteners Limited, a TVS group company making high tensile fasteners since 1966: first Indian company with ISO 9000, IATF 16949:2016 certified, Deming Prize 2018 for 17 plants.
• Every lot is backed by a BIS, NABL and ISO/IEC 17025 certified laboratory - tensile, fatigue, torque-tension, salt spray and coating thickness testing - as described in SFL's technical product catalogue (September 2026 edition).
• Made to SFL's own standard, with every dimension published in SFL's technical catalogue.
• Hardened and accurately sized hexagon, so the key fills the socket and does not round it.

How to choose and fit

1. Choose the key by the socket size of the screw, not by the screw diameter; the screw tables on this site list the key size for each diameter.
2. Push the blade fully into the socket before turning - a partly inserted key rounds the socket.
3. Spin the handle with the fingers to run the screw down, then take the full-hand grip on the T for the final torque; do not extend the handle.

Where it is used

• assembly lines with many socket screws
• maintenance and service work
• workshops and tool rooms

Other versions and series

• TVS Sundram Fasteners T Handle Socket Keys, metric standard length - hexagon sizes 1.5 to 10 mm, list price Rs 3,980 - 11,265 per 100
• TVS Sundram Fasteners T Handle Socket Keys, metric long length - hexagon sizes 1.5 to 10 mm, list price Rs 5,275 - 14,535 per 100
• TVS Sundram Fasteners T Handle Socket Keys, inch long length - hexagon sizes 1/16" to 5/16", list price Rs 5,275 - 10,970 per 100

Related products

• TVS Sundram Fasteners Socket Head Cap Screws, inch UNC/UNF - the screws these keys drive
• TVS Sundram Fasteners Socket Set Screws, knurled cup point, BSW - set screws with the same sockets

Frequently asked questions

What is the price of T Handle Socket Keys, inch standard length?

SFL's recommended retail list price effective 1 October 2026 runs from Rs 3,980 to Rs 10,295 per 100 pieces across the listed sizes, for the zinc phosphate finish. The examples above show typical sizes. Call Jai Enterprises on +91 9340081159 with your sizes, grade, finish and quantity for the exact price; key sets and other finishes are quoted on enquiry.

What is the difference between standard and long keys?

Both have the same hexagon and handle; the long version has a longer blade for reach into deep counterbores. The dimensions are in the table above.

Are sets available?

Yes. SFL lists hex socket key sets for the metric and the inch series; ask us for the set price.

Are TVS T Handle Socket Keys, inch standard length available in Chhattisgarh?

Yes. Jai Enterprises, an authorised distributor of TVS Sundram Fasteners, supplies from Bhilai and Raipur all over Chhattisgarh and across India. Call +91 9340081159 or use the enquiry form.

Can I get a different finish or a non-listed size?

Yes. The standard finish is zinc phosphate; other finishes and sizes or lengths outside the list are quoted on enquiry from SFL.

How to order

Call Jai Enterprises on +91 9340081159 or send an enquiry with the sizes, length series and quantity of T Handle Socket Keys, inch standard length you need. SFL's list price is Rs 3,980 - 10,295 per 100 pieces across the listed sizes (SFL list, 1 October 2026); the exact price is confirmed on enquiry. We supply from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.
