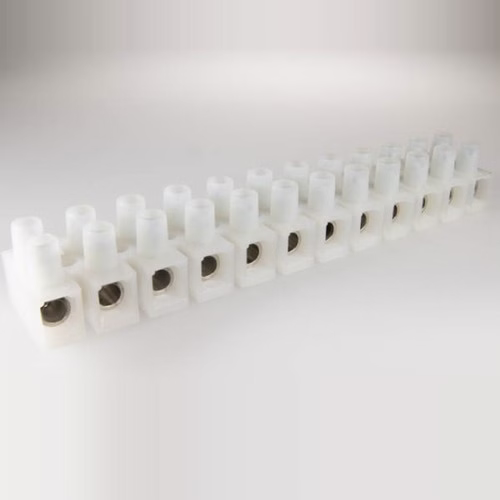

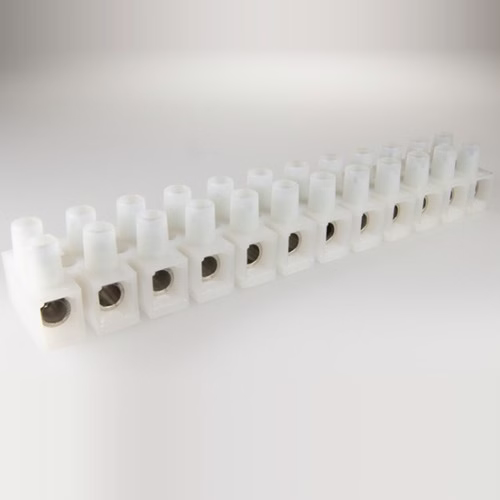

12-Pole Screw Terminal Strip with Wire Protector, 16 sq mm, 76 A - Adels-Contact 2000/12 DS (128312)

12 poles, 16 mm² rated (clamps 0.5-22.0 mm²), 76 A, 500 V. Adels-Contact 2000/12 DS is a 12-pole screw terminal strip with a wire protector: each screw presses on a protector plate rather than on the conductor, so fine-stranded, stranded and solid wires are all clamped safely. Order number 128312, packed 20 to a unit - price on request.

Adels-Contact is a German specialist in connecting technology for lighting and building installation: terminal blocks, screwless connectors and pluggable connector systems. The pole pitch is 14.5 mm, and the strip is approved to EN 60998, UL and CSA.

Is this the right one for you?

Check these four things before you order:

• Your conductors are 0.5-22.0 mm² (14-6 AWG) - fine-stranded, stranded or solid.
• The circuit is within 76 A and 500 V.
• A pole pitch of 14.5 mm suits the space.
• The ambient temperature at rated current stays below 85 °C.

At a glance

• Price: Request price
• Order number: 128312
• Poles: 12
• Rated cross-section: 16 mm²
• Clamping range: 0.5-22.0 mm² (14-6 AWG)
• Rating: 76 A, 500 V
• Pole pitch: 14.5 mm
• Packing unit: 20

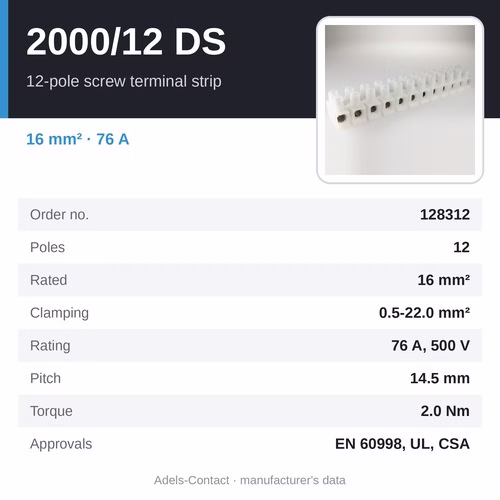

Specifications

• Product: Adels-Contact 2000/12 DS
• Order number: 128312
• Poles: 12
• Rated voltage: 500 V
• Rated current: 76 A
• Rated cross-section: 16 mm²
• Clamping range: 0.5-22.0 mm²
• UL wire range: 14-6 AWG
• Stripping length: 10.0-10.5 mm
• Tightening torque: 2.0 Nm
• Screwdriver blade: 1.0 x 5.5 mm
• Pole pitch: 14.5 mm
• Packing unit: 20
• Conductors: fine-stranded, stranded or solid
• Maximum ambient temperature: 85 °C at rated current
• Minimum temperature: -40 °C
• Component temperature: up to 105 °C
• Insulating body: polyamide (PA), UL94 V-2
• Clamp: brass, with wire protector
• Approvals: EN 60998; UL; CSA
• Accessories: strain relief ZEL 110 (order no. 196420); marking strips

Why choose the DS strip

• Wire protector - the screw presses on a protector plate, not directly on the conductor, so fine-stranded wire is not damaged
• Takes fine-stranded, stranded or solid conductors
• UL and CSA approved, built to EN 60998
• Rated at 85 °C ambient; components rated to 105 °C, down to -40 °C
• 12 poles in one strip, with marking strips and a strain relief available

How it is wired

1. Fix the strip in place in the panel, luminaire or enclosure.
2. Strip each conductor to the length given for the strip and insert it under the wire protector.
3. Tighten the clamping screw to the stated torque with a suitable screwdriver.

Where it is used

• Control panels and distribution boards
• Luminaires and lighting equipment
• Machines and equipment wiring
• Building installation and junctions

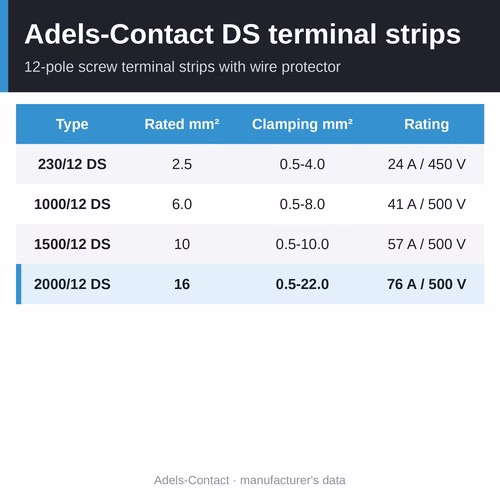

Other sizes and versions

The Adels-Contact DS terminal strips overview page compares all 4 side by side.

• Adels-Contact 230/12 DS - 12 poles, 2.5 mm² rated, 0.5-4.0 mm² clamping, 24 A, 450 V - price on request
• Adels-Contact 1000/12 DS - 12 poles, 6.0 mm² rated, 0.5-8.0 mm² clamping, 41 A, 500 V - price on request
• Adels-Contact 1500/12 DS - 12 poles, 10 mm² rated, 0.5-10.0 mm² clamping, 57 A, 500 V - price on request
• Adels-Contact 2000/12 DS - 12 poles, 16 mm² rated, 0.5-22.0 mm² clamping, 76 A, 500 V - price on request (this page)

Related products

• Adels-Contact AC 166 G - pluggable installation system: plugs, sockets and distributors
• All Adels-Contact terminal blocks and connectors
• All electrical connectors

Frequently asked questions

Which wires fit Adels-Contact 2000/12 DS?

Fine-stranded, stranded or solid conductors of 0.5-22.0 mm² (14-6 AWG); the rated cross-section is 16 mm².

What does the wire protector do?

It sits between the screw and the conductor, so the screw presses on the protector plate instead of cutting into the wire - important with fine-stranded conductors.

What current and voltage is it rated for?

76 A and 500 V, at an ambient temperature of up to 85 °C.

Is it UL approved?

Yes - the DS strips carry UL and CSA approvals as well as EN 60998.

Where can I buy Adels-Contact 2000/12 DS in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Adels-Contact connectors and terminal strips across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price for Adels-Contact 2000/12 DS (order no. 128312), call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm availability, lead time and the right terminal strip for the job.
