AC 166 Panel-Mount Plug, 3-Pole, 20 A 250 V - Adels-Contact AC 166 GEST/3 SW (168763)

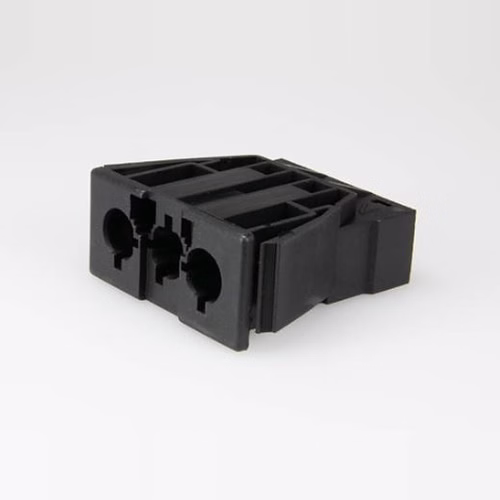

3 poles, 20 A, 250 V. Adels-Contact AC 166 GEST/3 SW is a panel-mount plug (device plug) that clips into a cut-out in a luminaire or equipment wall, part of Adels-Contact's AC 166 G pluggable installation system - coded against mis-plugging, with PE function. Order number 168763 - price on request.

Adels-Contact is a German specialist in connecting technology for lighting and building installation: terminal blocks, screwless connectors and pluggable connector systems. With AC 166, lighting and building circuits are pre-wired and simply plugged together on site; Adels-Contact quotes savings of up to 70 % in installation time.

Is this the right one for you?

Check these five things before you order:

• You are wiring a 3-pole AC 166 circuit (black SW coding is for mains).
• The panel wall is 0.5-1.2 mm thick, and the conductors are solid 0.5-2.5 mm².
• The circuit is within 20 A and 250 V.
• The installation is indoors and dry - AC 166 is IP20 unplugged and IP40 plugged.
• You will connect and disconnect only without load, and fit locking pins where the connection is accessible.

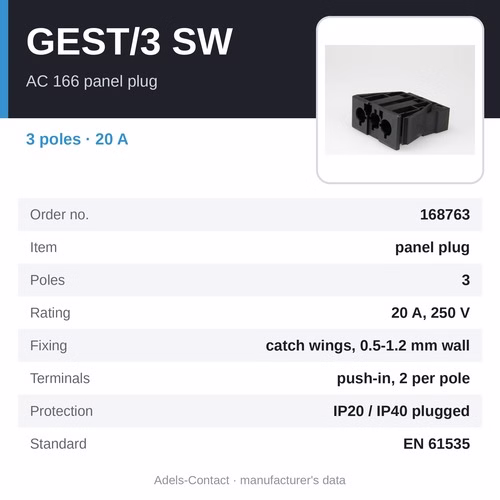

At a glance

• Price: Request price
• Order number: 168763
• Type: AC 166 GEST/3 SW
• Item: panel plug
• Poles: 3
• Rating: 20 A, 250 V
• Fixing: catch wings, in a wall 0.5-1.2 mm thick
• Terminals: push-in, 2 clamping units per pole
• Degree of protection: IP20 unplugged; IP40 plugged

Specifications

• Product: Adels-Contact AC 166 GEST/3 SW
• Order number: 168763
• Item: panel plug
• Poles: 3
• Rated voltage: 250 V
• Fixing: catch wings, in a wall 0.5-1.2 mm thick
• Terminals: push-in, 2 clamping units per pole
• Conductors: solid 0.5-2.5 mm² (UL 14-18 AWG)
• Stripping length: 8-9 mm
• Latch: AC 166 VSE SW (order no. 169463)
• System: AC 166 G pluggable installation system
• Coding: coded against mis-plugging; SW = black coding (mains)
• Protective earth: with PE function
• Rated voltage: 250 V (UL 600 V); 5-pole items 250/400 V where stated
• Rated current: 20 A (UL 16 A)
• Rated impulse voltage: 4 kV
• Ambient temperature: up to 70 °C
• Component temperature: -20 °C to +110 °C
• Degree of protection: IP20 unplugged; IP40 plugged
• Material: polyamide (PA), UL94 V-2, halogen-free
• Standard: EN 61535 (installation couplers)

Why choose AC 166

• Plug-together wiring - pre-wired plugs, sockets and distributors replace site-made junctions
• Coded against mis-plugging, with colour coding for mains, control, DALI and other circuits
• PE function - the earth connects first and disconnects last
• 20 A, 250 V (UL 600 V / 16 A); 4 kV rated impulse voltage
• Halogen-free polyamide, UL94 V-2
• Built to EN 61535 for installation couplers
• Adels-Contact quotes savings of up to 70 % in installation time and 30 % in cost compared with conventional wiring

How it is installed

1. Clip the plug into a cut-out in a wall 0.5-1.2 mm thick - the catch wings hold it.
2. Push the stripped solid conductors (8-9 mm) into the push-in terminals - two clamping units per pole allow through-wiring.
3. Connect an AC 166 cable socket with the same pole count and coding.
4. Connect and disconnect only when there is no load on the circuit.

Where it is used

• Lighting installations in offices, shops, schools and hospitals
• Connecting luminaires in suspended ceilings
• Pre-wired lighting and trunking systems
• Modular buildings and fit-outs
• Luminaire and equipment makers fitting panel-mount sockets

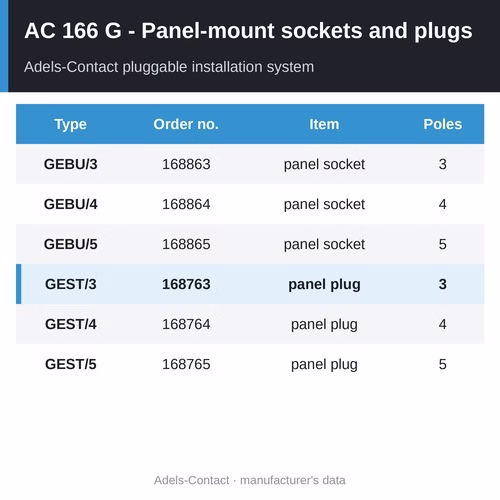

Other sizes and versions

The Adels-Contact AC 166 G overview page compares all 18 side by side.

• Adels-Contact AC 166 GEBU/3 SW - 3-pole panel socket - price on request
• Adels-Contact AC 166 GEBU/4 SW - 4-pole panel socket - price on request
• Adels-Contact AC 166 GEBU/5 SW - 5-pole panel socket - price on request
• Adels-Contact AC 166 GEST/3 SW - 3-pole panel plug - price on request (this page)
• Adels-Contact AC 166 GEST/4 SW - 4-pole panel plug - price on request
• Adels-Contact AC 166 GEST/5 SW - 5-pole panel plug - price on request
• Adels-Contact AC 166 GBUF/315 SW - 3-pole cable socket, cable sheath 7.5-8.5 mm - price on request
• Adels-Contact AC 166 GBUF/415 SW - 4-pole cable socket, cable sheath 8.4-9.4 mm - price on request
• Adels-Contact AC 166 GBUF/515 SW - 5-pole cable socket, cable sheath 9.3-10.3 mm - price on request
• Adels-Contact AC 166 GSTF/315 SW - 3-pole cable plug, cable sheath 7.5-8.5 mm - price on request
• Adels-Contact AC 166 GSTF/415 SW - 4-pole cable plug, cable sheath 8.4-9.4 mm - price on request
• Adels-Contact AC 166 GSTF/515 SW - 5-pole cable plug, cable sheath 9.3-10.3 mm - price on request
• Adels-Contact AC 166 GVTA 3/3 SW - 3-pole T distributor, 1 in, 2 out - price on request
• Adels-Contact AC 166 GVT 3/4 SW - 4-pole T distributor, 1 in, 2 out - price on request
• Adels-Contact AC 166 GVT 3/5 SW - 5-pole T distributor, 1 in, 2 out - price on request
• Adels-Contact AC 166 GVH 4/3 SW BL - 3-pole H distributor, 1 in, 3 out - price on request
• Adels-Contact AC 166 GVT 4/4 SW - 4-pole distributor, 1 in, 3 out - price on request
• Adels-Contact AC 166 GVT 4/5 SW - 5-pole distributor, 1 in, 3 out - price on request
