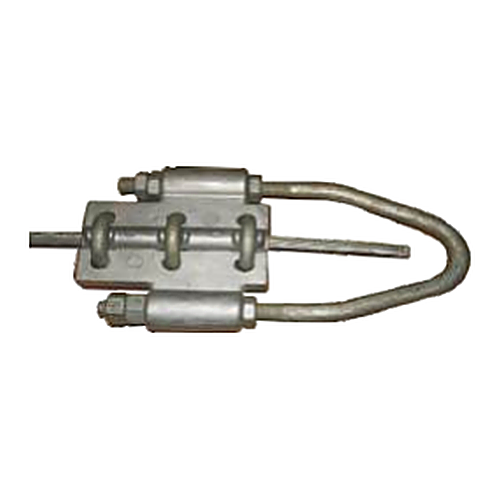

Anchor Clamp for LV ABC
Raychem RPG Anchor Clamps for LV ABC. 6 part codes, Rs 320 - 1,610 per unit.
Rs 320 - 1,610
Anchor Clamp for LV ABC is an Anchor Clamps for LV ABC from Raychem RPG. It covers cable sizes 16 - 210 sq mm. 6 part codes, list price Rs 320 - 1,610 per unit, effective 01-04-2026, exclusive of taxes. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh - call +91 7300249139 or email support@jaient.in.
Anchor Clamp for LV ABC from the Raychem RPG Connectors & Fittings For LV ABC range.
Specifications
| Brand | Raychem RPG |
|---|---|
| Product range | Anchor Clamps for LV ABC |
| Cable size range | 16 - 210 sq mm |
| Conforms to | EN 50483-3, NFC 33 041 |
| Part codes listed | 6 |
| List price | Rs 320 - 1,610 per unit, effective 01-04-2026, exclusive of GST |
| Supplied by | Jai Enterprises, Bhilai and Raipur - across India |
Key Features
- Wedge type Conforms to EN 50483-3 and NFC 33-041 Standards
- Bolted type conforms to REC Specification
- Wedge type version offers tool free installation
- Clamp body made of corrosion resistant aluminium alloy, bail of stainless steel, wedges of weather and UV resistant polymer
Ordering Information
| Cable Range (sq. mm) | Part Code (PCN) | List Price (INR) |
|---|---|---|
| 25 - 50 | AJA4040548 | 1,350 |
| 25 - 70 | AJA4040208 | 1,240 |
| 70 - 95 | AJA4040185 | 1,610 |
| 16 - 50 | AJA4040269 | 320 |
| 16 - 70 | AJA4040010 | 460 |
| 70 - 210 | AJA4040009 | 1,260 |
Applications
Used in Commercial, Power and Network, Utility, Railways.
Related products
- Anchor Clamp for LV ABC Insulated Messenger — another model in the Anchor Clamps for LV ABC range
- Deep Drawn Box for LV ABC — also in Connectors & Fittings for LV ABC
- Suspension Clamp for LV ABC Insulated Messenger — also in Connectors & Fittings for LV ABC
Frequently Asked Questions
How do I choose the right Anchor Clamp for LV ABC for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 16 to 210 sq mm. Each size has its own part code; order the one whose range brackets your cable.
Which standards does this product conform to?
It is manufactured and tested to EN 50483-3, NFC 33-041. Test certificates can be supplied with the order on request.
What does Anchor Clamp for LV ABC cost?
List prices run from Rs 320 to Rs 1,610 per unit, effective 01-04-2026, exclusive of GST, freight and installation. Project quantities are quoted against the list.
What is the lead time and is it available from stock?
Fast-moving part codes are usually available from stock in Bhilai and Raipur; the rest are called off against Raychem RPG lead times. Call +91 7300249139 or email support@jaient.in with the part code and quantity and we will confirm availability the same working day.
Who supplies Anchor Clamp for LV ABC in India?
Jai Enterprises is a Raychem RPG distributor supplying Anchor Clamps for LV ABC across India from Bhilai and Raipur, Chhattisgarh. We support selection, pricing and documentation — call +91 7300249139 or email support@jaient.in.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 53.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
