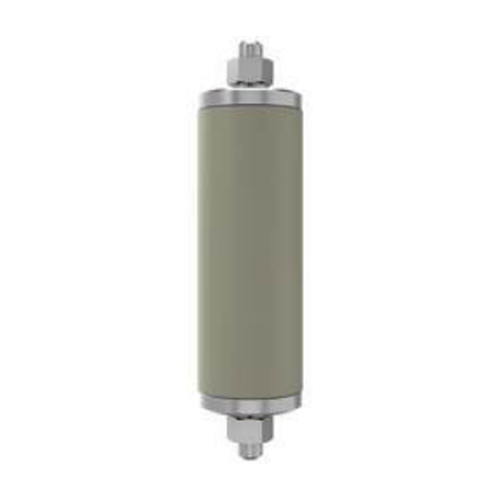

Indoor Surge Arrester, Distribution High Class (DH) Class 1 - DA1
Raychem RPG Indoor Distribution Class Surge Arresters. Indoor polymeric surge arrester, 3 kV to 15 kV, 10 kA, IEC 60099-4. 6 part codes, Rs 4,470 - 6,890 per unit.
Rs 4,470 - 6,890
Indoor Surge Arrester, Distribution High Class (DH) Class 1 - DA1 is an Indoor Distribution Class Surge Arrester from Raychem RPG. 6 part codes, list price Rs 4,470 - 6,890 per unit, effective 01-04-2026, exclusive of taxes. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh - call +91 7300249139 or email support@jaient.in.
DA1 is an indoor Distribution High Class (DH), Class 1 polymeric surge arrester conforming to IEC 60099-4, covering ratings from 3 kV to 15 kV at 10 kA. The direct moulded hydrophobic silicone housing prevents moisture ingress and resists tracking and erosion.
Specifications
| Brand | Raychem RPG |
|---|---|
| Product range | Indoor Distribution Class Surge Arresters |
| Model | DA1 |
| Conforms to | IEC 60099-4 |
| Part codes listed | 6 |
| List price | Rs 4,470 - 6,890 per unit, effective 01-04-2026, exclusive of GST |
| Supplied by | Jai Enterprises, Bhilai and Raipur - across India |
Key Features
- Conforms to IEC 60099-4
- Range from 3 kV to 15 kV
- Distribution High Class (DH) (Class 1)
- Low residual voltage
- Safe non-shattering short circuit behaviour to higher current levels
- Direct moulded housing to prevent moisture ingress
- Hydrophobic silicone housing (tracking and erosion resistant)
- Excellent cantilever and tensile performance
Ordering Information
| Rating | LD Class | Part Code (PCN) | List Price (INR) |
|---|---|---|---|
| 4kV, 10kA | Distribution | AJA1010380 | 4,470 |
| 6kV, 10kA | Distribution | AJA1010381 | 5,100 |
| 7.2kV, 10kA | Distribution | AJA1010440 | 5,200 |
| 10kV, 10kA | High (DH) (Class 1) | AJA1010382 | 5,600 |
| 12kV, 10kA | High (DH) (Class 1) | AJA1010377 | 6,090 |
| 15kV, 10kA | High (DH) (Class 1) | AJA1010378 | 6,890 |
Applications
Used in Power and Network, Utility, Oil and Gas Petrochemical, Railways, Automation and Process Control, Cement Industry, Metal Industry.
Related products
- Indoor Surge Arrester, Station Low Class (SL) Class 2 - MCPA2 — also in MV Surge Arresters upto 52kV
- Indoor Surge Arrester, Station Medium Class (SM) Class 3 - PCA — also in MV Surge Arresters upto 52kV
- Outdoor Surge Arrester, Distribution High Class (DH) Class 1 - DOV — also in MV Surge Arresters upto 52kV
Frequently Asked Questions
How do I select the right surge arrester rating?
Start from the system voltage and earthing arrangement to fix the continuous operating voltage (MCOV), then choose the rated voltage above it, then confirm the line discharge class and energy capability for the duty. The ordering table lists the rating and discharge class against each part code.
Why is the indoor arrester shaped differently?
Indoor arresters have a plain housing because they are not exposed to rain or pollution. Outdoor units carry sheds to extend the creepage path. Fitting an indoor unit outdoors will shorten its life — the two are separate part codes.
Which standards does this product conform to?
It is manufactured and tested to IEC 60099-4. Test certificates can be supplied with the order on request.
What does Indoor Surge Arrester, Distribution High Class (DH) Class 1 - DA1 cost?
List prices run from Rs 4,470 to Rs 6,890 per unit, effective 01-04-2026, exclusive of GST, freight and installation. Project quantities are quoted against the list.
What is the lead time and is it available from stock?
Fast-moving part codes are usually available from stock in Bhilai and Raipur; the rest are called off against Raychem RPG lead times. Call +91 7300249139 or email support@jaient.in with the part code and quantity and we will confirm availability the same working day.
Who supplies Indoor Surge Arrester, Distribution High Class (DH) Class 1 - DA1 in India?
Jai Enterprises is a Raychem RPG distributor supplying Indoor Distribution Class Surge Arresters across India from Bhilai and Raipur, Chhattisgarh. We support selection, pricing and documentation — call +91 7300249139 or email support@jaient.in.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 8.
