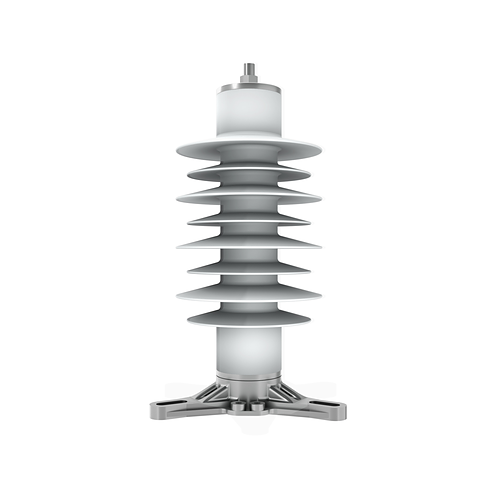

Outdoor Surge Arrester, Distribution High Class (DH) Class 1 - DOV
Raychem RPG Outdoor Distribution Class Surge Arresters. Outdoor polymeric surge arrester, 3 kV to 36 kV, 10 kA, with/without bracket & disconnector. 18 part codes, Rs 6,550 - 21,050 per unit.
Rs 6,550 - 21,050
Outdoor Surge Arrester, Distribution High Class (DH) Class 1 - DOV is an Outdoor Distribution Class Surge Arrester from Raychem RPG. 18 part codes, list price Rs 6,550 - 21,050 per unit, effective 01-04-2026, exclusive of taxes. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh - call +91 7300249139 or email support@jaient.in.
DOV is an outdoor Distribution High Class (DH), Class 1 polymeric surge arrester conforming to IEC 60099-4, covering ratings from 3 kV to 36 kV at 10 kA. Each rating is available as a bare arrester, with mounting bracket, or with bracket and disconnector.
Specifications
| Brand | Raychem RPG |
|---|---|
| Product range | Outdoor Distribution Class Surge Arresters |
| Model | DOV |
| Conforms to | IEC 60099-4 |
| Part codes listed | 18 |
| List price | Rs 6,550 - 21,050 per unit, effective 01-04-2026, exclusive of GST |
| Supplied by | Jai Enterprises, Bhilai and Raipur - across India |
Key Features
- Conforms to IEC 60099-4
- Range from 3 kV to 36 kV
- Distribution High Class (DH) (Class 1)
- Low residual voltage
- Safe non-shattering short circuit behaviour to higher current levels
- Direct moulded housing to prevent moisture ingress
- Hydrophobic silicone housing (tracking and erosion resistant)
- Excellent cantilever and tensile performance
Ordering Information
| Configuration | Rating | LD Class | Part Code (PCN) | List Price (INR) |
|---|---|---|---|---|
| Surge Arrester | 9kV, 10kA | Class DH | AJA1100206 | 6,550 |
| Surge Arrester with Bracket | 9kV, 10kA | Class DH | AJA1100240 | 8,080 |
| Surge Arrester with Bracket & Disconnector | 9kV, 10kA | Class DH | AJA1100241 | 8,760 |
| Surge Arrester | 12kV, 10kA | Class DH | AJA1100207 | 7,290 |
| Surge Arrester with Bracket | 12kV, 10kA | Class DH | AJA1100192 | 8,310 |
| Surge Arrester with Bracket & Disconnector | 12kV, 10kA | Class DH | AJA1100198 | 10,120 |
| Surge Arrester | 15kV, 10kA | Class DH | AJA1100242 | 9,580 |
| Surge Arrester with Bracket | 15kV, 10kA | Class DH | AJA1100243 | 9,390 |
| Surge Arrester with Bracket & Disconnector | 15kV, 10kA | Class DH | AJA1100244 | 14,790 |
| Surge Arrester | 18kV, 10kA | Class DH | AJA1100208 | 12,070 |
| Surge Arrester with Bracket | 18kV, 10kA | Class DH | AJA1100245 | 13,520 |
| Surge Arrester with Bracket & Disconnector | 18kV, 10kA | Class DH | AJA1100246 | 14,620 |
| Surge Arrester | 30kV, 10kA | Class DH | AJA1100209 | 15,300 |
| Surge Arrester with Bracket | 30kV, 10kA | Class DH | AJA1100247 | 17,770 |
| Surge Arrester with Bracket & Disconnector | 30kV, 10kA | Class DH | AJA1100248 | 20,060 |
| Surge Arrester | 36kV, 10kA | Class DH | AJA1100249 | 18,440 |
| Surge Arrester with Bracket | 36kV, 10kA | Class DH | AJA1100250 | 20,370 |
| Surge Arrester with Bracket & Disconnector | 36kV, 10kA | Class DH | AJA1100199 | 21,050 |
Applications
Used in Power and Network, Utility, Oil and Gas Petrochemical, Railways, Automation and Process Control, Cement Industry, Metal Industry.
Related products
- Outdoor Surge Arrester, Distribution Class - PSO — another model in the Outdoor Distribution Class Surge Arresters range
- Outdoor Surge Arrester, Distribution Medium Class (DM) - DA0 — another model in the Outdoor Distribution Class Surge Arresters range
- Indoor Surge Arrester, Distribution High Class (DH) Class 1 - DA1 — also in MV Surge Arresters upto 52kV
Frequently Asked Questions
How do I select the right surge arrester rating?
Start from the system voltage and earthing arrangement to fix the continuous operating voltage (MCOV), then choose the rated voltage above it, then confirm the line discharge class and energy capability for the duty. The ordering table lists the rating and discharge class against each part code.
Which standards does this product conform to?
It is manufactured and tested to IEC 60099-4. Test certificates can be supplied with the order on request.
What does Outdoor Surge Arrester, Distribution High Class (DH) Class 1 - DOV cost?
List prices run from Rs 6,550 to Rs 21,050 per unit, effective 01-04-2026, exclusive of GST, freight and installation. Project quantities are quoted against the list.
What is the lead time and is it available from stock?
Fast-moving part codes are usually available from stock in Bhilai and Raipur; the rest are called off against Raychem RPG lead times. Call +91 7300249139 or email support@jaient.in with the part code and quantity and we will confirm availability the same working day.
Who supplies Outdoor Surge Arrester, Distribution High Class (DH) Class 1 - DOV in India?
Jai Enterprises is a Raychem RPG distributor supplying Outdoor Distribution Class Surge Arresters across India from Bhilai and Raipur, Chhattisgarh. We support selection, pricing and documentation — call +91 7300249139 or email support@jaient.in.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 9.
