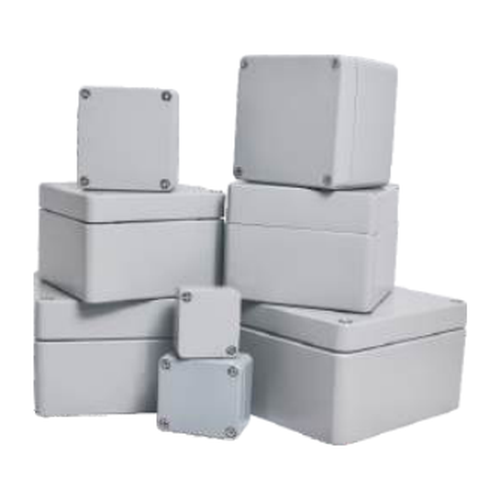

JnExT Aluminium Industrial Enclosure - Neoprene Gasket
JnExT Industrial Enclosures. 60 part codes, Rs 490 - 46,550 per unit.
Rs 490 - 46,550
JnExT Aluminium Industrial Enclosure - Neoprene Gasket is an Industrial Enclosures from JnExT (Raychem RPG). 60 part codes, list price Rs 490 - 46,550 per unit, effective 01-04-2026, exclusive of taxes. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh - call +91 7300249139 or email support@jaient.in.
JnExT Aluminium Industrial Enclosure - Neoprene Gasket from the Raychem RPG Aluminium Enclosures range.
Specifications
| Brand | JnExT (Raychem RPG) |
|---|---|
| Product range | Industrial Enclosures |
| Part codes listed | 60 |
| List price | Rs 490 - 46,550 per unit, effective 01-04-2026, exclusive of GST |
| Supplied by | Jai Enterprises, Bhilai and Raipur - across India |
Key Features
- Material provide high impact strength and rigidity
- Superior working temperature of -400 C to 1350 C
- Excellent dimensional stability and electrical properties
- Good resistance to chemical attack (painted)
- Good heat sinks properties
Ordering Information
| Size (L x B x H) | Colour | Part Code (PCN) | List Price (INR) |
|---|---|---|---|
| 50 x 45 x 30 | Uncoated | DAA4000532 | 490 |
| 50 x 45 x 30 | Powder Coated | DAA4100001 | 550 |
| 98 x 64 x 34 | Uncoated | DAA4100064 | 920 |
| 98 x 64 x 34 | Powder Coated | DAA4100012 | 1,060 |
| 150 x 64 x 34 | Uncoated | DAA4100065 | 1,560 |
| 150 x 64 x 34 | Powder Coated | DAA4100022 | 1,780 |
| 58 x 64 x 34 | Uncoated | DAA4100066 | 675 |
| 58 x 64 x 34 | Powder Coated | DAA4100087 | 780 |
| 75 x 80 x 57 | Uncoated | DAA4100018 | 1,160 |
| 75 x 80 x 57 | Powder Coated | DAA4100056 | 1,350 |
| 125 x 80 x 57 | Uncoated | DAA4100019 | 1,480 |
| 125 x 80 x 57 | Powder Coated | DAA4100006 | 1,750 |
| 175 x 80 x 57 | Uncoated | DAA4100036 | 2,050 |
| 175 x 80 x 57 | Powder Coated | DAA4100032 | 2,410 |
| 250 x 80 x 54 | Uncoated | DAA4100226 | 2,630 |
| 250 x 80 x 54 | Powder Coated | DAA4100149 | 3,100 |
| 100 x 100 x 81 | Uncoated | DAA4100073 | 2,470 |
| 100 x 100 x 81 | Powder Coated | DAA4100057 | 2,800 |
| 160 x 100 x 81 | Uncoated | DAA4100029 | 2,910 |
| 160 x 100 x 81 | Powder Coated | DAA4100058 | 3,380 |
| 122 x 120 x 81 | Uncoated | DAA4100068 | 3,280 |
| 122 x 120 x 81 | Powder Coated | DAA4100011 | 3,740 |
| 220 x 120 x 90 | Uncoated | DAA4100069 | 4,930 |
| 220 x 120 x 90 | Powder Coated | DAA4100085 | 5,660 |
| 260 x 160 x 90 | Uncoated | DAA4100037 | 6,650 |
| 260 x 160 x 90 | Powder Coated | DAA4100041 | 7,660 |
| 360 x 160 x 90 | Uncoated | DAA4100104 | 8,840 |
| 360 x 160 x 90 | Powder Coated | DAA4100081 | 10,200 |
| 280 x 230 x 110 | Uncoated | DAA4100071 | 8,520 |
| 280 x 230 x 110 | Powder Coated | DAA4100047 | 10,050 |
| 330 x 230 x 110 | Uncoated | DAA4100160 | 10,800 |
| 330 x 230 x 110 | Powder Coated | DAA4100059 | 12,550 |
| 200 x 230 x 110 | Uncoated | DAA4100079 | 7,540 |
| 200 x 230 x 110 | Powder Coated | DAA4100086 | 8,750 |
| 330 x 230 x 180 | Uncoated | DAA4100080 | 14,600 |
| 330 x 230 x 180 | Powder Coated | DAA4100083 | 16,850 |
| 220 x 120 x 81 | Uncoated | DAA4100153 | 4,650 |
| 220 x 120 x 81 | Powder Coated | DAA4100045 | 5,340 |
| 122 x 120 x 91 | Uncoated | DAA4100150 | 3,440 |
| 122 x 120 x 91 | Powder Coated | DAA4100094 | 3,930 |
| 180 x 180 x 100 | Uncoated | DAA4100330 | 6,110 |
| 180 x 180 x 100 | Powder Coated | DAA4100279 | 7,000 |
| 280 x 180 x 100 | Uncoated | DAA4100332 | 8,260 |
| 280 x 180 x 100 | Powder Coated | DAA4100290 | 9,490 |
| 200 x 230 x 180 | Uncoated | DAA4100224 | 11,250 |
| 200 x 230 x 180 | Powder Coated | DAA4100252 | 12,800 |
| 400 x 310 x 110 | Uncoated | DAA4100251 | 17,400 |
| 400 x 310 x 110 | Powder Coated | DAA4100227 | 19,950 |
| 400 x 310 x 180 | Uncoated | DAA4100287 | 33,000 |
| 400 x 310 x 180 | Powder Coated | DAA4100223 | 36,200 |
| 600 x 310 x 110 | Uncoated | DAA4100420 | 30,450 |
| 600 x 310 x 110 | Powder Coated | DAA4100271 | 34,050 |
| 600 x 310 x 180 | Uncoated | DAA4100436 | 42,100 |
| 600 x 310 x 180 | Powder Coated | DAA4100270 | 46,550 |
| 400 x 230 x 110 | Uncoated | DAA4100299 | 14,250 |
| 400 x 230 x 110 | Powder Coated | DAA4100269 | 16,300 |
| 140 x 140 x 90 | Uncoated | DAA4100479 | 4,490 |
| 140 x 140 x 90 | Powder Coated | DAA4100406 | 5,070 |
| 200 x 140 x 90 | Uncoated | DAA4100405 | 5,300 |
| 200 x 140 x 90 | Powder Coated | DAA4100404 | 6,040 |
Technical Data
| Components | Fastening threads M4 / M6 in the enclosure bottom |
|---|---|
| Tightening Torque | 5 Nm |
| Mechanical Strength | Accordance With EN/IEC 60079-0, Impact energy > 7 Nm |
| Standard Color | Natural / Powder coated (RAL7001 - Structured) |
Applications
Used in Power and Network, Utility, Oil and Gas Petrochemical, Automation and Process Control.
Related products
- JnExT Aluminium Industrial Enclosure - Silicone Gasket — the Silicone Gasket variant
- JnExT GRP Industrial Enclosure - Neoprene Gasket — another model in the Industrial Enclosures range
- JnExT GRP Industrial Enclosure - Silicone Gasket — another model in the Industrial Enclosures range
Frequently Asked Questions
How do I choose the right enclosure size?
Sizes here run from 50 x 45 x 30 to 200 x 140 x 90 mm (L x B x H). Allow clearance around the gland plate and any DIN rail, and pick the next size up if cable entries crowd one face. Every size is listed with its own part code in the ordering table.
Neoprene or silicone gasket — which should I specify?
This is the neoprene-gasket range. Neoprene handles general industrial duty and oils well at normal ambient. Choose the silicone range instead for sustained high or very low temperatures, or where UV exposure is constant.
What does JnExT Aluminium Industrial Enclosure - Neoprene Gasket cost?
List prices run from Rs 490 to Rs 46,550 per unit, effective 01-04-2026, exclusive of GST, freight and installation. Project quantities are quoted against the list.
What is the lead time and is it available from stock?
Fast-moving part codes are usually available from stock in Bhilai and Raipur; the rest are called off against Raychem RPG lead times. Call +91 7300249139 or email support@jaient.in with the part code and quantity and we will confirm availability the same working day.
Who supplies JnExT Aluminium Industrial Enclosure - Neoprene Gasket in India?
Jai Enterprises is a JnExT / Raychem RPG distributor supplying Industrial Enclosures across India from Bhilai and Raipur, Chhattisgarh. We support selection, pricing and documentation — call +91 7300249139 or email support@jaient.in.
JnExT / Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 64.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
Related Products

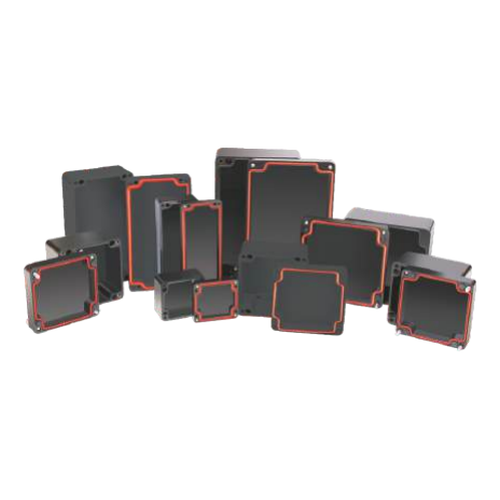

JnExT ATEX GRP Enclosure - Silicone Gasket
Rs 840 - 17,050

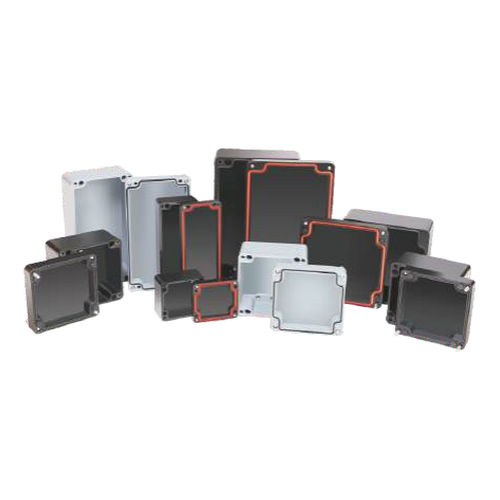

JnExT GRP Industrial Enclosure - Silicone Gasket
Rs 1,060 - 16,950
JnExT GRP Industrial Enclosure - Neoprene Gasket
Rs 1,030 - 16,700

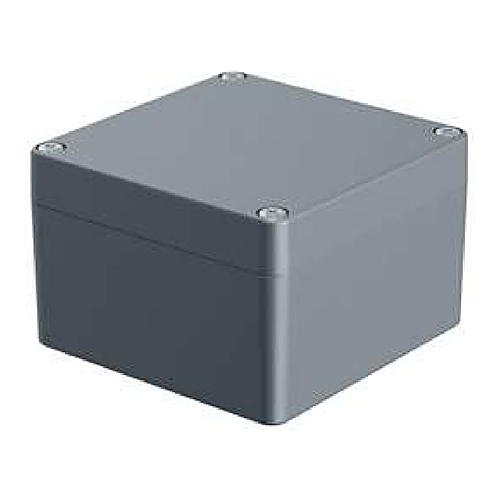

JnExT ATEX Aluminium Enclosure - Silicone Gasket
