Polycab Green Wire+ 1 sq mm HR FR-LSH LF House Wire – 90 m Coil, 85 °C

Polycab Green Wire+ 1 sq mm is a single-core HR FR-LSH LF copper house wire to IS 694:2010, voltage grade 1100 V, rated 85 °C: 14/0.31 strands (no./mm), about 2.44 mm overall, 18.1 ohm/km, 13.5 A in conduit or 14.64 A clipped direct, supplied in a 90 m coil at MRP Rs 4,500 (polycab.com, October 2026). It is the top of the Polycab house-wire range: extra-safe low-smoke, low-halogen insulation that gives off low toxic fumes in a fire, heat resistance to 85 °C and lead-free PVC - and India's first GreenPro-certified house wire. The catalogue lists it as Polycab Maxima+ Green Wire; polycab.com lists the same product codes under the name Polycab Green Wire+.

The 1 sq mm size is the usual choice for lighting points and switch drops. Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Jai Enterprises stocks Polycab Green Wire+ 1 sq mm in Bhilai and Raipur and supplies it all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• The circuit current is within 13.5 A enclosed in conduit or 14.64 A clipped direct (catalogue ratings for two cables in single phase, 40 °C ambient).
• You are wiring lighting points and switch drops.
• You want low-smoke, low-halogen insulation and 85 °C heat resistance - for homes, flats, hospitals, schools and offices where fire safety is the priority.
• A 90 m coil suits the job (180 m pouches of the Green Wire and LF FR constructions are listed separately).
• If the load does not fit: for a lighter circuit, Polycab Green Wire+ 0.75 sq mm (8 A in conduit); for a heavier one, Polycab Green Wire+ 1.5 sq mm (17.1 A).

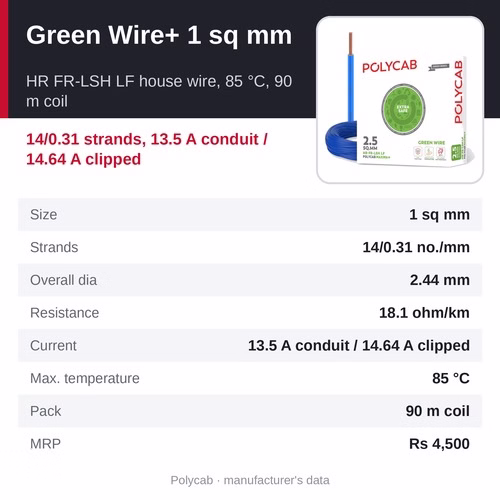

At a glance

• MRP: Rs 4,500 per 90 m coil (inclusive of taxes, polycab.com, Oct 2026)
• Product: Polycab Green Wire+ 1 sq mm
• Type: Single core HR FR-LSH LF unsheathed cable, 1100 V, IS 694:2010
• Nominal area: 1 sq mm
• Conductor: 14/0.31 strands (no./mm), bright annealed electrolytic bare copper (99.97 % purity per Polycab)
• Insulation: HR FR-LSH LF PVC, 0.6 mm nominal
• Overall diameter: approx. 2.44 mm
• Max. DC resistance: 18.1 ohm/km at 20 °C
• Current rating: 13.5 A in conduit (Method B) / 14.64 A clipped direct (Method C) - 2 cables, single phase, 40 °C
• Max. operating temperature: 85 °C
• Standard: IS 694:2010; RoHS and REACH compliant
• Pack: 90 m coil
• Catalogue code: LDIS09CYUAYL001C001S

Specifications

• Construction: PVC insulated single core unsheathed industrial (multistrand) cable - heat resistant, flame retardant, low smoke, low halogen, lead free - conforming to IS 694:2010, with bright annealed electrolytic bare copper conductor, voltage grade 1100 V
• Voltage grade: 1100 V
• Standard: IS 694:2010
• Nominal cross-section: 1 sq mm
• Number and diameter of strands: 14/0.31 (no./mm)
• Insulation thickness (nominal): 0.6 mm
• Overall diameter (approx.): 2.44 mm
• Max. conductor resistance at 20 °C: 18.1 ohm/km
• Current carrying capacity, Method B (enclosed in conduit): 13.5 A
• Current carrying capacity, Method C (clipped direct): 14.64 A
• Ratings basis: 2 cables in single phase, ambient 40 °C
• Max. operating temperature: 85 °C
• Features: low smoke during extreme fires, low toxic fumes, 20 % higher heat resistance (85 °C), lead-free PVC insulation, rodent protection, moisture resistant, high abrasion resistance, energy-saving construction, FLAMESTOP technology, REACH compliant, RoHS compliant, 99.97 % high-purity copper
• Pack: 90 m coil
• MRP: Rs 4,500 per 90 m coil (polycab.com, Oct 2026; selling price on enquiry)
• Catalogue code: LDIS09CYUAYL001C001S
• Note: India's first GreenPro-certified house wire (polycab.com)
• Note: B2B catalogue test references: flammability IEC 60332-1 / IS 10810-52; oxygen and temperature index ASTM D2863 / IS 10810-58; smoke density IS 13360-6; low halogen IS 10810-59; minimum bending radius 8D; temperature range -15 °C to +85 °C

Why choose Polycab Green Wire+

• Low smoke, low halogen (LSH) insulation - low smoke and low toxic fumes in a fire, so escape routes stay visible
• Heat resistant to 85 °C - 20 % higher than a standard 70 °C FR wire, for warm ceilings, conduits and loaded circuits
• Lead-free, RoHS and REACH compliant PVC - and India's first GreenPro-certified house wire
• 99.97 % high-purity electrolytic copper - low resistance, so less heating and voltage drop
• FLAMESTOP technology flame-retardant compound, plus rodent and moisture protection and high abrasion resistance
• Energy-saving construction - a feature Polycab lists for this range, with 99.97 % pure copper

Which size for which circuit?

1 sq mm (13.5 A in conduit) - lighting points and switch drops (this page).

1.5 sq mm (17.1 A in conduit) - lighting and fan circuits - 1.5 sq mm details and MRP.

2.5 sq mm (23.2 A in conduit) - 6 A and 16 A socket circuits - 2.5 sq mm details and MRP.

4 sq mm (31.2 A in conduit) - air conditioners, geysers and kitchen power points - 4 sq mm details and MRP.

6 sq mm (37.2 A in conduit) - mains from the meter to the distribution board and heavy appliance circuits - 6 sq mm details and MRP.

Ratings are the catalogue values for two cables in single phase at 40 °C ambient; size the circuit to the load and the protective device, and keep the voltage drop within limits on long runs.

Where it is used

• Lighting points and switch drops in homes and flats
• Light fittings in offices, shops and hotels
• Fan points with light loads
• Internal panel wiring

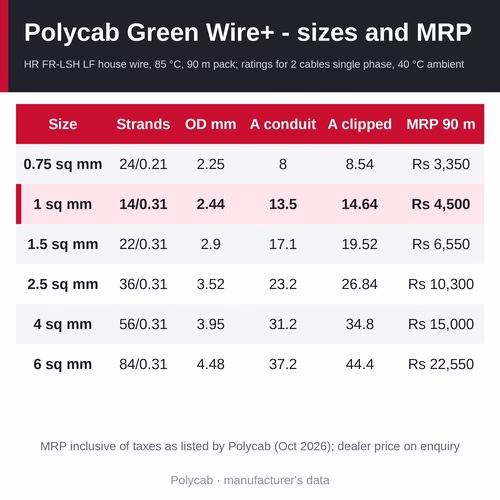

Other sizes of Polycab Green Wire+ (90 m coil)

The Polycab Green Wire+ overview page compares all 6 side by side.

• Polycab Green Wire+ 0.75 sq mm - 24/0.21 strands, 8 A in conduit / 8.54 A clipped, MRP Rs 3,350
• Polycab Green Wire+ 1 sq mm (this page) - 14/0.31 strands, 13.5 A in conduit / 14.64 A clipped, MRP Rs 4,500
• Polycab Green Wire+ 1.5 sq mm - 22/0.31 strands, 17.1 A in conduit / 19.52 A clipped, MRP Rs 6,550
• Polycab Green Wire+ 2.5 sq mm - 36/0.31 strands, 23.2 A in conduit / 26.84 A clipped, MRP Rs 10,300
• Polycab Green Wire+ 4 sq mm - 56/0.31 strands, 31.2 A in conduit / 34.8 A clipped, MRP Rs 15,000
• Polycab Green Wire+ 6 sq mm - 84/0.31 strands, 37.2 A in conduit / 44.4 A clipped, MRP Rs 22,550

Related products

• Polycab Suprema 1 sq mm - E-Beam HR FR LF, 105 °C, 18 A in conduit, 90 m coil, MRP Rs 4,150
• Polycab Optima+ 1 sq mm - LF FR, 70 °C, 11.6 A in conduit, 90 m coil, MRP Rs 4,200
• Polycab Primma 1 sq mm - LF FR, 70 °C, 11 A in conduit, 90 m coil, MRP Rs 3,930
• Etira by Polycab 1 sq mm - FR, 70 °C, 11 A in conduit, 90 m coil, MRP Rs 3,750
• Polycab Green Wire 1 sq mm - HR FR-LSH LF, 85 °C, 12.7 A in conduit, 180 m pouch, MRP Rs 9,000
• Polycab LF FR 1 sq mm - LF FR, 70 °C, 11 A in conduit, 180 m pouch, MRP Rs 8,400
• All house wires and flexible cables

Frequently asked questions

What is the MRP of Polycab Green Wire+ 1 sq mm?

Rs 4,500 per 90 m coil - the MRP listed on polycab.com in October 2026, inclusive of taxes. Our selling price is quoted on enquiry: call +91 9340081159.

How much current can Polycab Green Wire+ 1 sq mm carry?

13.5 A enclosed in conduit (Reference Method B) and 14.64 A clipped direct (Method C), for two cables in single phase at 40 °C ambient, per the Polycab catalogue. Derate for higher ambient temperatures and for groups of circuits in one conduit.

What is the construction of Polycab Green Wire+ 1 sq mm?

14/0.31 strands (number/diameter in mm) of bright annealed electrolytic copper, HR FR-LSH LF PVC insulation 0.6 mm thick, overall diameter about 2.44 mm, maximum conductor resistance 18.1 ohm/km at 20 °C.

Is 1.0 sq mm enough for a fan point?

A ceiling fan draws well under 1 A, so 1.0 sq mm carries it easily. Many installers still run fan circuits in 1.5 sq mm so that lights and fans share one standard size with extra margin.

What does HR FR-LSH LF mean?

Heat Resistant (85 °C), Flame Retardant, Low Smoke and low Halogen, Lead Free. The insulation resists burning, gives off little smoke and few halogen gases in a fire, and contains no lead.

Is Polycab Green Wire+ 1 sq mm a genuine Polycab product?

Yes - Jai Enterprises supplies factory-sealed Polycab coils from its Bhilai and Raipur stock, to every district of Chhattisgarh and across India.

Where can I buy Polycab Green Wire+ 1 sq mm in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab wires and cables across Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the size, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The MRP of Polycab Green Wire+ 1 sq mm is Rs 4,500 per 90 m coil; our selling price is quoted on enquiry. Call +91 9340081159 or send an enquiry from this page with the colour, number of coils and delivery location, and we will confirm the price, stock and lead time.
