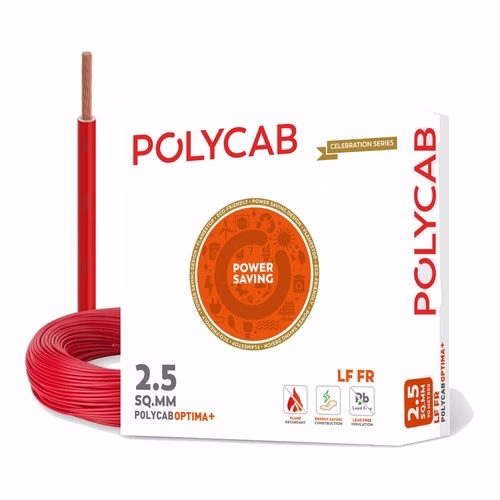

Polycab Optima+ 2.5 sq mm LF FR House Wire – 90 m Coil, 70 °C

Polycab Optima+ 2.5 sq mm is a single-core LF FR copper house wire to IS 694:2010, voltage grade 1100 V, rated 70 °C: 36/0.31 strands (no./mm), about 3.52 mm overall, 7.41 ohm/km, 20 A in conduit or 23.1 A clipped direct, supplied in a 90 m coil at MRP Rs 9,700 (polycab.com, October 2026). It pairs lead-free flame-retardant PVC with 99.97 % pure electrolytic copper in an energy-saving construction - Polycab's "high quality materials, power saving design" range.

The 2.5 sq mm size is the usual choice for 6 A and 16 A socket circuits and dedicated circuits for small appliances. Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Jai Enterprises stocks Polycab Optima+ 2.5 sq mm in Bhilai and Raipur and supplies it all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these five things before you order:

• The circuit current is within 20 A enclosed in conduit or 23.1 A clipped direct (catalogue ratings for two cables in single phase, 40 °C ambient).
• You are wiring 6 A and 16 A socket circuits and dedicated circuits for small appliances.
• You want lead-free flame-retardant insulation at a mid-range price, with the standard 70 °C rating.
• A 90 m coil suits the job (180 m pouches of the Green Wire and LF FR constructions are listed separately).
• If the load does not fit: for a lighter circuit, Polycab Optima+ 1.5 sq mm (14.7 A in conduit); for a heavier one, Polycab Optima+ 4 sq mm (26 A).

At a glance

• MRP: Rs 9,700 per 90 m coil (inclusive of taxes, polycab.com, Oct 2026)
• Product: Polycab Optima+ 2.5 sq mm
• Type: Single core FR PVC insulated unsheathed cable, 1100 V, IS 694:2010
• Nominal area: 2.5 sq mm
• Conductor: 36/0.31 strands (no./mm), bright annealed electrolytic bare copper (99.97 % purity per Polycab)
• Insulation: LF FR PVC, 0.8 mm nominal
• Overall diameter: approx. 3.52 mm
• Max. DC resistance: 7.41 ohm/km at 20 °C
• Current rating: 20 A in conduit (Method B) / 23.1 A clipped direct (Method C) - 2 cables, single phase, 40 °C
• Max. operating temperature: 70 °C
• Standard: IS 694:2010; RoHS and REACH compliant
• Pack: 90 m coil
• Colours: yellow, red, blue, green and black, with white in 2.5 sq mm and below

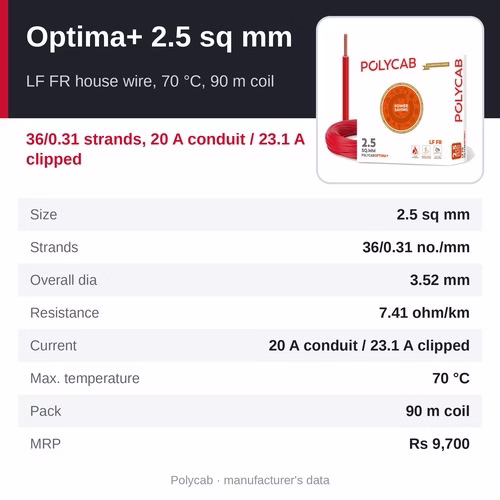

Specifications

• Construction: PVC insulated single core unsheathed industrial (multistrand) cable - lead free, flame retardant (LF FR) - conforming to IS 694:2010, with bright annealed electrolytic bare copper conductor, voltage grade 1100 V
• Voltage grade: 1100 V
• Standard: IS 694:2010
• Nominal cross-section: 2.5 sq mm
• Number and diameter of strands: 36/0.31 (no./mm)
• Insulation thickness (nominal): 0.8 mm
• Overall diameter (approx.): 3.52 mm
• Max. conductor resistance at 20 °C: 7.41 ohm/km
• Current carrying capacity, Method B (enclosed in conduit): 20 A
• Current carrying capacity, Method C (clipped direct): 23.1 A
• Ratings basis: 2 cables in single phase, ambient 40 °C
• Max. operating temperature: 70 °C
• Features: flame retardant, lead-free PVC insulation, rodent protection, moisture resistant, high abrasion resistance, energy-saving construction, REACH compliant, RoHS compliant, 99.97 % high-purity copper
• Pack: 90 m coil
• MRP: Rs 9,700 per 90 m coil (polycab.com, Oct 2026; selling price on enquiry)

Why choose Polycab Optima+

• Lead-free flame-retardant (LF FR) PVC insulation - RoHS and REACH compliant
• Energy-saving construction with 99.97 % high-purity electrolytic copper
• Rodent protection, moisture resistance and high abrasion resistance
• Rated 70 °C - the standard operating temperature for a PVC-insulated house wire
• Priced below Green Wire+ and Suprema for budget-conscious wiring that still needs the Polycab name

Which size for which circuit?

1 sq mm (11.6 A in conduit) - lighting points and switch drops - 1 sq mm details and MRP.

1.5 sq mm (14.7 A in conduit) - lighting and fan circuits - 1.5 sq mm details and MRP.

2.5 sq mm (20 A in conduit) - 6 A and 16 A socket circuits (this page).

4 sq mm (26 A in conduit) - air conditioners, geysers and kitchen power points - 4 sq mm details and MRP.

6 sq mm (31 A in conduit) - mains from the meter to the distribution board and heavy appliance circuits - 6 sq mm details and MRP.

Ratings are the catalogue values for two cables in single phase at 40 °C ambient; size the circuit to the load and the protective device, and keep the voltage drop within limits on long runs.

Where it is used

• 6 A and 16 A socket circuits in homes and offices
• Dedicated circuits for small air conditioners, refrigerators and microwave ovens on short runs
• Kitchen and bathroom power points
• Commercial fit-outs, shops and hotels

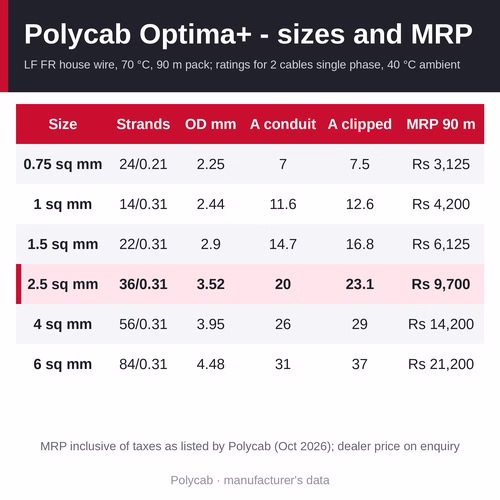

Other sizes of Polycab Optima+ (90 m coil)

The Polycab Optima+ overview page compares all 6 side by side.

• Polycab Optima+ 0.75 sq mm - 24/0.21 strands, 7 A in conduit / 7.5 A clipped, MRP Rs 3,125
• Polycab Optima+ 1 sq mm - 14/0.31 strands, 11.6 A in conduit / 12.6 A clipped, MRP Rs 4,200
• Polycab Optima+ 1.5 sq mm - 22/0.31 strands, 14.7 A in conduit / 16.8 A clipped, MRP Rs 6,125
• Polycab Optima+ 2.5 sq mm (this page) - 36/0.31 strands, 20 A in conduit / 23.1 A clipped, MRP Rs 9,700
• Polycab Optima+ 4 sq mm - 56/0.31 strands, 26 A in conduit / 29 A clipped, MRP Rs 14,200
• Polycab Optima+ 6 sq mm - 84/0.31 strands, 31 A in conduit / 37 A clipped, MRP Rs 21,200

Related products

• Polycab Green Wire+ 2.5 sq mm - HR FR-LSH LF, 85 °C, 23.2 A in conduit, 90 m coil, MRP Rs 10,300
• Polycab Suprema 2.5 sq mm - E-Beam HR FR LF, 105 °C, 33 A in conduit, 90 m coil, MRP Rs 9,650
• Polycab Primma 2.5 sq mm - LF FR, 70 °C, 19 A in conduit, 90 m coil, MRP Rs 9,200
• Etira by Polycab 2.5 sq mm - FR, 70 °C, 19 A in conduit, 90 m coil, MRP Rs 8,850
• Polycab Green Wire 2.5 sq mm - HR FR-LSH LF, 85 °C, 22 A in conduit, 180 m pouch, MRP Rs 20,600
• Polycab LF FR 2.5 sq mm - LF FR, 70 °C, 19 A in conduit, 180 m pouch, MRP Rs 19,400
• All house wires and flexible cables

Frequently asked questions

What is the MRP of Polycab Optima+ 2.5 sq mm?

Rs 9,700 per 90 m coil - the MRP listed on polycab.com in October 2026, inclusive of taxes. Our selling price is quoted on enquiry: call +91 9340081159.

How much current can Polycab Optima+ 2.5 sq mm carry?

20 A enclosed in conduit (Reference Method B) and 23.1 A clipped direct (Method C), for two cables in single phase at 40 °C ambient, per the Polycab catalogue. Derate for higher ambient temperatures and for groups of circuits in one conduit.

What is the construction of Polycab Optima+ 2.5 sq mm?

36/0.31 strands (number/diameter in mm) of bright annealed electrolytic copper, LF FR PVC insulation 0.8 mm thick, overall diameter about 3.52 mm, maximum conductor resistance 7.41 ohm/km at 20 °C.

Is 2.5 sq mm enough for an air conditioner?

A small split air conditioner on its own 16 A circuit over a short run is commonly wired in 2.5 sq mm. For larger units, long runs or a geyser on the same board, step up to 4 sq mm - and follow the appliance maker's and electrician's recommendation.

What does LF FR mean?

Lead Free, Flame Retardant: the PVC insulation contains no lead stabiliser and resists the spread of flame. Rated 70 °C.

Is Polycab Optima+ 2.5 sq mm a genuine Polycab product?

Yes - Jai Enterprises supplies factory-sealed Polycab coils from its Bhilai and Raipur stock, to every district of Chhattisgarh and across India.

Where can I buy Polycab Optima+ 2.5 sq mm in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab wires and cables across Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the size, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The MRP of Polycab Optima+ 2.5 sq mm is Rs 9,700 per 90 m coil; our selling price is quoted on enquiry. Call +91 9340081159 or send an enquiry from this page with the colour, number of coils and delivery location, and we will confirm the price, stock and lead time.
