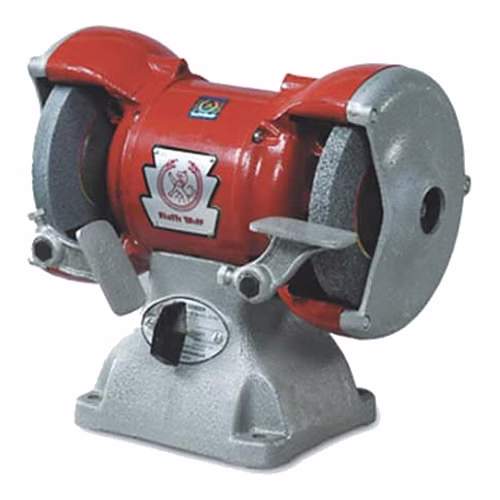

Ralli Wolf TG6 Bench Grinder – 150 mm Wheels, Single-Phase & Three-Phase

The Ralli Wolf TG6 is a tool-room bench grinder with two 150 × 16 × 12.7 mm wheels running at 2950 rpm — fit a coarse wheel on one side for roughing and a fine wheel on the other for finishing. It comes in a single-phase version (265 W, about 12.2 kg) and a three-phase version (285 W, about 12 kg), each with a tool rest at both wheels for sharpening drills, chisels and lathe tools and dressing small parts.

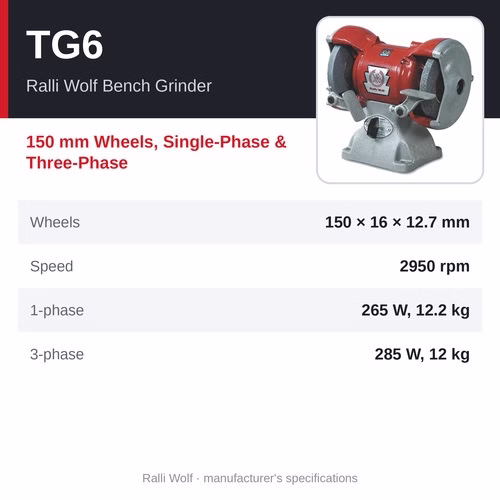

At a glance

• Wheels: 150 × 16 × 12.7 mm
• Speed: 2950 rpm
• 1-phase: 265 W, 12.2 kg
• 3-phase: 285 W, 12 kg

Why choose the TG6

• Tool-room bench grinder with two wheels
• Single-phase and three-phase versions
• Tool rest at each wheel
• Ralli Wolf — an Indian power-tool maker with more than 60 years in the trade. Ralli Wolf Industries Ltd. began in technical collaboration with Wolf of the UK, makes its tools at an ISO 9001:2015 certified plant in MIDC Ahmednagar, Maharashtra, and backs them with more than 30 service locations across India.

Specifications

• Model: TG6
• Product: Ralli Wolf Bench Grinder
• Models: TG6 single-phase and TG6 three-phase
• Rated power: single-phase 265 W · three-phase 285 W
• Wheel size: 150 × 16 × 12.7 mm
• No-load speed: 2950 rpm
• Weight: single-phase 12.2 kg · three-phase 12 kg (approx.)
• Supply: TG6 235 V single-phase · TG6 440 V three-phase
• Brand: Ralli Wolf (Ralli Wolf Industries Ltd., India)

Die, straight and bench grinders compared

A die grinder spins small mounted points and burrs in a 6 mm collet at very high speed for deburring, porting and finishing inside cavities. A straight grinder drives a larger wheel for grinding, polishing and de-rusting on castings and fabrications. A bench grinder sits on the bench for sharpening tools and dressing small parts. Always use points and wheels rated for at least the machine's no-load speed.

Where it is used

• Tool rooms, die and mould shops
• Foundries — fettling and finishing castings
• Fabrication and maintenance workshops
• Automobile and engine work

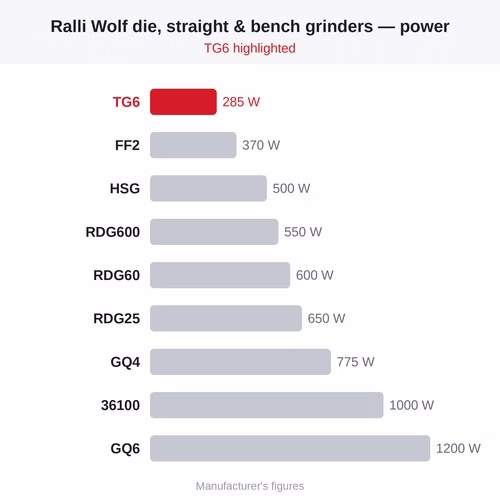

Which Ralli Wolf die, straight or bench grinder is right for you?

• RDG25 — 6 mm Collet, 650 W, 25000 rpm, Long Neck
• RDG600 — 6 mm Collet, 550 W, 27000 rpm, Short Neck
• RDG60 — 6 mm Collet, 600 W, 29000 rpm, Long Neck
• GQ4 — 100 mm Wheel, 775 W, 5000 rpm, Metal Body
• GQ6 — 25 mm Wide Wheel, 1200 W, 5600 rpm, Metal Body
• 36100 — 100 mm Wheel, 1000 W, 5800 rpm
• HSG — 6 mm Collet, HSG 300 W / HSG BR 500 W, Pistol Grip
• FF2 — 6 mm Collet, 370 W, FF2 Two-Speed / FSG2 Single-Speed
• TG6 (this page) — 150 mm Wheels, Single-Phase & Three-Phase
• See all Ralli Wolf die, straight and bench grinders

Related products

• Ralli Wolf angle grinders
• Ralli Wolf industrial drills
• Ralli Wolf magnetic core drills

Frequently asked questions

Which should I choose — the TG6 or the GQ4?

The TG6 stays on the bench and the work comes to it; a straight grinder such as the Ralli Wolf GQ4 goes to the work.

What does the TG6 take?

Grinding wheels of 150 × 16 × 12.7 mm. Use accessories rated for at least the tool's no-load speed.

What is the TG6 used for?

Sharpening drills, chisels and lathe tools, and dressing small parts at the bench.

What is the price of the Ralli Wolf TG6, and where can I buy it?

Prices depend on quantity and current Ralli Wolf pricing, so they are quoted on request. Jai Enterprises supplies Ralli Wolf tools from Bhilai and Raipur, Chhattisgarh, to sites across India — call +91 9340081159 or send an enquiry from this page with the quantity and delivery location.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
