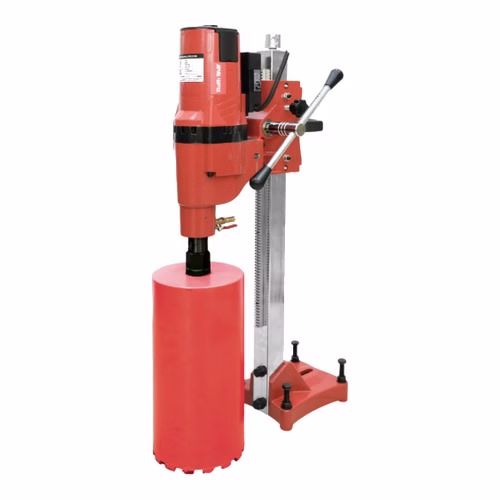

Ralli Wolf RDD200 Diamond Core Drill – Stand Mounted, 12–205 mm, 3900 W, 580 rpm

The Ralli Wolf RDD200 is a rig-mounted diamond core drill for large openings in reinforced concrete: 12 to 205 mm cores for ducts, pipes and service penetrations. Its 3900 W motor turns the bit at 580 rpm for the torque large diameters need, and it runs on a column stand with a feed handle for straight, controlled cutting. The spindle has both a 1-1/4-inch UNC male and a 1/2-inch BSP female thread, so it takes common core bits. Net weight is 20.5 kg.

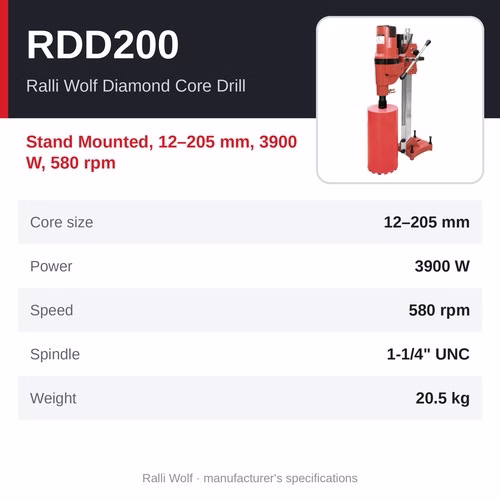

At a glance

• Core size: 12–205 mm
• Power: 3900 W
• Speed: 580 rpm
• Spindle: 1-1/4" UNC
• Weight: 20.5 kg

Why choose the RDD200

• Rig-mounted motor on a column stand with feed handle
• Water swivel for wet drilling
• Ralli Wolf — an Indian power-tool maker with more than 60 years in the trade. Ralli Wolf Industries Ltd. began in technical collaboration with Wolf of the UK, makes its tools at an ISO 9001:2015 certified plant in MIDC Ahmednagar, Maharashtra, and backs them with more than 30 service locations across India.

Specifications

• Model: RDD200
• Product: Ralli Wolf Diamond Core Drill
• Rated power: 3900 W
• Rated voltage: 230 V, 50 Hz
• No-load speed: 580 rpm
• Drilling capacity: 12–205 mm diameter
• Spindle thread: 1-1/4-inch UNC (male) / 1/2-inch BSP (female)
• Net weight: 20.5 kg
• Brand: Ralli Wolf (Ralli Wolf Industries Ltd., India)

Wet core drilling basics

Diamond core drilling cuts a clean round hole through concrete, brick and stone by grinding an annular groove and lifting out the core. Run water through the bit to cool it and flush the slurry. Handheld machines suit smaller holes; stand-mounted rigs anchored to the floor or wall give the stability and feed control that large-diameter cores need. Choose the bit diameter for the pipe or cable plus clearance.

Where it is used

• Openings for pipes, ducts and cable entries
• HVAC and plumbing penetrations
• Anchor holes and test cores in concrete

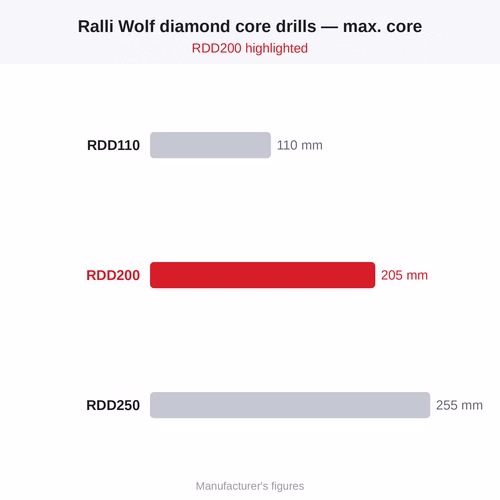

Which Ralli Wolf diamond core drill is right for you?

• RDD110 — Handheld, 12–110 mm, 2080 W, 0–2100 rpm
• RDD200 (this page) — Stand Mounted, 12–205 mm, 3900 W, 580 rpm
• RDD250 — Stand Mounted, 12–255 mm, 4250 W, 560 rpm
• See all Ralli Wolf diamond core drills

Related products

• Ralli Wolf rotary and demolition hammers
• Ralli Wolf marble cutters
• Ralli Wolf concrete vibrators

Frequently asked questions

Which should I choose — the RDD200 or the RDD250?

The Ralli Wolf RDD250 extends the range to 255 mm with 4250 W at 560 rpm (24 kg); the RDD200 drills cores up to 205 mm and also has a 1/2-inch BSP female thread.

What hole sizes can the RDD200 drill?

Cores of 12–205 mm diameter in concrete, brick and stone, with the matching diamond core bit.

Does the RDD200 drill wet or dry?

Diamond core drills like this are run wet: water cools the bit and flushes the slurry, which makes the bit last longer and cut faster.

What is the price of the Ralli Wolf RDD200, and where can I buy it?

Prices depend on quantity and current Ralli Wolf pricing, so they are quoted on request. Jai Enterprises supplies Ralli Wolf tools from Bhilai and Raipur, Chhattisgarh, to sites across India — call +91 9340081159 or send an enquiry from this page with the quantity and delivery location.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
