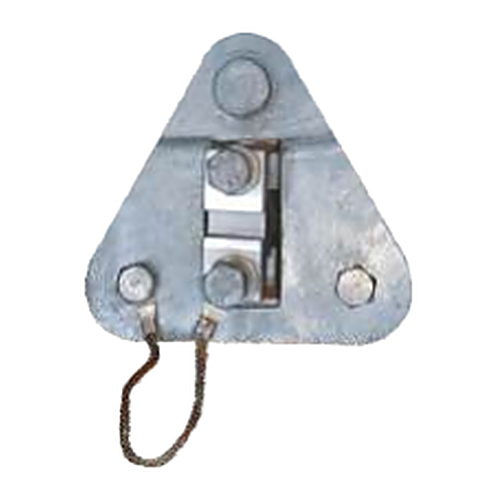

Suspension Clamp for MV Covered Conductor
Raychem RPG Clamps for MV Covered Conductor. 5 part codes, Rs 1,330 - 7,450 per unit.
Rs 1,330 - 7,450
Suspension Clamp for MV Covered Conductor is a Clamps for MV Covered Conductor from Raychem RPG. It covers cable sizes 50 - 157 sq mm. 5 part codes, list price Rs 1,330 - 7,450 per unit, effective 01-04-2026, exclusive of taxes. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh - call +91 7300249139 or email support@jaient.in.
Suspension Clamp for MV Covered Conductor from the Raychem RPG Connectors & Fittings For MVCC range.
Specifications
| Brand | Raychem RPG |
|---|---|
| Product range | Clamps for MV Covered Conductor |
| Cable size range | 50 - 157 sq mm |
| Conforms to | EN 50397-2 |
| Part codes listed | 5 |
| List price | Rs 1,330 - 7,450 per unit, effective 01-04-2026, exclusive of GST |
| Supplied by | Jai Enterprises, Bhilai and Raipur - across India |
Key Features
- Conforms to EN 50397-2 Standards
- Built-in Insulation Piercing mechanism
- Roller provided for easy installation of covered conductor
- No need for additional pulley during installation
- Conforms to EN 50397-2 Standard
- Components are not losable, end cap attached to body
- Insulation material made of weather and UV resistant glass fibre reinforced polymer
- Contact plates made of copper, bolt made of steel with Geomet (Chromium free) protection
Ordering Information
| Cable Range (sq. mm) | Connection Type | Main Conductor Size (Sq. mm.) | Top Conductor Size (Sq. mm.) | Blade Material | Part Code (PCN) | List Price (INR) |
|---|---|---|---|---|---|---|
| 50 - 157 | Bare Conductor to Covered Conductor | 50 - 99 | 50 - 99 | Tin PlatedCopper | AJA3020251 | 7,450 |
| 50 - 157 | Bare Conductor to Covered Conductor | 50 - 99 | 50 - 99 | Tin PlatedCopper | AJA4040620 | 1,330 |
| 50 - 157 | Bare Conductor to Covered Conductor | 50 - 99 | 50 - 99 | Tin PlatedCopper | AJA4040619 | 1,330 |
| 50 - 157 | Covered Conductor to Covered Conductor | 95 - 240 | 35 - 95 | Tin PlatedCopper | AJA4040552 | 1,350 |
| 50 - 157 | Covered Conductor to Covered Conductor | 185 - 300 | 150 - 240 | Tin PlatedCopper | AAA6135023 | 3,690 |
Applications
Used in Commercial, Power and Network, Utility, Railways.
Related products
- Anchor Clamp for MV Covered Conductor — another model in the Clamps for MV Covered Conductor range
Frequently Asked Questions
How do I choose the right Suspension Clamp for MV Covered Conductor for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 50 to 157 sq mm. Each size has its own part code; order the one whose range brackets your cable.
Which standards does this product conform to?
It is manufactured and tested to EN 50397-2. Test certificates can be supplied with the order on request.
What does Suspension Clamp for MV Covered Conductor cost?
List prices run from Rs 1,330 to Rs 7,450 per unit, effective 01-04-2026, exclusive of GST, freight and installation. Project quantities are quoted against the list.
What is the lead time and is it available from stock?
Fast-moving part codes are usually available from stock in Bhilai and Raipur; the rest are called off against Raychem RPG lead times. Call +91 7300249139 or email support@jaient.in with the part code and quantity and we will confirm availability the same working day.
Who supplies Suspension Clamp for MV Covered Conductor in India?
Jai Enterprises is a Raychem RPG distributor supplying Clamps for MV Covered Conductor across India from Bhilai and Raipur, Chhattisgarh. We support selection, pricing and documentation — call +91 7300249139 or email support@jaient.in.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 52.
