Tor Shield – IoT Energy & Utility Monitoring System for Factories and Buildings

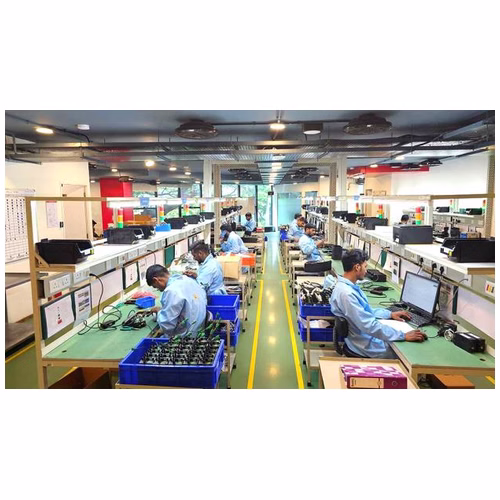

Tor Shield is Tor.ai's IoT platform for monitoring a plant's or building's utilities in one place. Controllers, Titan meters and sensors feed a gateway, which sends data to a web application with real-time dashboards, reports, role-based access and instant alerts — covering active energy, reactive energy, electrical safety, water and compressed air. Designed and made in India by Tor.ai (Pune), with 100+ in-house engineers, ISO/IATF-compliant manufacturing and more than 250,000 connected devices in the field.

At a glance

• Type: IoT utility monitoring solution (hardware + web platform)
• Monitors: energy, APFC/reactive power, gensets, LT panels and busbars, water, compressed air and gas

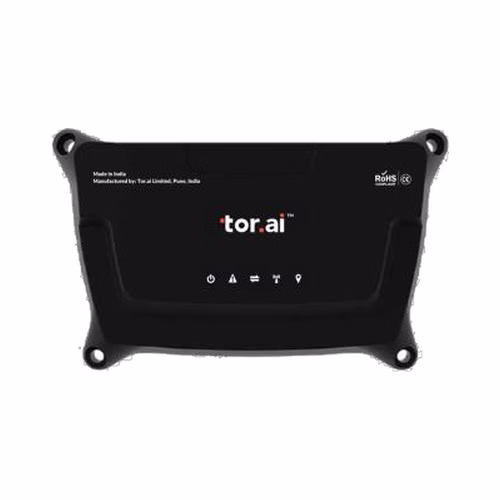

• Hardware: Tor Titan meters, controllers, sensors and gateway
• Software: web app with dashboards, reports, role-based access, alerts
• Made by: Tor.ai, Pune (India)

Why choose it

• One view of every utility — electricity, reactive power, water and air, across one site or many.
• Quantified results in Tor.ai case studies, with paybacks of 6 to 15 months (see below).
• Built on Tor.ai's own hardware — Titan meters and gateways made in-house.
• Alerts before failures — busbar thermography and LT-panel health help prevent unplanned downtime.
• ISO 27001 certified security and enterprise-grade cloud.

Specifications

• Active energy: wind/solar generation, grid and transformer, battery energy storage, gensets
• Reactive energy: APFC panel monitoring
• Safety & infrastructure: LT panels; busbar temperature and humidity thermography
• Water: level, flow, STP/ETP
• Air: compressed air and gas flow
• Architecture: controllers / meters / sensors → gateway → web application

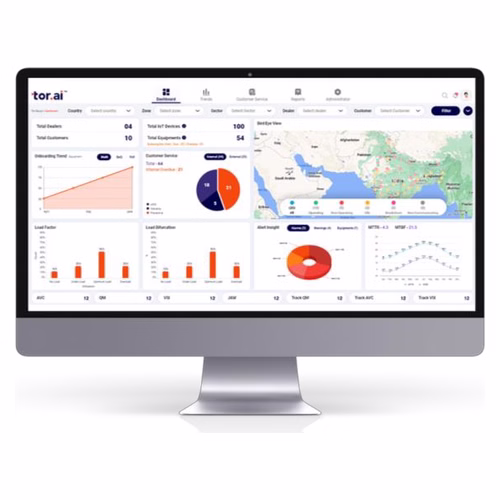

• Software: real-time dashboards, reports, role-based access, instant alerts
• Security: ISO 27001 certified; enterprise-grade cloud

Where it is used

• Manufacturing plants and industrial parks
• Commercial buildings, malls and hospitals
• Multi-site operations that need central dashboards
• Solar plants, gensets and battery storage sites

Results reported by Tor.ai customers

• Energy: 12% cut in electricity cost, 15-month payback.
• APFC: 10% efficiency gain, 6-month payback — one manufacturer restored power factor to near unity after right-sizing its APFC bank.
• Genset: 95% less idling, 6-month payback.
• Water: 12% savings, 10-month payback. Compressed air: 9% savings, 12-month payback.

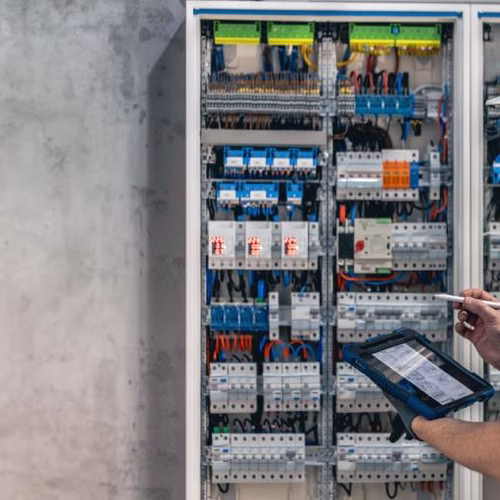

• LT panel and busbar monitoring: 95% less unplanned downtime, 12–15-month payback.
• Power quality: voltage THD brought from above 8% to below 4% with detuned filters, with capacitor temperature held under 50 °C.
• (Figures from Tor.ai's published case studies; results vary by site.)

Related products

• Titan 312 Wi-Fi meter
• Titan 313 meter with I/O
• Titan 411 power monitoring unit

Frequently asked questions

What can Tor Shield monitor?

Active energy (grid, transformers, solar, wind, battery storage, gensets), reactive energy and APFC panels, LT panels and busbar temperature/humidity, water level and flow including STP/ETP, and compressed air and gas.

What hardware does it use?

Tor.ai's Titan meters, controllers and sensors connected through a gateway to the Tor Shield web application.

What payback can we expect?

Tor.ai's published case studies report paybacks of 6 to 15 months depending on the utility — for example 6 months for genset idling and APFC, 15 months for energy cost reduction. Every site is different; we can help scope yours.

Is the data secure?

Tor.ai states ISO 27001 certified security and an enterprise-grade cloud.

Can it cover more than one site?

Yes — multi-site dashboards are part of the web application.

Where can I buy Tor Titan meters in India?

From Jai Enterprises, which supplies Tor.ai meters across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 for price and lead time.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry with your sites and the utilities you want to monitor, and we will confirm the hardware list, scope and lead time.
