Tor Titan 212 Wi-Fi Multi-Function Energy Meter – BLE, Mobile App, RS-485 Modbus

The Tor Titan 212 is a three-phase multi-function energy meter with built-in Wi-Fi and Bluetooth LE. It measures 68 parameters at class 0.5S and sends them to the Titan mobile app and the cloud without a separate gateway — plus RS-485 Modbus for SCADA or BMS. It has no display, so it suits panels where nobody needs to read the meter on the spot. Designed and made in India by Tor.ai (Pune), with 100+ in-house engineers, ISO/IATF-compliant manufacturing and more than 250,000 connected devices in the field.

At a glance

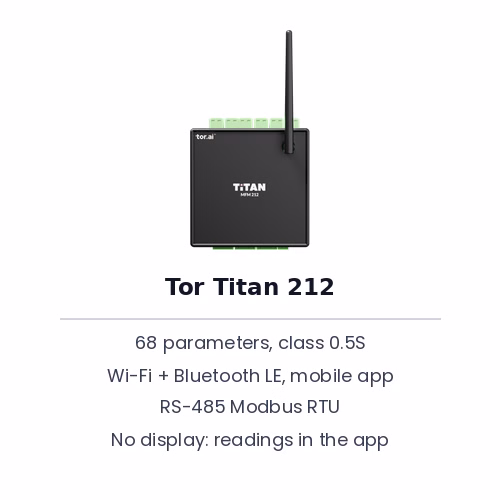

• Model: Tor Titan 212
• Type: Three-phase multi-function meter
• Parameters: 68, accuracy class 0.5S
• Display: none (readings in the Titan app and web app)
• Connectivity: RS-485 Modbus, Wi-Fi (IEEE 802.11), Bluetooth LE 5.0
• I/O: none
• Mounting: 96 × 96 mm panel cut-out; DIN rail optional
• List price: Rs 9,523 per meter

Why choose it

• Wi-Fi + BLE built in — no separate gateway to buy for cloud or app access.
• Digital logbook — the Titan app syncs energy consumption automatically, replacing manual meter readings.
• Wi-Fi reports, alerts and analytics on voltage, current, power factor and THD.
• RS-485 Modbus as well, for SCADA/BMS.
• 68 parameters at class 0.5S, made in India.

Specifications

• Model: Tor Titan 212 (200 series)
• Parameters: 68 — voltages (P-N, P-P, averages), currents, active/reactive/apparent power (total and per phase), import/export and reactive energy, phase-wise THD (V, I, power), frequency/RPM with unbalance detection, maximum demand and min/max history, phase-wise and average power factor, feeder-interruption tracking
• Voltage range: 50–500 V AC, 3-phase 4-wire or 3-phase 3-wire
• Auxiliary supply: 65–450 V AC/DC
• Current range: 0.05–5.0 A (20% overload); CT and VT ratios configurable
• Frequency: 45–65 Hz
• Accuracy class: 0.5S
• Short-time overcurrent: 200% for 10 seconds
• Standards: IS 14697, IS 13779, IEC 62052-11, IEC 62053-22, IEC 62053-23, IEC 61010, IEC 62053-31
• Communication: RS-485 Modbus RTU, 9600–115200 baud (settable)
• Dimensions / weight: 96 × 96 × 39 mm, 0.5 kg
• Enclosure / terminals: polycarbonate; plug-in terminals
• Mounting: panel mounting; DIN rail optional
• Protection: IP54 front fascia, IP20 at terminals; insulation min 10 MΩ
• Environment: operating 10–75 °C, storage 0–85 °C, humidity 95% RH
• Display: none
• Wi-Fi: IEEE 802.11 wireless network
• Bluetooth: BLE 5.0

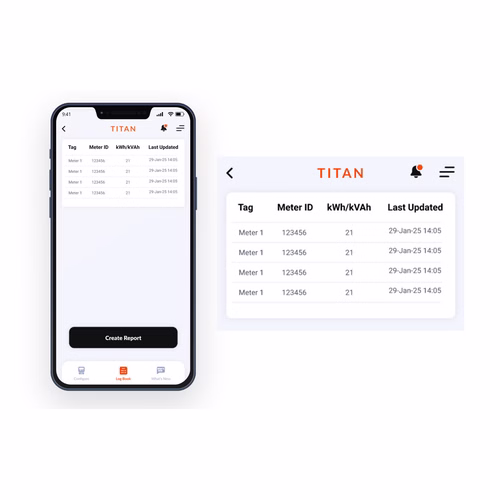

• Mobile app: Titan app, Android and iOS
• CT/VT setting: via RS-485

Where it is used

• Sub-metering where staff want readings on their phones
• Multi-site shops, offices and hospitals
• Plant energy dashboards without new wiring
• Energy audits and billing checks

Which Titan meter do I need?

• Titan 211 — no display, RS-485 only: the most economical wired panel meter. List price Rs 6,666.
• Titan 212 — no display, adds Wi-Fi + Bluetooth LE and the mobile app. List price Rs 9,523.
• Titan 311 — 3.5-inch colour display, RS-485. List price Rs 9,523.
• Titan 312 — colour display plus Wi-Fi, BLE and app. List price Rs 12,697.
• Titan 313 — adds 2 analog inputs, 2 digital inputs, 2 digital outputs, counter and hour meters. List price Rs 15,871.
• Titan 411 — everything in the 313 plus transient (power-quality event) capture over Wi-Fi. List price Rs 22,220.

Related products

• Titan 312 — adds a colour display
• Titan 211 — wired only
• Tor Shield IoT monitoring

Frequently asked questions

Does the Titan 212 need a gateway to reach the cloud?

No — Wi-Fi is built in. RS-485 Modbus is also available if you prefer a wired gateway or SCADA.

Which phones does the Titan app support?

Android and iOS.

Does the 212 have a display?

No. Readings, reports and alerts are shown in the Titan mobile app and web app.

What alerts can it send?

Wi-Fi based reports, alerts and analytics covering voltage, current, power factor and voltage/current THD.

Does it work with our existing SCADA, BMS or PLC?

Yes — every Titan meter talks Modbus RTU over RS-485 (9600–115200 baud), the common language of SCADA, BMS and PLC systems.

Which standards does the Titan comply with?

IS 14697, IS 13779, IEC 62052-11, IEC 62053-22, IEC 62053-23, IEC 61010 and IEC 62053-31, with accuracy class 0.5S.

What is the price of the Tor Titan 212?

Rs 9,523 per meter (Tor.ai list price). Call +91 9340081159 to confirm the current price, taxes and delivery.

Where can I buy Tor Titan meters in India?

From Jai Enterprises, which supplies Tor.ai meters across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 for price and lead time.

How to order

List price: Rs 9,523 per meter. Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. Call +91 9340081159 or send an enquiry with the number of meters and where they will be installed, and we will confirm the current price and taxes, the right Titan model, CT ratios and lead time.
