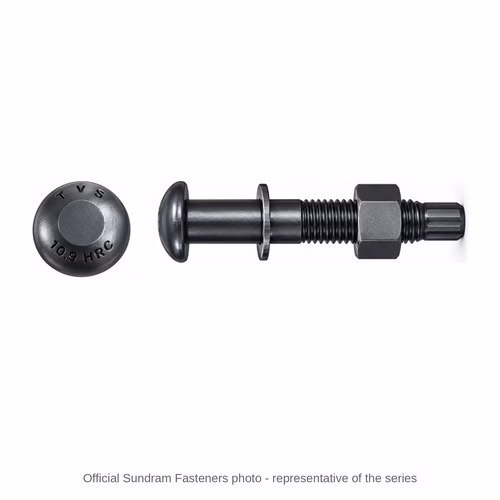

TVS Tension Control Bolt Assembly – bolt, nut and washer, DIN EN 14399-10, grade 10.9

The TVS Sundram Fasteners Tension Control Bolt Assembly is a pre-assembled structural bolting set - a round (cup) head bolt with a splined pintail, a heavy hex nut and a hardened chamfered washer - made by Sundram Fasteners Limited to DIN EN 14399-10 for the bolt and nut and DIN EN 14399-6 / DASt 021 for the washer, grade 10.9; sizes on enquiry (EN 14399-10 covers M12 to M36). It is installed with a shear wrench: the inner socket holds the spline while the outer socket turns the nut, and the pintail shears off at the calibrated torque of the matched, lubricated set, bringing the bolt to its design tension without a torque wrench setting. The bolt, nut and washer are supplied and must be used as one set.

This item is supplied at a price on request; tell us the sizes and lengths you need and we will quote.

Jai Enterprises is an authorised distributor of TVS Sundram Fasteners high tensile fasteners and supplies them from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these three things before you order:

• The joint is a structural steel connection designed for high-strength friction grip bolting to EN 14399, and the site has a shear wrench.
• You want the preload set by the matched set itself (the pintail shears at its calibrated torque) so that inspection is visual.
• Tell us the size: EN 14399-10 covers M12 to M36, and SFL confirms the sizes it offers; the set is grade 10.9 with a class 10 nut and a 300 to 370 HV washer.

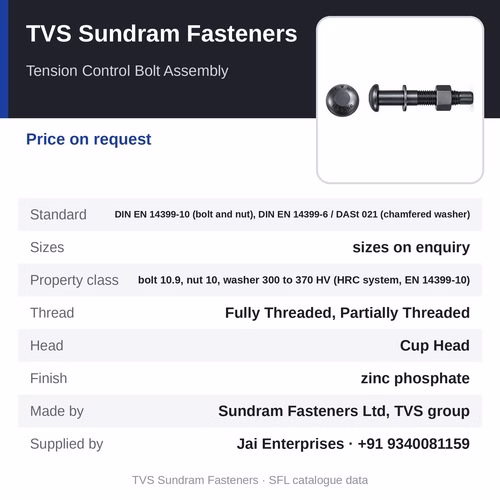

At a glance

• Brand: TVS Sundram Fasteners (Sundram Fasteners Limited, TVS group)
• Product: Tension Control Bolt Assembly
• Standard: DIN EN 14399-10 (bolt and nut), DIN EN 14399-6 / DASt 021 (chamfered washer)
• Head form: Cup Head
• Drive: Shear Wrench
• Sizes: on enquiry (EN 14399-10 covers M12 to M36)
• Thread: fully or partially threaded
• Property class: bolt 10.9, nut 10, washer 300 to 370 HV (HRC system, EN 14399-10)
• Material: Steel
• Surface finish: zinc phosphate
• Forging: cold forging
• Price: price on request - tell us the sizes and lengths
• Supplied by: Jai Enterprises, Bhilai and Raipur - to every district of Chhattisgarh and across India, +91 9340081159

Specifications and dimensions

• Standard: DIN EN 14399-10 (bolt and nut), DIN EN 14399-6 / DASt 021 (chamfered washer)
• Material: high tensile steel; bolt class 10.9 and nut class 10 to EN 14399-10
• Property class: bolt 10.9, nut 10, washer 300 to 370 HV (HRC system, EN 14399-10)
• Surface finish options: zinc phosphate
• Manufacture: cold forging
• Marking: TVS brand mark on the head and the property class mark

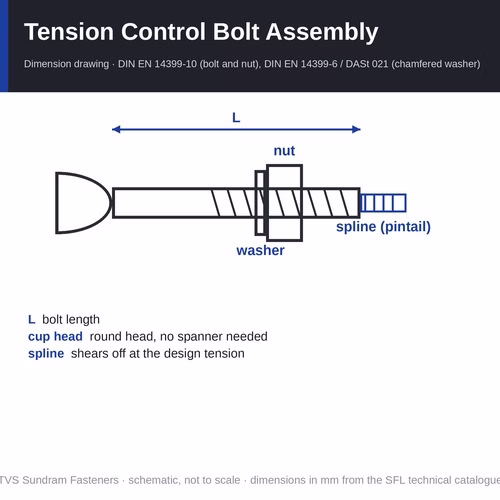

• Dimensions: to EN 14399-10 for the size ordered; ask us for the drawing
• Source: SFL's digital product catalogue

Why choose TVS Sundram Fasteners

• Made by Sundram Fasteners Limited, a TVS group company making high tensile fasteners since 1966: first Indian company with ISO 9000, IATF 16949:2016 certified, Deming Prize 2018 for 17 plants.
• Every lot is backed by a BIS, NABL and ISO/IEC 17025 certified laboratory - tensile, fatigue, torque-tension, salt spray and coating thickness testing - as described in SFL's technical product catalogue (September 2026 edition).
• Made to a named standard - DIN EN 14399-10 (HRC system) - so the set suits any design that calls for EN 14399-10 tension control sets.
• The bolt head and the nut carry their grade marks (10.9 and 10) and the maker's mark, so site inspection is simple.

How to choose and fit

1. Use the set exactly as supplied: the bolt, nut and washer are a matched, lubricated set to EN 14399-10 - do not substitute the nut or washer, do not add lubricant, and do not reuse a bolt once its pintail has sheared.
2. Fit the set with the chamfered washer under the nut, pintail outwards, and bring the joint to snug tight.
3. Engage the shear wrench: the inner socket on the spline, the outer socket on the nut.
4. Run the wrench until the pintail shears off - the bolt is now at its design tension - and keep the sheared tips as the record.
5. Inspect visually: a sheared pintail means the bolt was tensioned; an intact one means it was not.

Where it is used

• steel bridges and flyovers
• high-rise and industrial steel frames
• pre-engineered buildings
• power, cement and steel plant structures

Related products

• TVS Sundram Fasteners HSFG Bolts, IS 3757 - HSFG bolts for torque or part-turn tightening
• TVS Sundram Fasteners HSFG Nuts, IS 6623 - HSFG nuts for IS 3757 sets
• TVS Sundram Fasteners Chamfered Washers, DIN EN 14399-6 - chamfered washers to DIN EN 14399-6

Frequently asked questions

What is the price of Tension Control Bolt Assembly?

It is supplied at a price on request. Send the sizes, grade, finish and quantity to Jai Enterprises on +91 9340081159 and we will quote from the current SFL list.

Do I need special tools?

Yes - a shear wrench (electric or battery) with the inner and outer sockets for the bolt size. The sheared pintails are the inspection record, so keep them until the joint is signed off.

Is TVS Tension Control Bolt Assembly available in Chhattisgarh?

Yes. Jai Enterprises, an authorised distributor of TVS Sundram Fasteners, supplies from Bhilai and Raipur all over Chhattisgarh and across India. Call +91 9340081159 or use the enquiry form.

Can I get a different finish or a non-listed size?

Yes. The standard finish is zinc phosphate; other finishes and sizes or lengths outside the range are quoted on enquiry from SFL.

How to order

Call Jai Enterprises on +91 9340081159 or send an enquiry with the sizes, lengths and quantity of Tension Control Bolt Assembly you need; it is supplied at a price on request. We supply from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.
