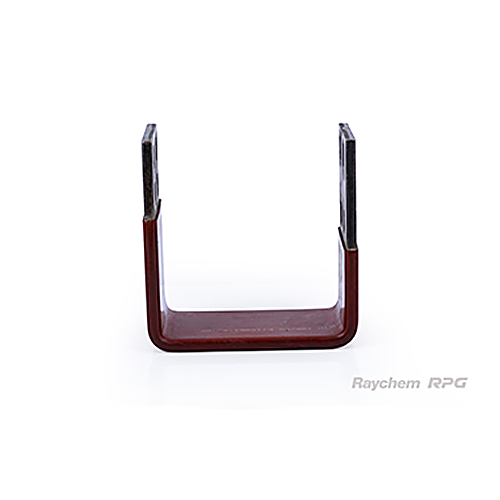

Heat-Shrinkable Busbar Insulation Tubing - BPTM

Raysulate Busbar Insulation Tubing. Flame-retardant, non-halogen busbar insulation up to 25 kV, Ø 6.5-150 mm. 7 part codes, Rs 1,180 - 10,300 per meter.

Rs 1,180 - 10,300

Heat-Shrinkable Busbar Insulation Tubing - BPTM is a Busbar Insulation Tubing from Raysulate (Raychem RPG). 7 part codes, list price Rs 1,180 - 10,300 per meter, effective 01-04-2026, exclusive of taxes. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh - call +91 7300249139 or email support@jaient.in.

BPTM heat-shrinkable busbar insulation tubing provides high-integrity insulation and anti-tracking protection for rectangular and round busbars in switchgear, panels and substations. Rated for systems up to 25 kV and application diameters from 6.5 mm to 150 mm.

Specifications

Brand	Raysulate (Raychem RPG)
Product range	Busbar Insulation Tubing
Model	BPTM
Part codes listed	7
List price	Rs 1,180 - 10,300 per meter, effective 01-04-2026, exclusive of GST
Supplied by	Jai Enterprises, Bhilai and Raipur - across India

Key Features

Suitable for voltage up to 25 kV, application Ø 6.5-150 mm
Excellent flexibility - can be installed on a wide range of curved or bent busbars without cracking or creasing
Exceptional insulation and long term reliability even at high continuous operating temperature
Good thermal emissivity and contact with busbars means no derating is required
Excellent anti-tracking properties
Flame retardant and non-halogen based material

Ordering Information

Size Expanded/Recovered (mm)	Rectangular bars Ø L+T (mm)	Round bars Ø D (mm)	Roll Length (m)	Part Code (PCN)	List Price (INR)
15/6	12-18	6.5-12	30	JAA0090009	1,180
30/12	22-38	13.5-25	30	JAA0090327	1,400
50/20	36-65	22-43	30	JAA0090328	2,010
75/30	55-95	33-63	20	JAA0090329	2,880
100/40	70-130	44-86	25	JAA0090324	3,890
120/50	90-165	55-105	25	JAA0090325	6,160
175/70	125-235	80-150	15	JAA0090326	10,300

Applications

Used in Power and Network, Utility, Oil and Gas Petrochemical, Railways, Automation and Process Control, Cement Industry, Metal Industry.

Frequently Asked Questions

How do I choose the right size of Heat-Shrinkable Busbar Insulation Tubing for my busbar?

Measure the bar first, then pick the part code whose range covers it — rectangular bars are quoted as L+T, covering 12 to 235 mm; round bars by diameter, covering 6.5 to 150 mm. The tubing is supplied expanded and recovers onto the bar, so the bar must sit inside the range: too large and the tube will not pass over it, too small and it will not grip.

What does Heat-Shrinkable Busbar Insulation Tubing - BPTM cost?

List prices run from Rs 1,180 to Rs 10,300 per meter, effective 01-04-2026, exclusive of GST, freight and installation. Project quantities are quoted against the list.

What is the lead time and is it available from stock?

Fast-moving part codes are usually available from stock in Bhilai and Raipur; the rest are called off against Raychem RPG lead times. Call +91 7300249139 or email support@jaient.in with the part code and quantity and we will confirm availability the same working day.

Who supplies Heat-Shrinkable Busbar Insulation Tubing - BPTM in India?

Jai Enterprises is a Raysulate / Raychem RPG distributor supplying Busbar Insulation Tubing across India from Bhilai and Raipur, Chhattisgarh. We support selection, pricing and documentation — call +91 7300249139 or email support@jaient.in.

Raysulate / Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 1.
