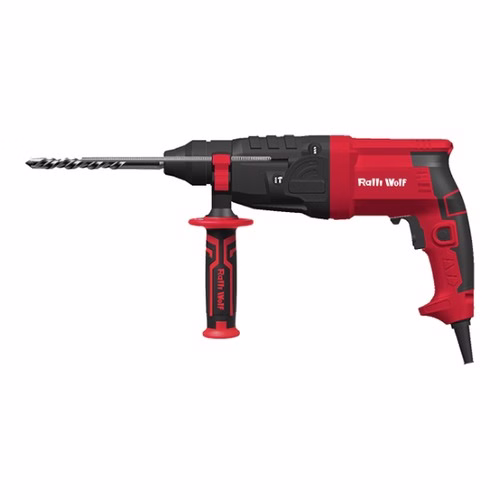

Ralli Wolf RW-22H Rotary Hammer – 22 mm, 650 W, SDS-plus, 2 Modes

The Ralli Wolf RW-22H is a 22 mm SDS-plus rotary hammer for anchor holes, conduit fixings and through-holes in concrete and brick. Its 650 W copper-wound motor delivers 1.5 J per blow at up to 3900 blows a minute, with 0–850 rpm rotation under a variable-speed, reversible switch. Two modes — drilling and hammer drilling — cover concrete, steel and wood; a safety clutch protects you and the machine if the bit jams; and the gearbox runs in sealed grease. It weighs 2.7 kg.

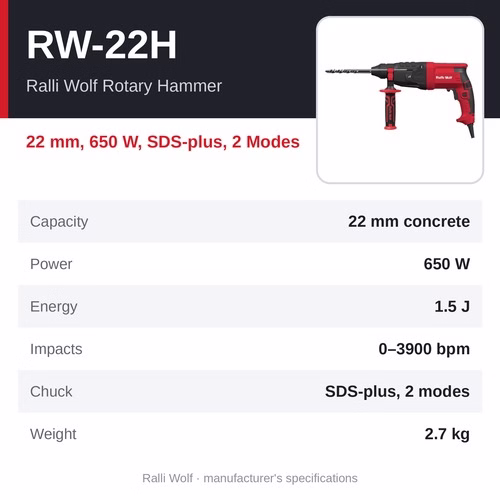

At a glance

• Capacity: 22 mm concrete
• Power: 650 W
• Energy: 1.5 J
• Impacts: 0–3900 bpm
• Chuck: SDS-plus, 2 modes
• Weight: 2.7 kg

Why choose the RW-22H

• Strong impact
• Lubricated by sealed grease
• Variable speed with forward / reverse
• Copper-wound motor
• Safety clutch protects user and machine
• Ralli Wolf — an Indian power-tool maker with more than 60 years in the trade. Ralli Wolf Industries Ltd. began in technical collaboration with Wolf of the UK, makes its tools at an ISO 9001:2015 certified plant in MIDC Ahmednagar, Maharashtra, and backs them with more than 30 service locations across India.

Specifications

• Model: RW-22H
• Product: Ralli Wolf Rotary Hammer
• Rated power: 650 W
• Drilling capacity (concrete): 22 mm
• Impact rate: 0–3900 bpm
• Impact energy: 1.5 J
• No-load speed: 0–850 rpm
• Switch: variable speed and reversible
• Tool holder: SDS-plus
• Modes: 2 (drilling, hammer drilling)
• Full-load current: 2.9 A
• Insulation: double insulated
• Weight: 2.7 kg
• Brand: Ralli Wolf (Ralli Wolf Industries Ltd., India)

Rotary hammer or demolition hammer?

A rotary hammer drills holes in concrete and masonry with SDS-plus bits; the higher its impact energy (in joules), the faster and larger the holes it drills. Models with a third mode also chisel. A demolition (breaker) hammer only chisels: it is for breaking slabs, floors and walls, and its heavier body and higher impact energy do the work. Let the tool's weight do the work, and keep the bit or chisel shank greased.

Where it is used

• Anchor and fastener holes in concrete and brick
• Through-holes for cables, conduits and pipes in walls and slabs
• Mounting brackets, cable trays, railings and machine bases
• Drilling in steel and wood with the hammer action switched off

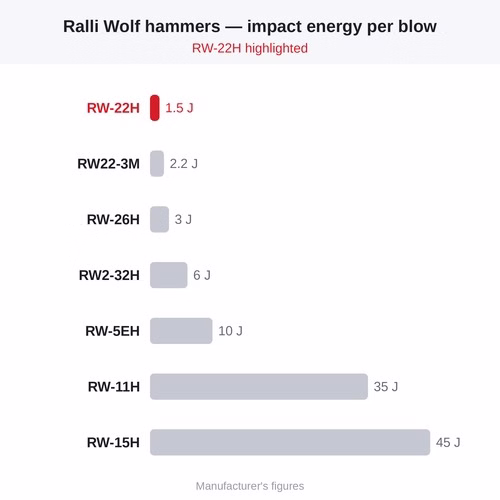

Which Ralli Wolf rotary or demolition hammer is right for you?

• RW-22H (this page) — 22 mm, 650 W, SDS-plus, 2 Modes
• RW22-3M — 22 mm, 800 W, SDS-plus, 3 Modes
• RW-26H — 26 mm, 800 W, 3 J, SDS-plus, 3 Modes
• RW2-32H — 32 mm, 1150 W, 6 J, SDS-plus, 2 Modes
• RW-5EH — 5 kg Class, 1200 W, 10 J, 17 mm Hex
• RW-11H — 11 kg, 1500 W, 35 J, SDS-max
• RW-15H — 15 kg, 1500 W, 45 J, 30 mm Hex
• See all Ralli Wolf rotary and demolition hammers

Related products

• Ralli Wolf diamond core drills
• Ralli Wolf drills, drivers and impact wrenches
• Ralli Wolf wall chasers, sanders and polishers

Frequently asked questions

Which should I choose — the RW-22H or the RW22-3M?

The Ralli Wolf RW22-3M has the same 22 mm capacity with 800 W, 2.2 J and a third, chiselling mode at 2.5 kg; the RW-22H is the 2-mode, 650 W version.

What bits does the RW-22H take?

SDS-plus drill bits — SDS-plus shanks lock in without a chuck key. Its maximum hole size in concrete is 22 mm.

Can the RW-22H chisel?

No — it has two modes (drilling and hammer drilling). For chiselling choose a 3-mode model such as the Ralli Wolf RW22-3M or a demolition hammer.

What is the price of the Ralli Wolf RW-22H, and where can I buy it?

Prices depend on quantity and current Ralli Wolf pricing, so they are quoted on request. Jai Enterprises supplies Ralli Wolf tools from Bhilai and Raipur, Chhattisgarh, to sites across India — call +91 9340081159 or send an enquiry from this page with the quantity and delivery location.
