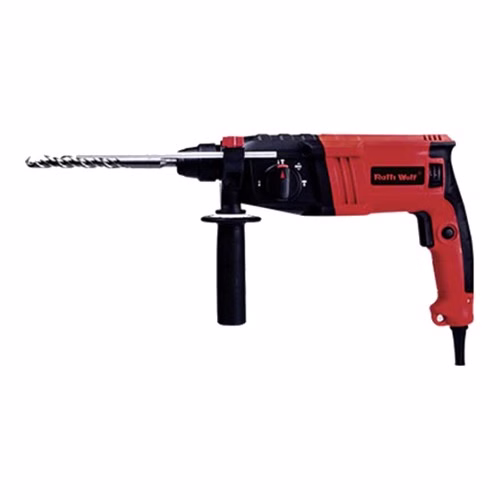

Ralli Wolf RW22-3M Rotary Hammer – 22 mm, 800 W, SDS-plus, 3 Modes

The Ralli Wolf RW22-3M is a three-mode SDS-plus rotary hammer: drill, hammer-drill and chisel. Its 800 W copper-wound motor gives 2.2 J of impact energy at up to 4400 blows a minute and 0–1400 rpm, so it drills 22 mm holes in concrete quickly and switches to chiselling for chases, tile removal and light chipping. A safety clutch, sealed-grease lubrication and variable speed with reverse are standard, and at 2.5 kg it is the lightest rotary hammer in the range.

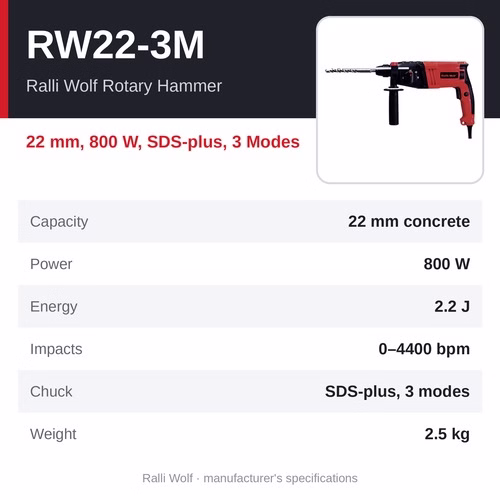

At a glance

• Capacity: 22 mm concrete
• Power: 800 W
• Energy: 2.2 J
• Impacts: 0–4400 bpm
• Chuck: SDS-plus, 3 modes
• Weight: 2.5 kg

Why choose the RW22-3M

• Three modes: drill, hammer drill and chisel
• Copper-wound motor
• Safety clutch protects user and machine
• Lubricated by sealed grease
• Variable speed with forward / reverse
• Ralli Wolf — an Indian power-tool maker with more than 60 years in the trade. Ralli Wolf Industries Ltd. began in technical collaboration with Wolf of the UK, makes its tools at an ISO 9001:2015 certified plant in MIDC Ahmednagar, Maharashtra, and backs them with more than 30 service locations across India.

Specifications

• Model: RW22-3M
• Product: Ralli Wolf Rotary Hammer
• Rated power: 800 W
• Rated voltage: 235 V, 50 Hz
• Drilling capacity (concrete): 22 mm
• Impact rate: 0–4400 bpm
• Impact energy: 2.2 J
• No-load speed: 0–1400 rpm
• Tool holder: SDS-plus
• Modes: 3 (drilling, hammer drilling, chiselling)
• Full-load current: 2.6 A
• Insulation: double insulated
• Weight: 2.5 kg
• Brand: Ralli Wolf (Ralli Wolf Industries Ltd., India)

Rotary hammer or demolition hammer?

A rotary hammer drills holes in concrete and masonry with SDS-plus bits; the higher its impact energy (in joules), the faster and larger the holes it drills. Models with a third mode also chisel. A demolition (breaker) hammer only chisels: it is for breaking slabs, floors and walls, and its heavier body and higher impact energy do the work. Let the tool's weight do the work, and keep the bit or chisel shank greased.

Where it is used

• Anchor and fastener holes in concrete and brick
• Through-holes for cables, conduits and pipes in walls and slabs
• Mounting brackets, cable trays, railings and machine bases
• Drilling in steel and wood with the hammer action switched off

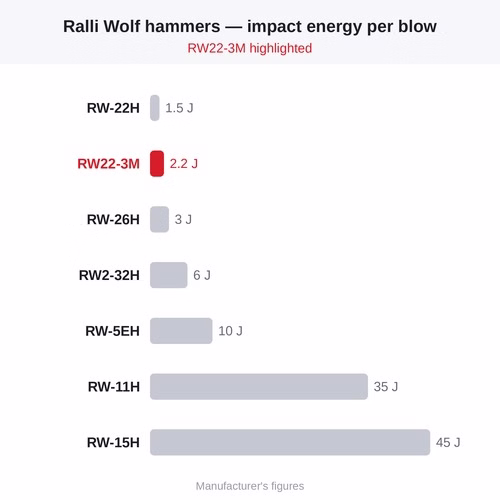

Which Ralli Wolf rotary or demolition hammer is right for you?

• RW-22H — 22 mm, 650 W, SDS-plus, 2 Modes
• RW22-3M (this page) — 22 mm, 800 W, SDS-plus, 3 Modes
• RW-26H — 26 mm, 800 W, 3 J, SDS-plus, 3 Modes
• RW2-32H — 32 mm, 1150 W, 6 J, SDS-plus, 2 Modes
• RW-5EH — 5 kg Class, 1200 W, 10 J, 17 mm Hex
• RW-11H — 11 kg, 1500 W, 35 J, SDS-max
• RW-15H — 15 kg, 1500 W, 45 J, 30 mm Hex
• See all Ralli Wolf rotary and demolition hammers

Related products

• Ralli Wolf diamond core drills
• Ralli Wolf drills, drivers and impact wrenches
• Ralli Wolf wall chasers, sanders and polishers

Frequently asked questions

Which should I choose — the RW22-3M or the RW-26H?

The Ralli Wolf RW-26H steps up to 26 mm holes in concrete and 3 J at 3.1 kg; the RW22-3M is lighter (2.5 kg) and hits faster (4400 bpm) for 22 mm work.

What bits does the RW22-3M take?

SDS-plus drill bits and chisels — SDS-plus shanks lock in without a chuck key. Its maximum hole size in concrete is 22 mm.

Can the RW22-3M chisel?

Yes — it has a chiselling mode for chases, tile removal and light chipping.

What is the price of the Ralli Wolf RW22-3M, and where can I buy it?

Prices depend on quantity and current Ralli Wolf pricing, so they are quoted on request. Jai Enterprises supplies Ralli Wolf tools from Bhilai and Raipur, Chhattisgarh, to sites across India — call +91 9340081159 or send an enquiry from this page with the quantity and delivery location.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
