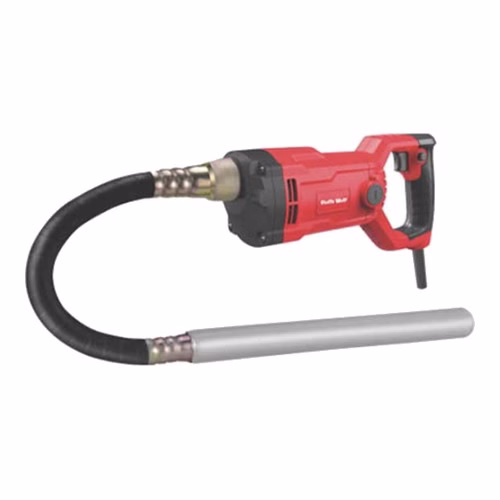

Ralli Wolf RW-CV35-3 Concrete Vibrator – 1100 W, 35 mm × 3 m Needle, 4400 rpm

The Ralli Wolf RW-CV35-3 is the long-reach version of Ralli Wolf's concrete vibrator: a 3 m hose with a 35 mm needle, driven at up to 4400 rpm by an 1100 W, 100% copper motor. The extra length reaches the bottom of deep columns, walls and foundations from the top of the formwork. An aluminium gearbox, a rear D-handle, quick-change carbon brushes and a lock-on button make it practical for long pours, and it weighs 2.4 kg.

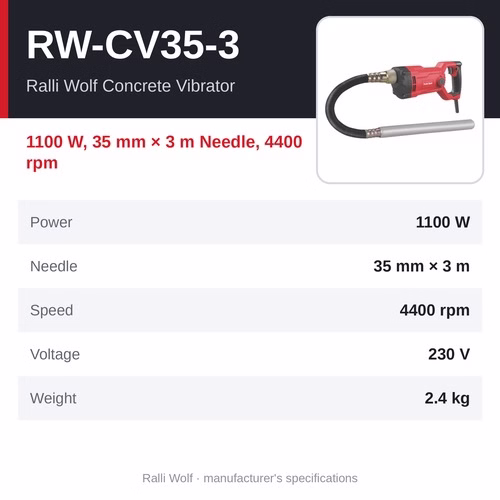

At a glance

• Power: 1100 W
• Needle: 35 mm × 3 m
• Speed: 4400 rpm
• Voltage: 230 V
• Weight: 2.4 kg

Why choose the RW-CV35-3

• 100% copper motor — up to 4400 rpm
• Rear D-handle for stable, safe operation
• Aluminium gearbox for long life
• Quick-change carbon brushes
• Lock-on button for extended use
• Ralli Wolf — an Indian power-tool maker with more than 60 years in the trade. Ralli Wolf Industries Ltd. began in technical collaboration with Wolf of the UK, makes its tools at an ISO 9001:2015 certified plant in MIDC Ahmednagar, Maharashtra, and backs them with more than 30 service locations across India.

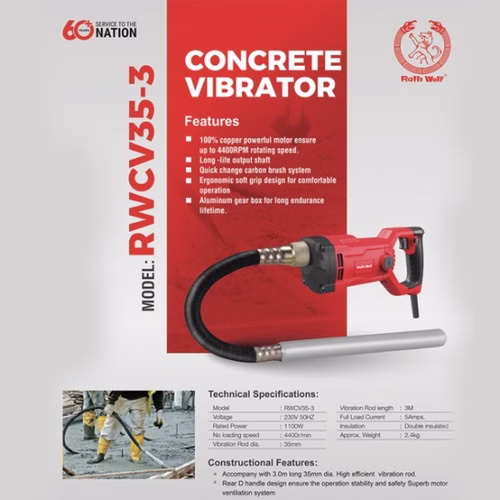

Specifications

• Model: RW-CV35-3
• Product: Ralli Wolf Concrete Vibrator
• Rated power: 1100 W
• Rated voltage: 230 V, 50 Hz
• Vibration rod (needle): 35 mm diameter × 3 m long
• No-load speed: 4400 rpm
• Full-load current: 5 A
• Insulation: double insulated
• Weight: 2.4 kg
• Brand: Ralli Wolf (Ralli Wolf Industries Ltd., India)

How a needle vibrator compacts concrete

The motor spins the needle, which vibrates and drives trapped air out of freshly poured concrete so it fills the formwork and wraps the reinforcement. Lower the needle vertically, hold it until air bubbles stop rising, then withdraw it slowly; insert it again about 1.5 times its radius of action away. Avoid touching the formwork or bending the hose sharply.

Where it is used

• Slabs, beams and columns on building sites
• Foundations and footings
• Precast work and small civil jobs

Which Ralli Wolf concrete vibrator is right for you?

• RW-CV35 — 850 W, 35 mm × 1.5 m Needle, 4000 rpm
• RW-CV35-3 (this page) — 1100 W, 35 mm × 3 m Needle, 4400 rpm
• See all Ralli Wolf concrete vibrators

Related products

• Ralli Wolf paint mixers
• Ralli Wolf rotary and demolition hammers
• Ralli Wolf diamond core drills

Frequently asked questions

Which should I choose — the RW-CV35-3 or the RW-CV35?

Choose the RW-CV35-3 for its 3 m reach and stronger 1100 W motor; the Ralli Wolf RW-CV35 (1.5 m hose, 850 W, 2 kg) is lighter for slabs and small pours.

How long is the needle on the RW-CV35-3?

The vibration rod (needle) is 35 mm diameter × 3 m long.

How long should the needle stay in one place?

Only until air bubbles stop rising and the surface turns glossy — usually a few seconds to about 15 seconds — then withdraw it slowly. Over-vibrating can make the heavy aggregate settle and bring water to the top.

What is the price of the Ralli Wolf RW-CV35-3, and where can I buy it?

Prices depend on quantity and current Ralli Wolf pricing, so they are quoted on request. Jai Enterprises supplies Ralli Wolf tools from Bhilai and Raipur, Chhattisgarh, to sites across India — call +91 9340081159 or send an enquiry from this page with the quantity and delivery location.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
