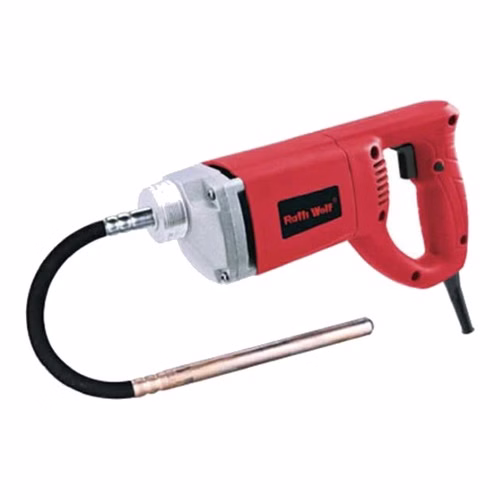

Ralli Wolf RW-CV35 Concrete Vibrator – 850 W, 35 mm × 1.5 m Needle, 4000 rpm
850 W electric concrete vibrator with a 35 mm × 1.5 m needle at 4000 rpm — lock-on button, wire-braided hose, double insulated, 2 kg.
Request price
The Ralli Wolf RW-CV35 is a handheld electric concrete vibrator that compacts fresh concrete in slabs, beams and columns. An 850 W copper-armature motor spins a 35 mm needle on a 1.5 m wire-braided hose at 4000 rpm, driving out trapped air so the concrete fills the formwork. A lock-on feature — press the start and lock buttons together — lets it run all day without holding the switch. It is double insulated and weighs just 2 kg.
At a glance
- Power: 850 W
- Needle: 35 mm × 1.5 m
- Speed: 4000 rpm
- Voltage: 230 V
- Weight: 2 kg
Why choose the RW-CV35
- Copper-armature 850 W motor
- Lock-on button for all-day running
- Wire-braided needle hose for durability
- Ergonomic grip; long-life output shaft
- Ralli Wolf — an Indian power-tool maker with more than 60 years in the trade. Ralli Wolf Industries Ltd. began in technical collaboration with Wolf of the UK, makes its tools at an ISO 9001:2015 certified plant in MIDC Ahmednagar, Maharashtra, and backs them with more than 30 service locations across India.

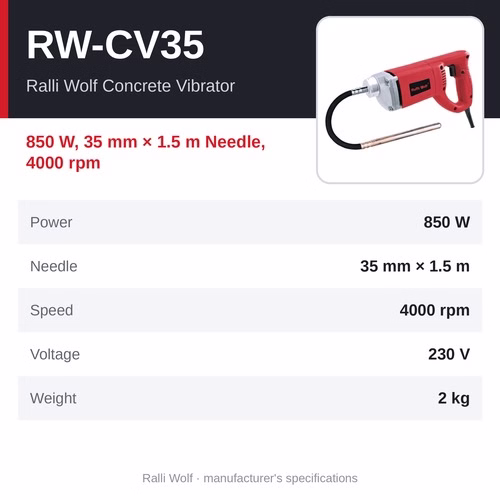

Specifications
- Model: RW-CV35
- Product: Ralli Wolf Concrete Vibrator
- Rated power: 850 W
- Rated voltage: 230 V, 50 Hz
- Vibration rod (needle): 35 mm diameter × 1.5 m long
- No-load speed: 4000 rpm
- Full-load current: 3.7 A
- Insulation: double insulated
- Weight: 2 kg
- Brand: Ralli Wolf (Ralli Wolf Industries Ltd., India)
How a needle vibrator compacts concrete
The motor spins the needle, which vibrates and drives trapped air out of freshly poured concrete so it fills the formwork and wraps the reinforcement. Lower the needle vertically, hold it until air bubbles stop rising, then withdraw it slowly; insert it again about 1.5 times its radius of action away. Avoid touching the formwork or bending the hose sharply.
Where it is used
- Slabs, beams and columns on building sites
- Foundations and footings
- Precast work and small civil jobs
Which Ralli Wolf concrete vibrator is right for you?
- RW-CV35 (this page) — 850 W, 35 mm × 1.5 m Needle, 4000 rpm
- RW-CV35-3 — 1100 W, 35 mm × 3 m Needle, 4400 rpm
- See all Ralli Wolf concrete vibrators
Related products
Frequently asked questions
Which should I choose — the RW-CV35 or the RW-CV35-3?
The Ralli Wolf RW-CV35-3 has a 3 m hose and a stronger 1100 W motor at 4400 rpm for deeper pours and longer reach; the RW-CV35 (1.5 m, 850 W, 2 kg) is the lighter choice for slabs and small pours.
How long is the needle on the RW-CV35?
The vibration rod (needle) is 35 mm diameter × 1.5 m long.
How long should the needle stay in one place?
Only until air bubbles stop rising and the surface turns glossy — usually a few seconds to about 15 seconds — then withdraw it slowly. Over-vibrating can make the heavy aggregate settle and bring water to the top.
What is the price of the Ralli Wolf RW-CV35, and where can I buy it?
Prices depend on quantity and current Ralli Wolf pricing, so they are quoted on request. Jai Enterprises supplies Ralli Wolf tools from Bhilai and Raipur, Chhattisgarh, to sites across India — call +91 9340081159 or send an enquiry from this page with the quantity and delivery location.
How to order
Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
