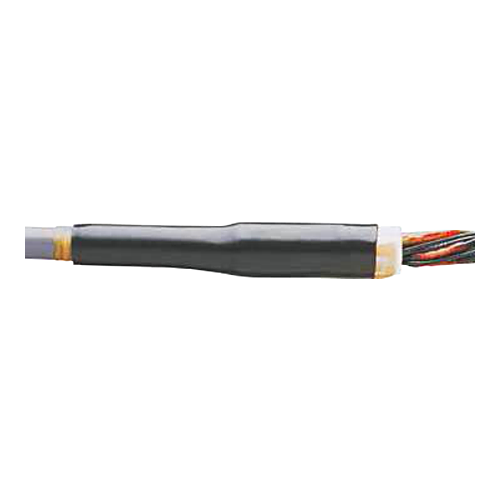

Straight Through Joint - Model ECKJ
Raychem RPG 1.1 kV Heat Shrinkable Straight Through Joints. 44 part codes, Rs 4,240 - 13,450 per unit.
Rs 4,240 - 13,450
Straight Through Joint - Model ECKJ is a 1.1 kV cable jointing kit range from Raychem RPG. It is supplied as 44 separate items, one for each cable size and core count, covering 2 to 75 sq mm. Each item has its own part code and its own price - Rs 4,240 to Rs 13,450 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-1 / EN 50393
- Suitable for voltage upto 1.1 kV, cable range of 1.5 & 2.5 Sq. mm
- Suitable for Multicore Control Cables
- Built-in tin plated Cu earthing braid
- Connector Type - Cu Crimp
- Sleeve type: Tubular
All 44 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 2 | 1.5 sq. mm | AAA2104001 | 4,240 | View AAA2104001 |
| 2 | 2.5 sq. mm | AAA2106012 | 4,270 | View AAA2106012 |
| 3 | 1.5 sq. mm | AAA2104003 | 4,350 | View AAA2104003 |
| 3 | 2.5 sq. mm | AAA2106014 | 4,380 | View AAA2106014 |
| 4 | 1.5 sq. mm | AAA2104005 | 4,430 | View AAA2104005 |
| 4 | 2.5 sq. mm | AAA2106016 | 4,460 | View AAA2106016 |
| 5 | 1.5 sq. mm | AAA2104008 | 4,490 | View AAA2104008 |
| 5 | 2.5 sq. mm | AAA2106018 | 4,510 | View AAA2106018 |
| 6 | 1.5 sq. mm | AAA2104011 | 4,540 | View AAA2104011 |
| 6 | 2.5 sq. mm | AAA2106022 | 4,570 | View AAA2106022 |
| 7 | 1.5 sq. mm | AAA2104012 | 4,540 | View AAA2104012 |
| 7 | 2.5 sq. mm | AAA2106023 | 4,570 | View AAA2106023 |
| 8 | 1.5 sq. mm | AAA2104023 | 4,680 | View AAA2104023 |
| 8 | 2.5 sq. mm | AAA2106030 | 4,710 | View AAA2106030 |
| 9 | 2.5 sq. mm | AAA2106031 | 4,760 | View AAA2106031 |
| 10 | 1.5 sq. mm | AAA2104015 | 4,840 | View AAA2104015 |
| 10 | 2.5 sq. mm | AAA2106024 | 4,870 | View AAA2106024 |
| 12 | 1.5 sq. mm | AAA2104017 | 5,060 | View AAA2104017 |
| 12 | 2.5 sq. mm | AAA2106026 | 5,120 | View AAA2106026 |
| 14 | 1.5 sq. mm | AAA2104020 | 5,230 | View AAA2104020 |
| 14 | 2.5 sq. mm | AAA2106027 | 5,260 | View AAA2106027 |
| 16 | 1.5 sq. mm | AAA2104068 | 7,350 | View AAA2104068 |
| 16 | 2.5 sq. mm | AAA2106032 | 7,370 | View AAA2106032 |
| 19 | 1.5 sq. mm | AAA2104025 | 7,570 | View AAA2104025 |
| 19 | 2.5 sq. mm | AAA2106035 | 7,590 | View AAA2106035 |
| 20 | 2.5 sq. mm | AAA2106037 | 7,920 | View AAA2106037 |
| 21 | 1.5 sq. mm | AAA2104028 | 8,170 | View AAA2104028 |
| 21 | 2.5 sq. mm | AAA2106038 | 8,200 | View AAA2106038 |
| 24 | 1.5 sq. mm | AAA2104029 | 8,250 | View AAA2104029 |
| 24 | 2.5 sq. mm | AAA2106040 | 8,280 | View AAA2106040 |
| 27 | 1.5 sq. mm | AAA2104030 | 8,560 | View AAA2104030 |
| 27 | 2.5 sq. mm | AAA2106044 | 8,580 | View AAA2106044 |
| 30 | 1.5 sq. mm | AAA2104032 | 8,860 | View AAA2104032 |
| 30 | 2.5 sq. mm | AAA2106045 | 8,890 | View AAA2106045 |
| 32 | 2.5 sq. mm | AAA2106046 | 9,270 | View AAA2106046 |
| 37 | 1.5 sq. mm | AAA2104035 | 9,660 | View AAA2104035 |
| 37 | 2.5 sq. mm | AAA2106047 | 9,710 | View AAA2106047 |
| 40 | 1.5 sq. mm | AAA2103010 | 10,100 | View AAA2103010 |
| 40 | 2.5 sq. mm | AAA2106048 | 10,100 | View AAA2106048 |
| 48 | 1.5 sq. mm | AAA2104038 | 11,500 | View AAA2104038 |
| 50 | 2.5 sq. mm | AAA2106051 | 12,200 | View AAA2106051 |
| 61 | 1.5 sq. mm | AAA2104041 | 12,800 | View AAA2104041 |
| 75 | 1.5 sq. mm | AAA2104043 | 13,400 | View AAA2104043 |
| 75 | 2.5 sq. mm | AAA2106052 | 13,450 | View AAA2106052 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Straight Through Joint - Model RLVJ — the Model RLVJ variant
- Straight Through Joint - Model LVC — the Model LVC variant
- Straight Through Joint - Model EPKJ — the Model EPKJ variant
- Straight Through Joint - Model SFKJ — the Model SFKJ variant
- Straight Through Joint - Model RVSJ-M - Al Mechanical Connector — the Al Mechanical Connector variant
- Straight Through Joint - Model RVSJ-C - Al Crimp Connector — the Al Crimp Connector variant
Frequently Asked Questions
How do I choose the right Straight Through Joint for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 2 to 75 sq mm. Each size has its own part code; order the one whose range brackets your cable.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 21.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
