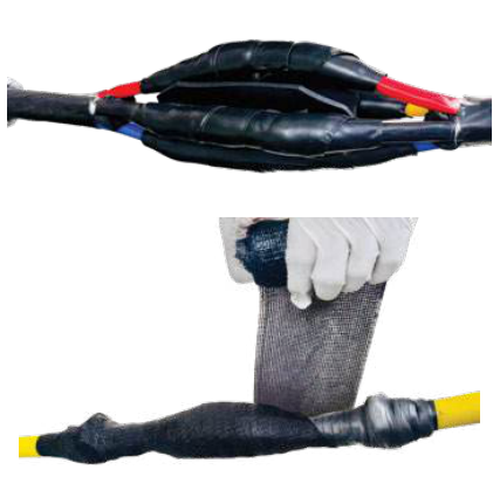

Straight Through Joint - Model LVC
Raychem RPG 1.1 kV Cold Applied Straight Through Joints. 28 part codes, Rs 2,310 - 8,250 per unit.
Rs 2,310 - 8,250
Straight Through Joint - Model LVC is a 1.1 kV cable jointing kit range from Raychem RPG. It is supplied as 28 separate items, one for each cable size and core count, covering 6 to 400 sq mm. Each item has its own part code and its own price - Rs 2,310 to Rs 8,250 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Kit comes with Cold Applied unique mastic coated insulating tape and cold applied armour cast tape
- Suitable for voltage upto 1.1kV, Several sizes cover wide range of cable from 6-400 Sq.mm.
- Conforms to IS 13573-1 / EN 50393
- Suitable for XLPE / PVC Power Cable
- Connector Type- Al Crimp
- Aluminium Earth braid
All 28 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 6 | Aluminium 3.5 Core | EPALVM1002 | 2,310 | View EPALVM1002 |
| 6 | Aluminium 4 Core | EPALVM1016 | 2,480 | View EPALVM1016 |
| 10 | Aluminium 3.5 Core | EPALVM1003 | 2,310 | View EPALVM1003 |
| 10 | Aluminium 4 Core | EPALVM1017 | 2,480 | View EPALVM1017 |
| 16 | Aluminium 3.5 Core | EPALVM1004 | 2,310 | View EPALVM1004 |
| 16 | Aluminium 4 Core | EPALVM1018 | 2,480 | View EPALVM1018 |
| 25 | Aluminium 3.5 Core | EPALVM1005 | 2,310 | View EPALVM1005 |
| 25 | Aluminium 4 Core | EPALVM1019 | 2,480 | View EPALVM1019 |
| 35 | Aluminium 3.5 Core | EPALVM1006 | 3,180 | View EPALVM1006 |
| 35 | Aluminium 4 Core | EPALVM1020 | 3,590 | View EPALVM1020 |
| 50 | Aluminium 3.5 Core | EPALVM1007 | 3,990 | View EPALVM1007 |
| 50 | Aluminium 4 Core | EPALVM1021 | 4,390 | View EPALVM1021 |
| 70 | Aluminium 3.5 Core | EPALVM1008 | 4,800 | View EPALVM1008 |
| 70 | Aluminium 4 Core | EPALVM1022 | 5,170 | View EPALVM1022 |
| 95 | Aluminium 3.5 Core | EPALVM1009 | 4,880 | View EPALVM1009 |
| 95 | Aluminium 4 Core | EPALVM1023 | 5,240 | View EPALVM1023 |
| 120 | Aluminium 3.5 Core | EPALVM1010 | 4,950 | View EPALVM1010 |
| 120 | Aluminium 4 Core | EPALVM1024 | 5,320 | View EPALVM1024 |
| 150 | Aluminium 3.5 Core | EPALVM1011 | 5,020 | View EPALVM1011 |
| 150 | Aluminium 4 Core | EPALVM1025 | 5,470 | View EPALVM1025 |
| 185 | Aluminium 3.5 Core | EPALVM1012 | 5,140 | View EPALVM1012 |
| 185 | Aluminium 4 Core | EPALVM1026 | 5,500 | View EPALVM1026 |
| 240 | Aluminium 3.5 Core | EPALVM1013 | 5,170 | View EPALVM1013 |
| 240 | Aluminium 4 Core | EPALVM1027 | 5,540 | View EPALVM1027 |
| 300 | Aluminium 3.5 Core | EPALVM1014 | 6,050 | View EPALVM1014 |
| 300 | Aluminium 4 Core | EPALVM1028 | 6,490 | View EPALVM1028 |
| 400 | Aluminium 3.5 Core | EPALVM1015 | 7,920 | View EPALVM1015 |
| 400 | Aluminium 4 Core | EPALVM1029 | 8,250 | View EPALVM1029 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Straight Through Joint - Model RLVJ — the Model RLVJ variant
- Straight Through Joint - Model EPKJ — the Model EPKJ variant
- Straight Through Joint - Model SFKJ — the Model SFKJ variant
- Straight Through Joint - Model ECKJ — the Model ECKJ variant
- Straight Through Joint - Model RVSJ-M - Al Mechanical Connector — the Al Mechanical Connector variant
- Straight Through Joint - Model RVSJ-C - Al Crimp Connector — the Al Crimp Connector variant
Frequently Asked Questions
How do I choose the right Straight Through Joint for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 6 to 400 sq mm. Each size has its own part code; order the one whose range brackets your cable.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 18.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
