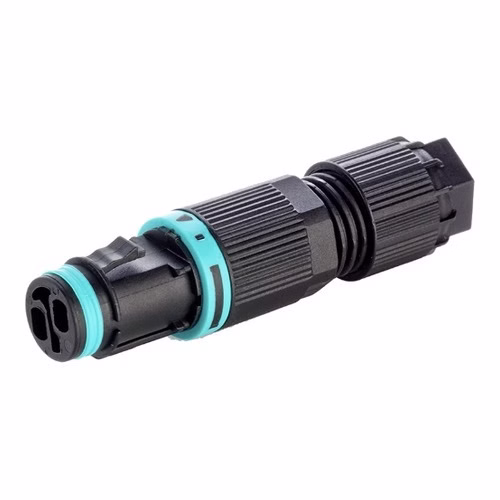

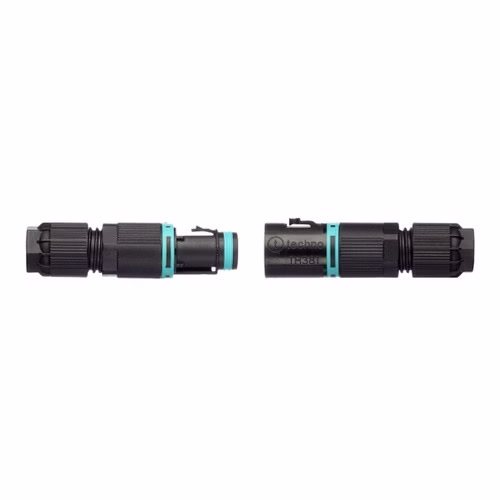

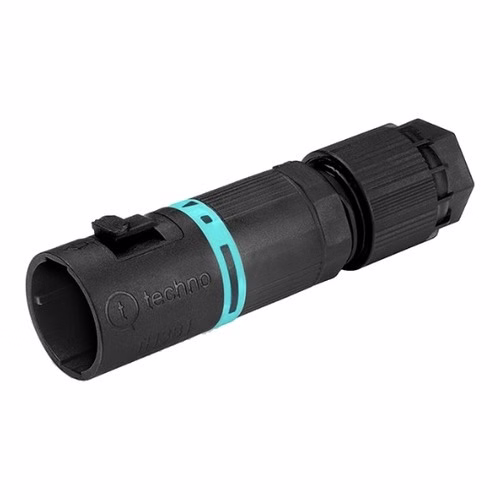

Techno TH381 - IP68 Micro Plug-and-Socket Connectors, Push-Pull, 2 and 3 Poles

Techno TH381 is a micro plug-and-socket connector for cable-to-cable connections: Ø 14 mm, push-pull locking and an IP66 / IP68 seal. Techno s.r.l., of Guanzate near Como in Italy, designs and makes waterproof electrical connectors - the Tee Tube joints, Tee Plug plug-and-socket connectors and Tee Box junction boxes - for outdoor lighting and installations exposed to water and dust.

Four items: 2- and 3-pole plugs and sockets. The 2-pole items come for 4.5-5.5 mm cable or, in the .L version, 5.4-7.9 mm. Each has its own page with its codes and price.

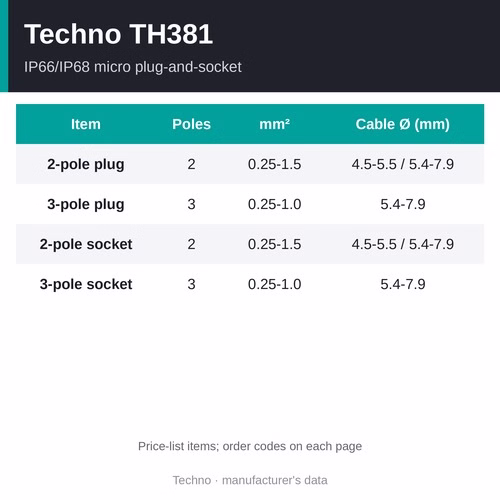

Choose your TH381

Prices are list prices per piece; each page gives the order codes.

• TH381 2-pole plug - 2 poles, 0.25-1.5 mm², 10 A AC/DC, cable diameter 4.5-5.5 or 5.4-7.9 mm - Rs 1,195 per piece
• TH381 3-pole plug - 3 poles, 0.25-1.0 mm², 10 A AC/DC, cable diameter 5.4-7.9 mm - Rs 1,230 per piece
• TH381 2-pole socket - 2 poles, 0.25-1.5 mm², 10 A AC/DC, cable diameter 4.5-5.5 or 5.4-7.9 mm - Rs 1,195 per piece
• TH381 3-pole socket - 3 poles, 0.25-1.0 mm², 10 A AC/DC, cable diameter 5.4-7.9 mm - Rs 1,230 per piece

How to choose

Pick the pole count and then the plug and the socket - a connection needs one of each. For the 2-pole items, choose the standard code for 4.5-5.5 mm cable or the .L code for 5.4-7.9 mm.

At a glance

• Items: 2- and 3-pole plugs and sockets
• Rating: 10 A AC/DC; 500 V AC or 3-60 V DC
• Conductors: 0.25-1.5 mm²
• Size: Ø 14 x 53 mm each; Ø 14 x 90 mm mated
• Degree of protection: IP66 / IP68
• Price: Rs 1,195 - 1,230 per piece

Technical data (common to the TH381 range)

• Configuration: micro plug-and-socket connector, cable-to-cable
• Coupling: push-pull
• Terminal screws: M2, 0.2 Nm (3-pole: hex grub screw, M2 0.1 Nm)
• Mating cycles: 100 mating cycles
• Class II insulation: 250 V (Class II, supplementary/reinforced insulation)
• Rated impulse voltage: 4 kV
• Insulation coordination: overvoltage category II, pollution degree 2
• Temperature range: -40 °C to +125 °C
• Operating temperature: +60 °C max. operating
• Tracking index: PTI 175
• Connector housing: PA66 glass-filled, UL94 V0
• Cable glands: PA66 glass-filled, UL94 V2
• Seals: TPE
• Grommets: TPE
• Contacts: brass
• Screws: steel
• Materials: halogen-free and silicone-free
• Tightening torques: gland to body 1 Nm; gland nut 1.5 Nm
• Corrosion: salt-mist tested to EN 60068-2-11
• Standard: EN 61984:2009

Why choose Techno TH381

• Micro size - Ø 14 mm; plug and socket together measure Ø 14 x 90 mm
• Push-pull locking - connect and disconnect without tools
• IP66 / IP68 - Techno tests at 30 m for 1 hour
• For AC or low-voltage DC - 10 A, 500 V AC or 3-60 V DC
• Class II insulation for 250 V, 4 kV rated impulse voltage
• Halogen-free and silicone-free; built to EN 61984
• Rated for 100 mating cycles

How it is installed

1. Slide the gland nut and seal over the cable, strip the sheath and connect the conductors to the screw terminals of the plug or socket, following the contact marking.
2. Assemble the connector and tighten the gland nut to the stated torque so the seal grips the cable sheath.
3. Mate the plug with its socket and lock the coupling. To disconnect, unlock the coupling and pull the halves apart.

Where it is used

• LED luminaires and low-voltage DC lighting
• Garden and landscape lighting
• Sensors and small outdoor devices
• Signs and displays that need a detachable cable connection

Related products

• Techno TH387 mini plug-and-socket - screw-ring coupling, 3 to 5 poles
• Techno TH405 Tee Plug - bayonet plug-and-socket, 3 to 8 poles
• Techno TH391 in-line connectors - compact IP68 cable-to-cable joints, 3 to 5 poles
• All Techno IP68 waterproof connectors

Frequently asked questions

Do I need a plug and a socket?

Yes - each page is for one piece. A connection needs one plug and one socket of the same pole count.

How does it lock?

Push-pull: push to lock, pull to release.

Can TH381 be used on DC?

Yes - it is rated 10 A AC/DC: 500 V AC or 3-60 V DC, which suits low-voltage LED lighting.

Where can I buy Techno TH381 connectors in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Techno IP68 connectors across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the connectors.
