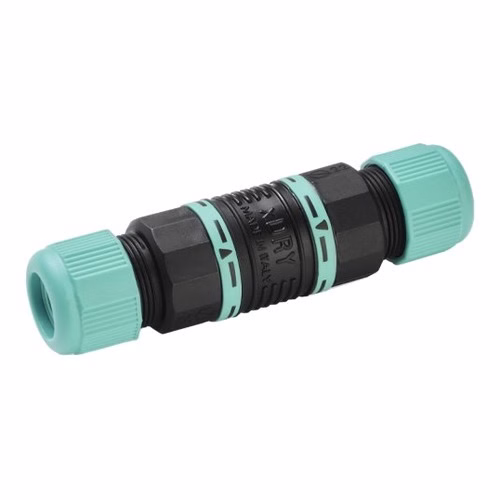

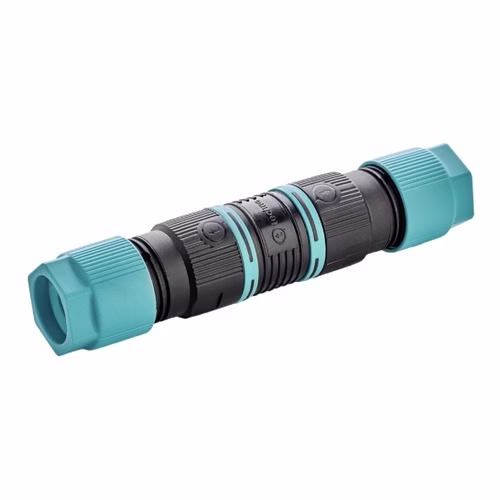

Techno TH391 Mini Tee Tube - IP68 In-Line Cable Connectors, 3, 4 and 5 Poles, Including xDRY

Techno TH391 Mini Tee Tube connectors join two cables end to end inside a compact Ø 23 mm IP68 body, on screw terminals with brass contacts. Techno s.r.l., of Guanzate near Como in Italy, designs and makes waterproof electrical connectors - the Tee Tube joints, Tee Plug plug-and-socket connectors and Tee Box junction boxes - for outdoor lighting and installations exposed to water and dust.

Four items are listed: 3-, 4- and 5-pole, and a 4-pole xDRY version with an anti-condensation barrier. Each comes in a standard body for 7-12 mm cable and a long body (.L) for 7-13.5 mm cable. Each item has its own page with its order codes and price.

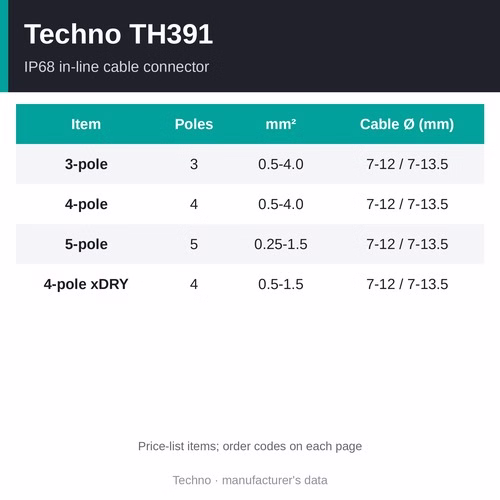

Choose your TH391

Prices are list prices per piece; each page gives the order codes.

• TH391 3-pole - 3 poles, 0.5-4.0 mm², 32 A, cable diameter 7-12 or 7-13.5 mm - Rs 1,355 per piece
• TH391 4-pole - 4 poles, 0.5-4.0 mm², 32 A, cable diameter 7-12 or 7-13.5 mm - Rs 1,445 per piece
• TH391 5-pole - 5 poles, 0.25-1.5 mm², 17.5 A, cable diameter 7-12 or 7-13.5 mm - Rs 2,415 per piece
• TH391 4-pole xDRY - 4 poles, 0.5-1.5 mm², 17.5 A, cable diameter 7-12 or 7-13.5 mm - Rs 2,765 per piece

How to choose

Choose by the number of conductors and their size: 3-pole and 4-pole take 0.5-4.0 mm² at 32 A; 5-pole takes 0.25-1.5 mm² at 17.5 A; the 4-pole xDRY takes 0.5-1.5 mm² at 17.5 A and adds an anti-condensation barrier. Then choose the body by cable diameter: standard for 7-12 mm, long (.L) for 7-13.5 mm.

At a glance

• Items: 3-pole, 4-pole, 5-pole, 4-pole xDRY
• Cable outside diameter: 7-12 mm (standard) or 7-13.5 mm (long body)
• Conductors: 0.25-4.0 mm² by version
• Rating: up to 32 A, 450 V AC
• Degree of protection: IP68
• Price: Rs 1,355 - 2,765 per piece

Technical data (common to the TH391 range)

• Configuration: in-line joint (cable-to-cable)
• Installation: fixed connection, re-openable for inspection
• Terminal screws: M3, 0.8 Nm (5-pole: M2, 0.2 Nm)
• Impact resistance: IK07
• T-marking: T85 °C
• Tracking index: PTI 250
• Connector housing: PA66 glass-filled, UL94 V0
• Cable glands: PA66, UL94 V2
• Seals: TPE
• Grommets: TPE
• Contacts: brass
• Screws: steel
• Materials: halogen-free and silicone-free
• Cable type: H05/H07 flexible cords
• Tightening torques: gland to body 2.0 Nm; gland nut 2.5 Nm
• Corrosion: salt-mist tested to EN 60068-2-11
• Standard: EN 60998-1:2004

Why choose Techno TH391

• IP68 - the joint is sealed against dust and immersion; Techno tests the 3- and 4-pole versions at 30 m for 2 hours
• Compact - Ø 23 mm body, for cables from 7 to 13.5 mm in diameter
• Screw terminals - brass contacts, so the connection is made with an ordinary screwdriver
• Re-openable - a fixed connection that can be opened for inspection
• Tough body - glass-filled PA66 to UL94 V0, impact rated IK07
• Halogen-free and silicone-free; salt-mist tested to EN 60068-2-11
• Built to EN 60998-1

How it is installed

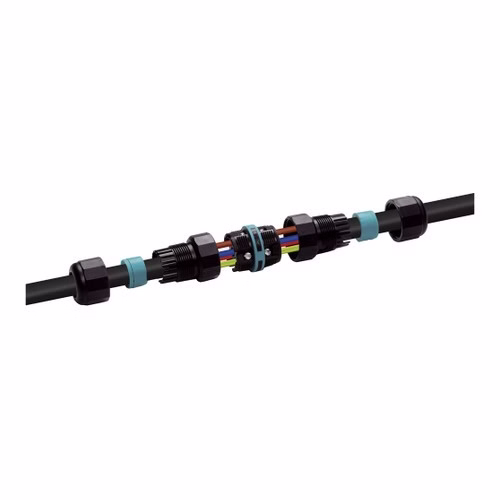

1. Slide the gland nuts and seals over the cable ends, then strip the sheath and the conductors.
2. Connect each conductor to its screw terminal, following the contact marking, and tighten the terminal screws to the stated torque.
3. Screw the glands onto the body and tighten the gland nuts to the stated torques, so the seals grip the cable sheaths and the joint is sealed to IP68.

Where it is used

• Street, garden, path and facade lighting
• In-ground and underwater luminaires, fountains and pools
• LED signage and outdoor displays
• Pumps, irrigation and outdoor equipment
• Cable runs in pits, ducts and other wet locations

Related products

• Techno TH400 in-line joints - IP68 screw joints for 7-17 mm cable
• Techno TH392 "H" distributors - IP68, one cable in and three out
• Techno TH399 Y-branch connectors - IP68 branch joints, 3 to 6 poles
• Techno grommets and adapters - seal smaller or several cables in the glands
• All Techno IP68 waterproof connectors

Frequently asked questions

What is TH391?

Techno's Mini Tee Tube - a compact IP68 in-line connector that joins two cables on screw terminals.

What is xDRY?

Techno's anti-condensation barrier: on top of IP68 sealing, it stops moisture travelling inside the cable from reaching the connection.

What does .L mean in the code?

The long-body version, which takes cable diameters of 7-13.5 mm instead of 7-12 mm.

Where can I buy Techno TH391 connectors in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Techno IP68 connectors across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the connectors.
