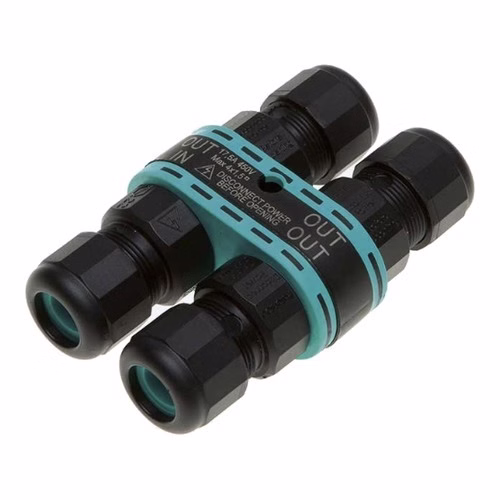

Techno TH392 - IP68 "H" Cable Distributors, One In Three Out, 4 Poles, Including xDRY

Techno TH392 is a compact "H" distributor: one supply cable in and three out, through four sealed cable entries, on screw terminals inside an IP68 body. Techno s.r.l., of Guanzate near Como in Italy, designs and makes waterproof electrical connectors - the Tee Tube joints, Tee Plug plug-and-socket connectors and Tee Box junction boxes - for outdoor lighting and installations exposed to water and dust.

Two items are listed: the long-body THB.392.A4A.L and the xDRY version THB.392.R4A, which adds an anti-condensation barrier. Each has its own page with its price.

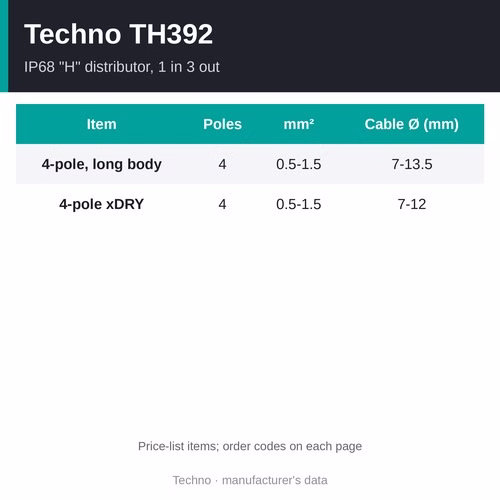

Choose your TH392

Prices are list prices per piece; each page gives the order codes.

• TH392 4-pole, long body - 4 poles, 0.5-1.5 mm², 17.5 A, cable diameter 7-13.5 mm - Rs 4,605 per piece

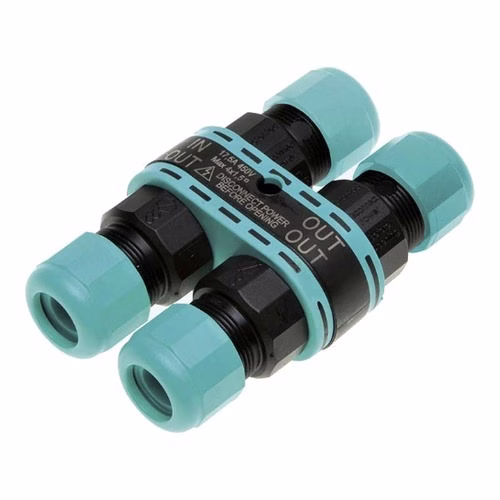

• TH392 4-pole xDRY - 4 poles, 0.5-1.5 mm², 17.5 A, cable diameter 7-12 mm - Rs 5,135 per piece

How to choose

Take THB.392.A4A.L for a standard IP68 distributor for cable diameters of 7-13.5 mm, or THB.392.R4A (xDRY) where moisture can travel inside the cables, for cable diameters of 7-12 mm.

At a glance

• Items: THB.392.A4A.L, THB.392.R4A (xDRY)
• Configuration: 1 in, 3 out - 4 cable entries
• Conductors: 0.5-1.5 mm²
• Rating: 17.5 A, 450 V AC
• Degree of protection: IP68
• Price: Rs 4,605 - 5,135 per piece

Technical data (common to the TH392 range)

• Configuration: 1-in-3-out "H" distributor (4 cable entries)
• Installation: fixed connection, re-openable for inspection
• Terminal screws: M3, 0.8 Nm
• Impact resistance: IK07
• T-marking: T85 °C
• Tracking index: PTI 250
• Connector housing: polyamide, UL94 V0
• Cable glands: PA66, UL94 V2
• Seals: TPE
• Grommets: TPE
• Contacts: brass
• Screws: steel
• Materials: halogen-free and silicone-free
• Cable type: H05/H07 flexible cords
• Tightening torques: gland to body 2.0 Nm; gland nut 2.5 Nm
• Corrosion: salt-mist tested to EN 60068-2-11
• Standard: EN 60998-1:2004

Why choose Techno TH392

• One in, three out - four cable entries in one compact "H" body
• IP68 - sealed against dust and immersion
• Screw terminals - brass contacts, M3 screws
• Re-openable for inspection
• Tough body - polyamide to UL94 V0, impact rated IK07
• Halogen-free and silicone-free; salt-mist tested to EN 60068-2-11
• Built to EN 60998-1

How it is installed

1. Slide the gland nuts and seals over the cable ends, then strip the sheath and the conductors.
2. Connect each conductor to its screw terminal, following the contact marking, and tighten the terminal screws to the stated torque.
3. Screw the glands onto the body and tighten the gland nuts to the stated torques, so the seals grip the cable sheaths and the joint is sealed to IP68.

Where it is used

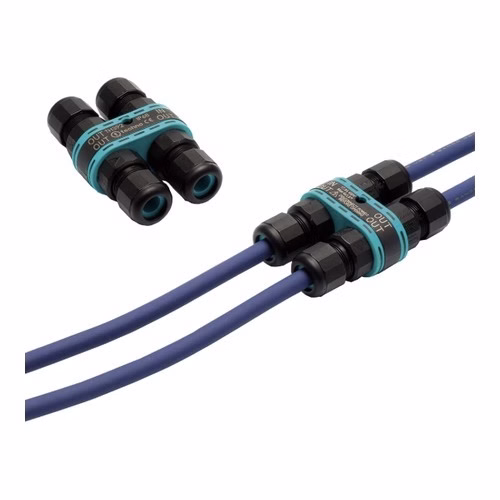

• Feeding three light fittings or loads from one supply cable
• Garden, path and facade lighting runs
• LED signage and outdoor displays
• Distribution in pits, ducts and other wet locations

Related products

• Techno TH399 Y-branch connectors - IP68 branch joints, 3 to 6 poles
• Techno TH402 T-branch connectors - IP68 tee joints, 3 to 6 poles
• Techno TH391 in-line connectors - compact IP68 cable-to-cable joints, 3 to 5 poles
• Techno grommets and adapters - seal smaller or several cables in the glands
• All Techno IP68 waterproof connectors

Frequently asked questions

What is an "H" distributor?

A connector with four cable entries that takes one supply cable in and three cables out - for feeding three loads from one cable.

What is xDRY?

Techno's anti-condensation barrier that stops moisture inside the cable from reaching the connection.

Which conductors does TH392 take?

Conductors of 0.5-1.5 mm², rated 17.5 A and 450 V AC, on screw terminals.

Where can I buy Techno TH392 connectors in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Techno IP68 connectors across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the connectors.
