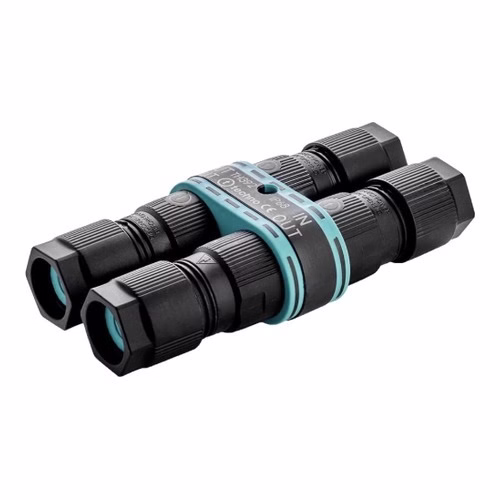

IP68 "H" Cable Distributor, 1 In 3 Out, 4-Pole, 0.5-1.5 sq mm, 17.5 A - Techno TH392 (THB.392.A4A.L)

4 poles, 0.5-1.5 mm², 17.5 A, 450 V AC; cable diameter 7-13.5 mm. Techno TH392 4-pole, long body is a compact "H" distributor - one cable in, three out, four cable entries - that splits a supply on screw terminals inside an IP68 body. Order code THB.392.A4A.L. List price Rs 4,605 per piece.

Techno s.r.l., of Guanzate near Como in Italy, designs and makes waterproof electrical connectors - the Tee Tube joints, Tee Plug plug-and-socket connectors and Tee Box junction boxes - for outdoor lighting and installations exposed to water and dust.

Is this the right one for you?

Check these five things before you order:

• You need a 4-pole connection.
• Each conductor is 0.5-1.5 mm² - flexible cords such as H05 / H07 types.
• The cable outside diameter is 7-13.5 mm.
• The circuit is within 17.5 A and 450 V AC.
• The connection needs IP68.

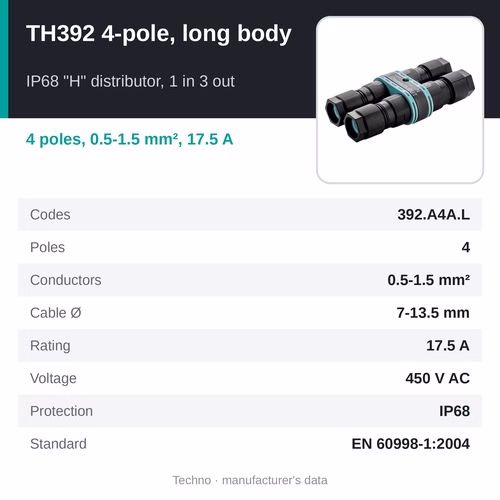

At a glance

• Price: Rs 4,605 per piece
• Order code: THB.392.A4A.L
• Poles: 4 (marking 1-2-3-4)
• Conductors: 0.5-1.5 mm²
• Rating: 17.5 A, 450 V AC
• Cable outside diameter: 7-13.5 mm
• Degree of protection: IP68

Specifications

• Product: Techno TH392 4-pole, long body
• Poles: 4
• Contact marking: 1-2-3-4
• Terminals: screw
• Conductor cross-section: 0.5-1.5 mm²
• Rated current: 17.5 A
• Rated voltage: 450 V AC
• THB.392.A4A.L: cable diameter 7-13.5 mm; 110 x 53.3 x 28 mm; IP68; 95 g; box of 50
• Configuration: 1-in-3-out "H" distributor (4 cable entries)
• Installation: fixed connection, re-openable for inspection
• Terminal screws: M3, 0.8 Nm
• Impact resistance: IK07
• T-marking: T85 °C
• Tracking index: PTI 250
• Connector housing: polyamide, UL94 V0
• Cable glands: PA66, UL94 V2
• Seals: TPE
• Grommets: TPE
• Contacts: brass
• Screws: steel
• Materials: halogen-free and silicone-free
• Cable type: H05/H07 flexible cords
• Tightening torques: gland to body 2.0 Nm; gland nut 2.5 Nm
• Corrosion: salt-mist tested to EN 60068-2-11
• Standard: EN 60998-1:2004

Why choose Techno TH392

• One in, three out - four cable entries in one compact "H" body
• IP68 - sealed against dust and immersion
• Screw terminals - brass contacts, M3 screws
• Re-openable for inspection
• Tough body - polyamide to UL94 V0, impact rated IK07
• Halogen-free and silicone-free; salt-mist tested to EN 60068-2-11
• Built to EN 60998-1

How it is installed

1. Slide the gland nuts and seals over the cable ends, then strip the sheath and the conductors.
2. Connect each conductor to its screw terminal, following the contact marking, and tighten the terminal screws to the stated torque.
3. Screw the glands onto the body and tighten the gland nuts to the stated torques, so the seals grip the cable sheaths and the joint is sealed to IP68.

Where it is used

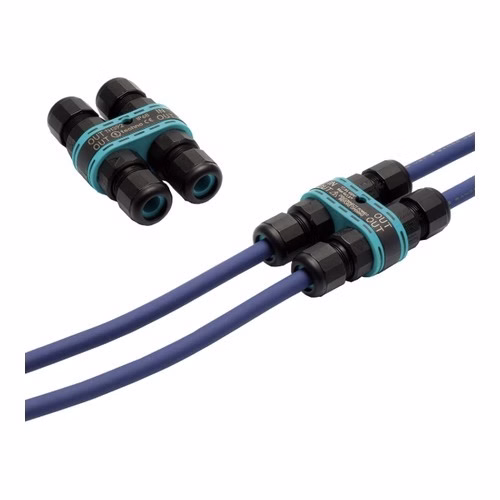

• Feeding three light fittings or loads from one supply cable
• Garden, path and facade lighting runs
• LED signage and outdoor displays
• Distribution in pits, ducts and other wet locations

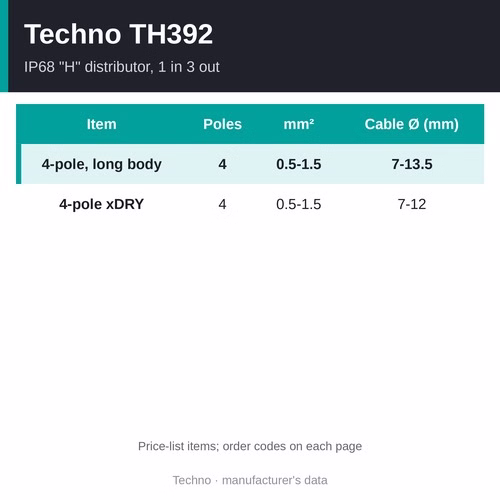

Other sizes and versions

The Techno TH392 "H" distributor overview page compares all 2 side by side.

• TH392 4-pole, long body - 4 poles, 0.5-1.5 mm², 17.5 A, cable diameter 7-13.5 mm - Rs 4,605 per piece (this page)
• TH392 4-pole xDRY - 4 poles, 0.5-1.5 mm², 17.5 A, cable diameter 7-12 mm - Rs 5,135 per piece

Related products

• Techno TH399 Y-branch connectors - IP68 branch joints, 3 to 6 poles
• Techno TH402 T-branch connectors - IP68 tee joints, 3 to 6 poles
• Techno TH391 in-line connectors - compact IP68 cable-to-cable joints, 3 to 5 poles
• Techno grommets and adapters - seal smaller or several cables in the glands
• All Techno IP68 waterproof connectors

Frequently asked questions

Which cables fit Techno TH392 4-pole, long body?

Conductors of 0.5-1.5 mm², in cable with an outside diameter of 7-13.5 mm, such as H05 / H07 flexible cords.

Is the connection waterproof?

Yes - the connector is IP68: sealed against dust and protected against immersion. The page gives Techno's test depth and time where Techno states them.

Can the connector be opened again?

Yes - it is a fixed connection that can be re-opened for inspection.

Is the price for one piece?

Yes - Rs 4,605 is the list price for one connector.

Where can I buy Techno TH392 4-pole, long body in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Techno IP68 connectors across India. The list price is Rs 4,605 per piece; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Techno TH392 4-pole, long body (THB.392.A4A.L) is Rs 4,605 per piece. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
