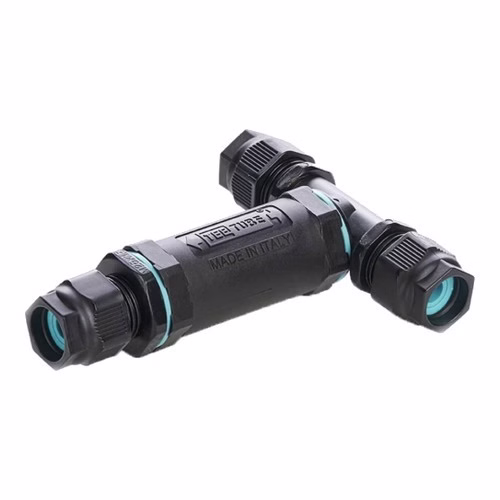

Techno TH402 Tee Tube "T" - IP68 T-Branch Cable Connectors, 3 to 6 Poles

Techno TH402 Tee Tube "T" connectors make a 3-way T-branch on a terminal block inside a sealed IP68 body. Techno s.r.l., of Guanzate near Como in Italy, designs and makes waterproof electrical connectors - the Tee Tube joints, Tee Plug plug-and-socket connectors and Tee Box junction boxes - for outdoor lighting and installations exposed to water and dust.

Four items by pole count - 3, 4, 5 and 6 poles - for 7-13.5 mm cable and 0.5-1.5 mm² conductors. Each has its own page with its code and price.

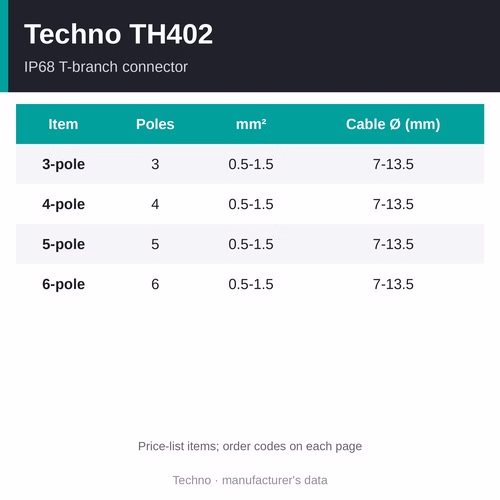

Choose your TH402

Prices are list prices per piece; each page gives the order codes.

• TH402 3-pole - 3 poles, 0.5-1.5 mm², 32 A, cable diameter 7-13.5 mm - Rs 1,800 per piece
• TH402 4-pole - 4 poles, 0.5-1.5 mm², 32 A, cable diameter 7-13.5 mm - Rs 1,900 per piece
• TH402 5-pole - 5 poles, 0.5-1.5 mm², 32 A, cable diameter 7-13.5 mm - Rs 2,275 per piece
• TH402 6-pole - 6 poles, 0.5-1.5 mm², 32 A, cable diameter 7-13.5 mm - Rs 2,505 per piece

How to choose

Choose by the number of conductors: 3, 4, 5 or 6 poles, all for 0.5-1.5 mm² conductors in cable 7-13.5 mm in diameter, rated 32 A and 450 V AC.

At a glance

• Items: 3, 4, 5 and 6 poles
• Conductors: 0.5-1.5 mm²
• Rating: 32 A, 450 V AC
• Cable outside diameter: 7-13.5 mm
• Size: Ø 34 x 97.5 x 123 mm
• Degree of protection: IP68
• Price: Rs 1,800 - 2,505 per piece

Technical data (common to the TH402 range)

• Configuration: 3-way "T" branch joint with terminal block
• Installation: fixed connection, re-openable for inspection
• Terminal screws: M3, 0.8 Nm
• Impact resistance: IK07
• T-marking: T125 °C
• Tracking index: PTI 250
• Connector housing: PA66 glass-filled, UL94 V0 (body and terminal housing)
• Cable glands: PA66, UL94 V2
• Seals: silicone
• Grommets: TPE
• Contacts: brass
• Screws: steel
• Materials: halogen-free
• Cable type: H05/H07 flexible cords
• Tightening torques: gland to body 2.5 Nm; gland nut 2.5 Nm
• Corrosion: salt-mist tested to EN 60068-2-11
• Standard: EN 60998-1:2004

Why choose Techno TH402

• T-branch in one piece - three cable entries with a terminal block inside
• IP68 - sealed against dust and immersion
• Screw terminals - brass contacts, M3 screws
• Re-openable for inspection
• Tough, heat-rated body - glass-filled PA66 to UL94 V0, T125 °C, IK07
• Halogen-free; salt-mist tested to EN 60068-2-11
• Built to EN 60998-1

How it is installed

1. Slide the gland nuts and seals over the cable ends, then strip the sheath and the conductors.
2. Connect each conductor to its screw terminal, following the contact marking, and tighten the terminal screws to the stated torque.
3. Screw the glands onto the body and tighten the gland nuts to the stated torques, so the seals grip the cable sheaths and the joint is sealed to IP68.

Where it is used

• Branching a lighting supply to a luminaire
• Street, park and garden lighting
• LED signage and outdoor displays
• Outdoor equipment fed from one cable
