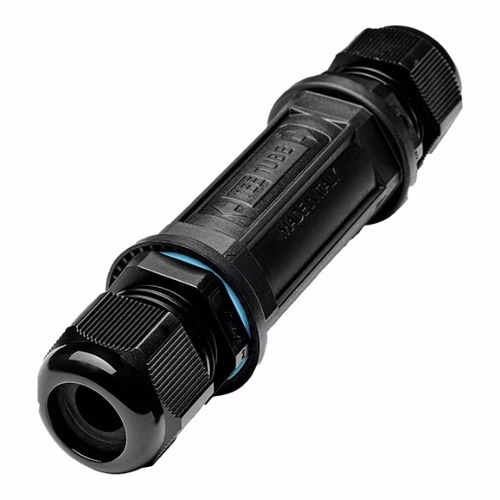

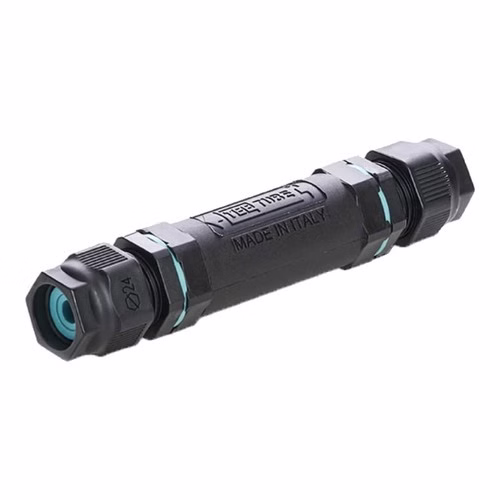

Techno TH400 Tee Tube "I" - IP68 In-Line Cable Joints, 3 to 6 Poles, 0.5-4.0 sq mm

Techno TH400 Tee Tube "I" joints connect two cables end to end on screw terminals inside a sealed IP68 body, for conductors of 0.5-4.0 mm² at 32 A. Techno s.r.l., of Guanzate near Como in Italy, designs and makes waterproof electrical connectors - the Tee Tube joints, Tee Plug plug-and-socket connectors and Tee Box junction boxes - for outdoor lighting and installations exposed to water and dust.

Four items by pole count - 3, 4, 5 and 6 poles - each made in two versions: for 8-17 mm cable (tested by Techno to IP68 at 50 m for 1 hour) and for 7-13.5 mm cable. Each has its own page with its codes and price.

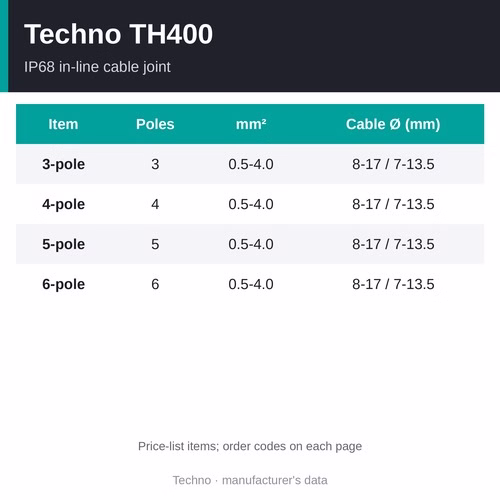

Choose your TH400

Prices are list prices per piece; each page gives the order codes.

• TH400 3-pole - 3 poles, 0.5-4.0 mm², 32 A, cable diameter 8-17 or 7-13.5 mm - Rs 1,425 per piece
• TH400 4-pole - 4 poles, 0.5-4.0 mm², 32 A, cable diameter 8-17 or 7-13.5 mm - Rs 1,710 per piece
• TH400 5-pole - 5 poles, 0.5-4.0 mm², 32 A, cable diameter 8-17 or 7-13.5 mm - Rs 2,175 per piece
• TH400 6-pole - 6 poles, 0.5-4.0 mm², 32 A, cable diameter 8-17 or 7-13.5 mm - Rs 2,170 per piece

How to choose

Choose the pole count, then the version by cable diameter: 8-17 mm (D1N, D1B, D1A, D1D) or 7-13.5 mm (C1A, D1G, D1H, D1L).

At a glance

• Items: 3, 4, 5 and 6 poles
• Conductors: 0.5-4.0 mm²
• Rating: 32 A, 450 V AC
• Cable outside diameter: 8-17 mm or 7-13.5 mm
• Degree of protection: IP68
• Price: Rs 1,425 - 2,175 per piece

Technical data (common to the TH400 range)

• Configuration: in-line joint (cable-to-cable)
• Installation: fixed connection, re-openable for inspection
• Terminal screws: M3, 0.8 Nm
• Impact resistance: IK08
• T-marking: T125 °C
• Tracking index: PTI 250
• Connector housing: PA66 glass-filled, UL94 V0 (body and terminal housing)
• Cable glands: PA6 V-2 (8-17 mm version); PA66 UL94 V2 (7-13.5 mm version)
• Seals: silicone
• Grommets: TPE
• Contacts: brass
• Screws: steel
• Materials: halogen-free
• Cable type: H05/H07 flexible cords
• Tightening torques: gland to body 2.5 Nm; gland nut 4.0 Nm (8-17 mm) or 2.5 Nm (7-13.5 mm)
• Corrosion: salt-mist tested to EN 60068-2-11
• Standard: EN 60998-1:2004

Why choose Techno TH400

• IP68 - Techno tests the 8-17 mm versions at 50 m for 1 hour
• Conductors 0.5-4.0 mm², rated 32 A, 450 V AC
• Two cable ranges - 8-17 mm, or 7-13.5 mm
• Screw terminals - brass contacts, M3 screws
• Re-openable for inspection
• Strong, heat-rated body - glass-filled PA66 to UL94 V0, T125 °C, impact rated IK08
• Halogen-free; built to EN 60998-1

How it is installed

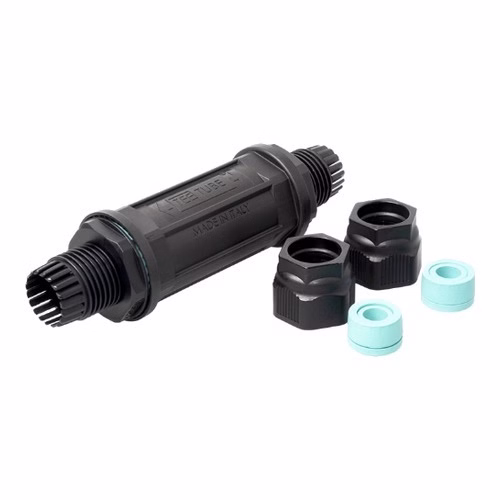

1. Slide the gland nuts and seals over the cable ends, then strip the sheath and the conductors.
2. Connect each conductor to its screw terminal, following the contact marking, and tighten the terminal screws to the stated torque.
3. Screw the glands onto the body and tighten the gland nuts to the stated torques, so the seals grip the cable sheaths and the joint is sealed to IP68.

Where it is used

• Street, garden, path and facade lighting
• In-ground and underwater luminaires, fountains and pools
• LED signage and outdoor displays
• Pumps, irrigation and outdoor equipment
• Cable runs in pits, ducts and other wet locations

Related products

• Techno TH391 in-line connectors - compact IP68 cable-to-cable joints, 3 to 5 poles
• Techno TH399 Y-branch connectors - IP68 branch joints, 3 to 6 poles
• Techno TH402 T-branch connectors - IP68 tee joints, 3 to 6 poles
• Raytech Super Clik - gel joints for 0.6/1 kV multi-core cable, straight or branch
• All Techno IP68 waterproof connectors

Frequently asked questions

What is TH400?

Techno's Tee Tube "I" - an IP68 in-line joint with screw terminals for conductors up to 4 mm².

How deep can it go under water?

Techno tests the 8-17 mm versions to IP68 at 50 m for 1 hour.

Which version do I need?

Pick the pole count from the number of conductors, then the version by cable diameter: 8-17 mm or 7-13.5 mm.

Where can I buy Techno TH400 connectors in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Techno IP68 connectors across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the connectors.
