Raytech Super Clik - IPX8 Gel-Filled Straight and Branch Joints for 0.6/1 kV Multi-Core Cable

Raytech Super Clik is a range of fast, gel pre-filled cable joints for 0.6/1 kV multi-core cables of up to 5 conductors, plus the Mini L joint for small 450 V cables. Each joint comes complete with its terminal block or connector and a gel-filled case: connect the conductors, lay the connection in the case and close it, and the joint is sealed to IPX8 - fully submersible and suitable for underground use. Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures.

The cross-linked polymer gel and the robust insulating case make Super Clik a Class 2 joint to CEI 64-8. It has been tested with repeated flexing and torsion and with immersion in water, the connections stay re-accessible even after long service, and the self-extinguishing components make it flame retardant. Each of the five sizes has its own page and price.

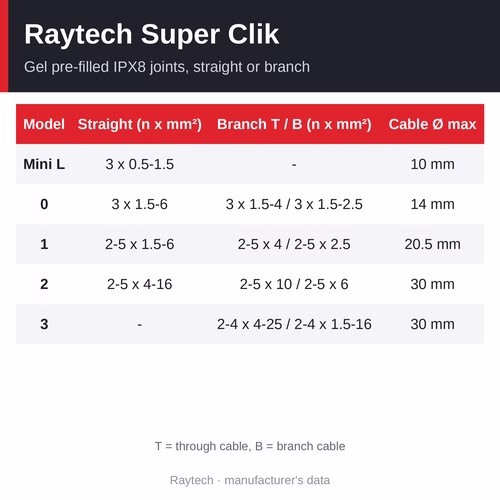

Choose your Super Clik size

Prices are per joint, complete with its terminal block or connector.

• Super Clik Mini L - straight joint, 3 x 0.5-1.5 mm², cable diameter up to 10 mm, 450 V - Rs 1,551 per joint
• Super Clik 0 - straight 3 x 1.5-6 mm² or branch, cable diameter up to 14 mm - Rs 3,028 per joint
• Super Clik 1 - straight 2-5 x 1.5-6 mm² or branch, cable diameter up to 20.5 mm - Rs 4,542 per joint
• Super Clik 2 - straight 2-5 x 4-16 mm² or branch, cable diameter up to 30 mm - Rs 9,560 per joint
• Super Clik 3 - branch only, through 2-4 x 4-25 mm², cable diameter up to 30 mm - Rs 15,079 per joint

How to choose the size

Start with the cable. For small 450 V cables, Super Clik Mini L makes a straight joint on 3 x 0.5-1.5 mm². For 0.6/1 kV cable, Super Clik 0 takes 3-core cable of 1.5-6 mm² (cable diameter up to 14 mm), Super Clik 1 2- to 5-core cable of 1.5-6 mm² (cable diameter up to 20.5 mm) and Super Clik 2 2- to 5-core cable of 4-16 mm² (cable diameter up to 30 mm). Super Clik 3 makes branch joints on 2- to 4-core cable up to 25 mm².

Super Clik 0, 1 and 2 make both straight and branch joints; Super Clik 3 is for branch joints only, and Mini L for straight joints only.

At a glance

• Sizes: Mini L, 0, 1, 2 and 3
• Cables: 0.6/1 kV multi-core, up to 5 conductors (Mini L: 450 V)
• Conductor sizes: 0.5 to 25 mm² across the range
• Cable outside diameter: up to 10, 14, 20.5 or 30 mm, by size
• Degree of protection: IPX8
• Price: Rs 1,551 - 15,079 per joint

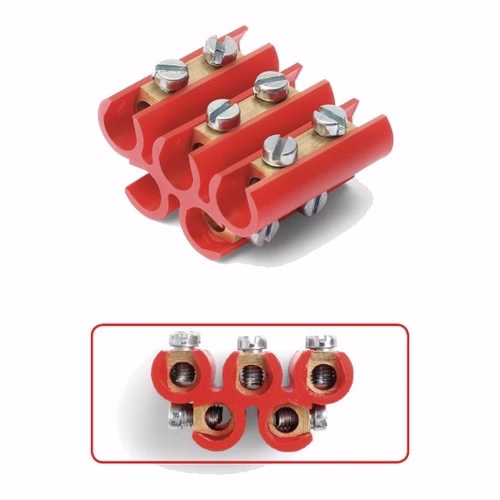

• Supplied with: terminal block or strip connector, and the gel-filled case

Technical data (common to the range)

• Electrical performance: CEI EN 50393 as applicable; Class 2 joint to CEI 64-8
• Flame propagation: none - to CEI 20-35, IEC 60332-1 and HD 405-1 (as applicable); self-extinguishing components
• Gel: UL 94-HB; halogen-free; UV resistant; not classified as hazardous under CLP; no shelf life
• Casing: UL 94-V2
• Degree of protection: IPX8 - fully submersible, can be used underground
• Cable working temperature: up to 90 °C
• Installation temperature: -40 °C to +50 °C

Why choose Super Clik

• Complete with the connection - each joint comes with its terminal block or connector, so nothing else is needed to make it
• Straight or branch - in-line joints and tee (branch) joints from one range
• Class 2 insulation to CEI 64-8 - a cross-linked polymer gel inside a robust insulating case
• Tested the hard way - repeated flexing and torsion tests and immersion in water
• IPX8 - fully submersible and suitable for underground use
• Re-accessible - the gel stays soft, so the connections can be re-entered even after long service
• Flame retardant - self-extinguishing components, no flame propagation to CEI 20-35, IEC 60332-1 and HD 405-1
• Safe gel with no shelf life - not classified as hazardous under CLP, chemically inert, halogen-free and UV resistant

How it is installed

1. Prepare the cable ends: remove the sheath and strip the conductors to suit the terminal block.
2. Connect the conductors in the terminal block supplied - end to end for a straight joint, or the through and branch conductors for a tee.

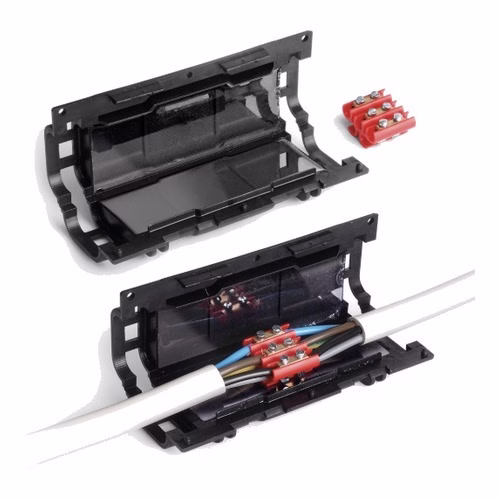

3. Lay the block and conductors in the gel-filled case and close it: the gel closes around the conductors and the block and seals the joint.

Where it is used

• Straight repairs and extensions of buried or ducted 0.6/1 kV multi-core cables
• Tee connections to street lights, bollards and garden lighting
• Supplies to pumps, fountains and irrigation equipment, including submerged connections
• Connections in pits, manholes and other wet locations
• Industrial and infrastructure cabling where a re-accessible joint saves time later

Related products

• Raytech Rapid Joint - IPX8 straight joints for 1 kV cable up to 400 sq mm
• Raytech Rapid Joint LS - joints for multi-core control cable
• Raytech LittleJoint L - IP68 in-line micro-joints with integrated glands
• Raytech LittleJoint Y - IP68 branch micro-joints
• All Raytech low-voltage pre-filled joints

Frequently asked questions

What is Super Clik?

A Raytech cable joint whose case arrives pre-filled with insulating gel, complete with its terminal block. The conductors are connected in the block, the connection is laid in the case and the case is closed: the joint is insulated and sealed to IPX8.

Which Super Clik do I need?

Choose by cable: Mini L for small 450 V cables; Super Clik 0 for 3-core cable up to 6 mm²; Super Clik 1 for 2- to 5-core cable up to 6 mm²; Super Clik 2 for 4-16 mm²; Super Clik 3 for branch joints up to 25 mm².

Is the terminal block included?

Yes - every Super Clik joint comes complete with its terminal block or connector.

Can Super Clik be buried or submerged?

Yes. The joints are IPX8, fully submersible and suitable for underground use.

How is Super Clik different from Rapid Joint?

Super Clik is a flat joint with the terminal block included, for straight or branch joints up to 25 mm². Rapid Joint is a cylindrical, radial-closing straight joint for cables up to 400 mm², used with connectors to EN 61238-1.

Where can I buy Raytech Super Clik joints in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel-filled cable joints across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the joints.
