Fluid Insulating Gel Cartridge for Joint Shells and Boxes, 280 ml - Raytech Wonder Fluid 280 (WONDER-F280)

280 ml cartridge, light green, ready to use. Raytech Wonder Fluid 280 is a single-component, fluid insulating gel in a cartridge with a dosing nozzle, for injecting into joint shells and filling boxes. There is nothing to mix, and the gel does not solidify once the cartridge is opened, so there is no waste. Item WONDER-F280, list price Rs 4,261 per cartridge - about Rs 1,522 per 100 ml.

Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures. Wonder Fluid gives IP68 in a suitable casing and is not classified as hazardous under CLP. For filling open boxes with a thicker gel, see Wonder Gel.

Is this the right one for you?

Check these four things before you order:

• You need to fill a joint shell (by injection) or a box with insulating gel, without mixing two components.
• You have a standard sealant gun for the cartridge.
• The casing is suitable - IP68 is reached only in a suitable casing.
• You will install between -40 °C and +110 °C; the gel then works from -60 °C to +200 °C.

At a glance

• Price: Rs 4,261 per cartridge
• Item code: WONDER-F280
• Quantity: 280 ml
• Colour: light green
• Package: cartridge with dosing nozzle
• Works out to: about Rs 1,522 per 100 ml
• Mixing: none
• Degree of protection: IP68 in a suitable casing

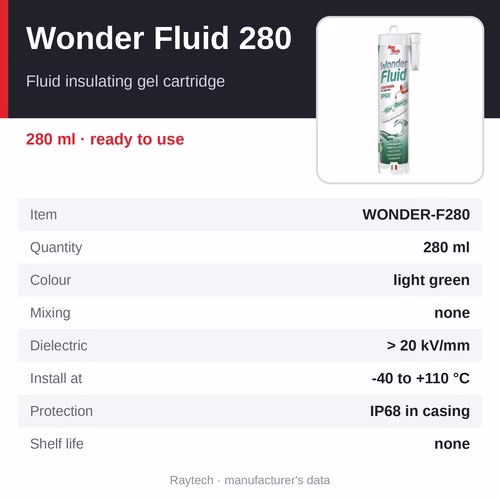

Specifications

• Product: Raytech Wonder Fluid 280
• Item code: WONDER-F280
• Quantity: 280 ml
• Colour: light green
• Package: cartridge with dosing nozzle
• Dielectric strength: > 20 kV/mm
• Operating temperature: -60 °C to +200 °C
• Installation temperature: -40 °C to +110 °C
• Degree of protection: IP68 when used in a suitable casing
• Gel: UL 94-HB; single-component
• Classification: not classified as hazardous under the CLP Regulation; no shelf life

Why choose Wonder Fluid

• Ready to use - a single-component fluid gel, nothing to mix
• Made for injection - fills joint shells as well as boxes and trays
• Does not solidify once opened - no waste
• No shelf life; not classified as hazardous under CLP
• IP68 / IPX8 joints when injected into suitable shells

How to use it

1. Fit the cartridge in a standard sealant gun and cut the dosing nozzle.
2. Inject the gel into the closed joint shell, or fill the box around the connections.
3. Close the casing. The gel is ready at once; any left in the cartridge stays usable.

Where it is used

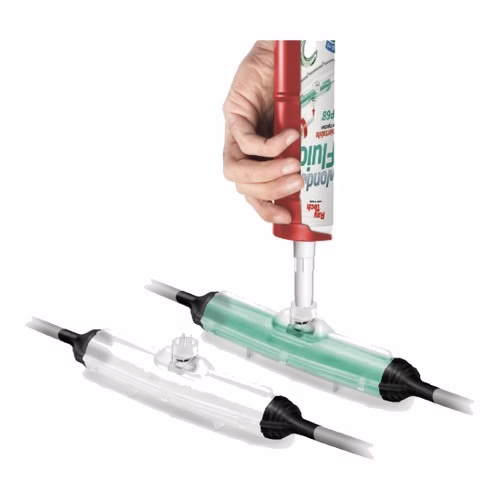

• Injecting into gel-ready joint shells

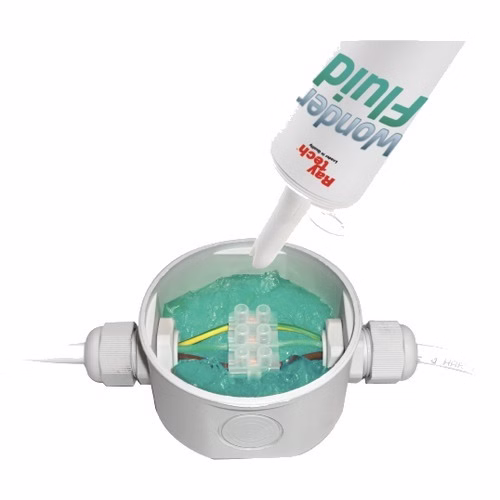

• Filling junction boxes and trays
• Connections in damp and underground locations
• Maintenance of existing installations

Related products

• Raytech Wonder Gel - ready-to-use gel in a cartridge for boxes you already have
• Raytech Monogel - transparent single-component gel cartridge
• Raytech Magic Gel - two-component gel for joint shells and enclosures
• All Raytech insulating filler gels

Frequently asked questions

Do I need to mix Wonder Fluid?

No - it is a single-component, ready-to-use fluid gel.

How is Wonder Fluid different from Wonder Gel?

Wonder Fluid is the more fluid of the two, made for injecting into joint shells as well as filling boxes; Wonder Gel is a sticky, self-levelling gel for filling enclosures.

Can I use part of a cartridge?

Yes - the gel does not solidify once the cartridge is opened, so there is no waste.

What temperatures can it handle?

Install it between -40 °C and +110 °C; in service it works from -60 °C to +200 °C.

Where can I buy Raytech Wonder Fluid 280 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech insulating gels and rubbers across India. The list price is Rs 4,261 per cartridge; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Raytech Wonder Fluid 280 (item WONDER-F280) is Rs 4,261 per cartridge. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
