Ready-to-Use Transparent Insulating Gel Cartridge, 280 ml - Raytech Wonder Gel Invisible (WONDER-INV)

280 ml, cartridge with dosing nozzle. Raytech Wonder Gel Invisible is a ready-to-use, single-component insulating gel in a 280 ml cartridge: already cross-linked, so there is nothing to mix and no waiting - squeeze it into the enclosure with a standard gun. Item WONDER-INV, list price Rs 4,261 per cartridge - about Rs 1,522 per 100 ml.

Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures. It stays soft and never dries, protects connections from moisture, oxidation, corrosion and insects, and gives IP68 when dispensed into a suitable casing. The next size down is Wonder Gel (280 ml); it is the largest pack.

Is this the right one for you?

Check these four things before you order:

• You want to protect connections inside an existing or new enclosure without mixing two components.
• The quantity suits the job: 280 ml (cartridge with dosing nozzle). One 280 ml cartridge fills roughly 280 ml of free space.
• You have a standard sealant (silicone) gun.
• The enclosure is suitable - IP68 is reached only in a suitable casing.

At a glance

• Price: Rs 4,261 per cartridge
• Item code: WONDER-INV
• Quantity: 280 ml
• Package: cartridge with dosing nozzle
• Works out to: about Rs 1,522 per 100 ml
• Mixing: none - already cross-linked
• Applied with: a standard sealant gun
• Degree of protection: IP68 in a suitable casing

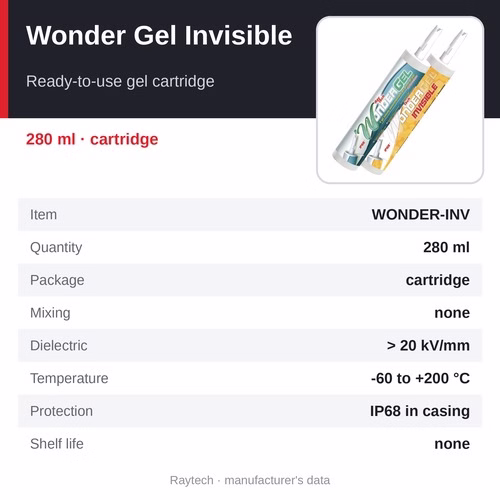

Specifications

• Product: Raytech Wonder Gel Invisible
• Item code: WONDER-INV
• Quantity: 280 ml
• Package contents: cartridge with dosing nozzle
• Dielectric strength: > 20 kV/mm
• Volume resistivity: > 2 x 10^15 Ω·cm
• Operating temperature: -60 °C to +200 °C
• Overload temperature: up to 250 °C for short periods
• Stabilised against: mould and UV
• Degree of protection: IP68 when dispensed into a suitable casing
• Gel: UL 94-HB; single-component; already cross-linked
• Classification: not classified as hazardous under the CLP Regulation; no shelf life

Why choose Wonder Gel

• Ready to use - no mixing, already cross-linked, no waiting
• Stops moisture faults - prevents outages from poor insulation or sealing
• Keeps insects out of enclosures
• Protects connections from oxidation and corrosion
• Cartridge with dosing nozzle - fits a standard gun, measurable, no waste, quick even in awkward places
• Stays soft and never dries - re-enterable and inspectable; no shelf life
• Any weather - can be applied in all climatic conditions

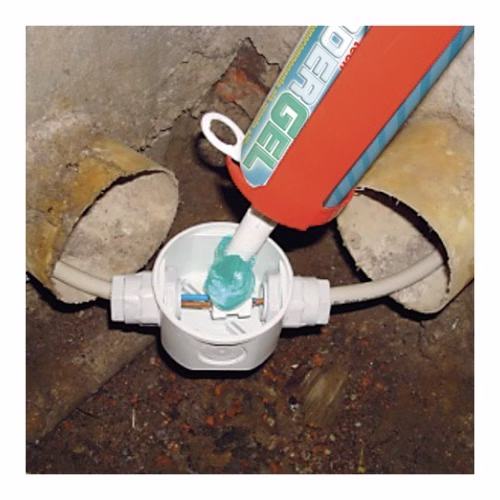

How to use it

1. Fit the cartridge in a standard sealant gun and cut the dosing nozzle.
2. Fill the enclosure around the connections - the gel is very fluid and self-levelling.
3. Close the enclosure. There is no curing time; to inspect or change a connection later, open the enclosure and lift the gel away.

Where it is used

• CCTV and video-surveillance connections
• Outdoor and external systems
• Connections in damp locations
• Underground connections
• In-ground luminaires
• Small connection boxes

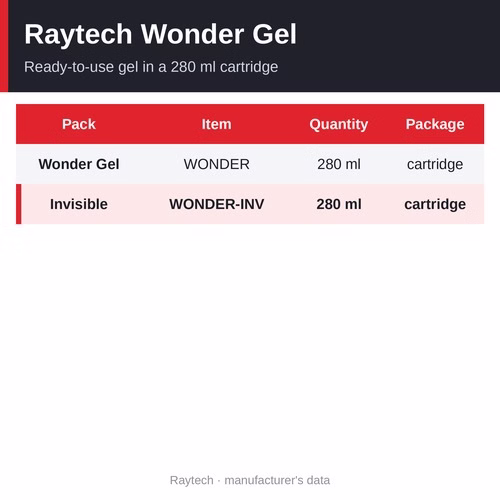

Other sizes and versions

The Raytech Wonder Gel overview page compares all 2 side by side.

• Wonder Gel - 280 ml, cartridge with dosing nozzle (about Rs 1,522 per 100 ml) - Rs 4,261 per cartridge
• Wonder Gel Invisible - 280 ml, cartridge with dosing nozzle (about Rs 1,522 per 100 ml) - Rs 4,261 per cartridge (this page)

Related products

• Raytech Wonder Fluid 280 - ready-to-use fluid gel for injecting into joint shells
• Raytech Monogel - transparent single-component gel cartridge
• Raytech Happy IPX8 gel boxes - three mini boxes for a single wire connector
• Raytech Magic Gel - two-component gel for joint shells and enclosures
• All Raytech insulating filler gels

Frequently asked questions

How much does Wonder Gel Invisible fill?

One 280 ml cartridge fills roughly 280 ml of free space - for example several small connection boxes. Use as much as the job needs; the rest stays in the cartridge.

What is in the Wonder Gel Invisible pack?

Cartridge with dosing nozzle - 280 ml in total. The list price is Rs 4,261 per pack, about Rs 1,522 per 100 ml.

Do I need to mix Wonder Gel?

No - it is a single-component gel that is already cross-linked. Squeeze it in with a standard gun and close the enclosure.

Does it harden over time?

No - it stays soft, never dries and its properties do not deteriorate with time.

Can I inspect the connection later?

Yes - the gel is re-enterable and inspectable.

Where can I buy Raytech Wonder Gel Invisible in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech insulating gels and rubbers across India. The list price is Rs 4,261 per cartridge; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Raytech Wonder Gel Invisible (item WONDER-INV) is Rs 4,261 per cartridge. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
