Raytech Happy IPX8 Gel Boxes - Happy 0, Happy 1 and Happy 2 for Wire Connectors

Raytech Happy is a family of three mini junction boxes pre-filled with insulating gel. Make the connection with an ordinary screw terminal, lever connector or push-in connector, lay it in the box and close the lid: the gel flows round the conductors and seals them to IPX8, so a connection made for indoor use can safely go outdoors, underground or under water. Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures.

The three sizes cover the most commonly used connectors, take rigid or flexible insulated wires up to 6 mm², and have three entrances each for straight, branch or three-way wiring. Each size has its own page with the connectors it is designed for and its price.

Choose your Happy size

Prices are per gel box; the boxes are packed in blisters (the blister quantity is shown).

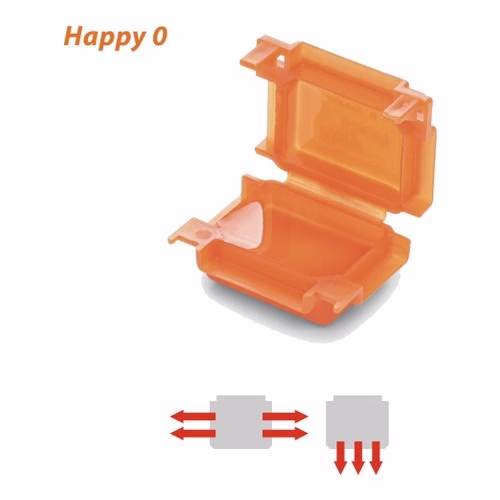

• Happy 0 - 41 x 28 x 19 mm, small 2- and 3-way connectors, blister of 4 - Rs 470 per gel box
• Happy 1 - 45 x 37 x 24 mm, 3- to 5-way connectors, blister of 2 - Rs 585 per gel box

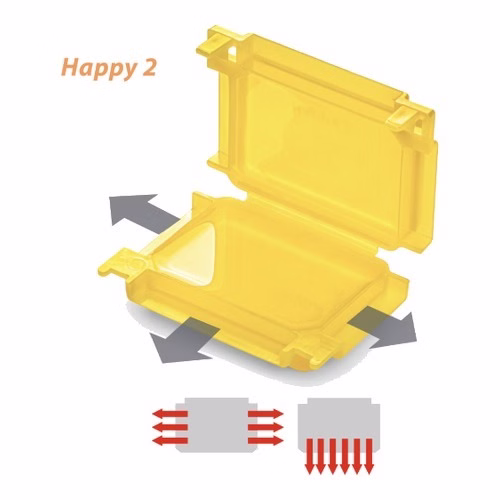

• Happy 2 - 53 x 39 x 24 mm, 2+2+2-way and 5-way connectors, blister of 1 - Rs 997 per gel box

How to choose the size

Choose by the connector. Happy 0 suits small connectors - 2 x 1.5 and 2 x 2.5 mm² screw connectors and 2- or 3-way lever or push-in connectors for up to 4 mm². Happy 1 takes a 3 x 2.5 mm² screw connector and 3-, 2+2- and 5-way connectors up to 6 mm². Happy 2 takes a 3 x 4 mm² screw connector, 2+2+2-way connectors and 5-way connectors up to 6 mm².

For a connection that needs a terminal block and cable glands, or more than one connector, see Raytech Ready Box and Baby Box or the Raytech Gel Box Line.

At a glance

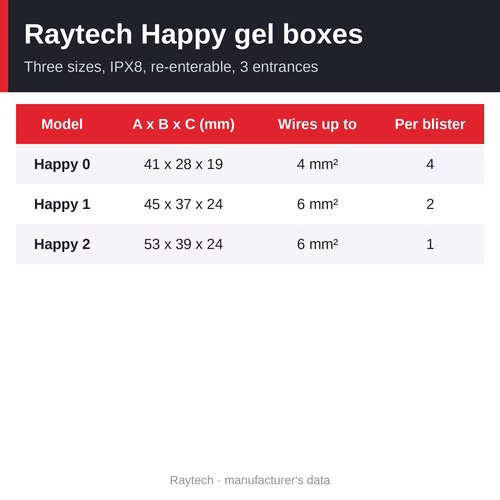

• Sizes (A x B x C): Happy 0: 41 x 28 x 19 mm; Happy 1: 45 x 37 x 24 mm; Happy 2: 53 x 39 x 24 mm
• Price: Rs 470 - 997 per gel box
• Wires: rigid or flexible insulated wires up to 6 mm²
• Degree of protection: IPX8 - officially tested by IMQ
• Entrances: 3 per box - straight, branch or three-way
• Gel: UL 94-HB, re-enterable, no shelf life

Technical data (common to all sizes)

• Electrical performance: CEI EN 50393 as applicable (tested under a water head with the accessory installed in a box); Class 2 to CEI 64-8; CEI EN 60998-1 and -2
• Gel: UL 94-HB; not classified as hazardous under CLP; no shelf life
• Coloured casing: self-extinguishing to UL 94-V2
• Degree of protection: IPX8 (IMQ officially tested)
• Operating temperature: 90 °C
• Installation temperature: -40 °C to +50 °C
• Other properties: halogen-free gel; UV resistant; fully submersible; suitable for underground use

Why choose Raytech Happy

• Sealed in seconds - nothing to mix, pour or heat: close the lid and the gel closes around the connector
• Three entrances - straight-through, branch or three-way wiring in the same box
• Uses the connectors you already stock - screw terminals, lever connectors and push-in connectors
• Re-enterable - open the lid to check or change the connection; the gel stays soft and re-seals
• IPX8, officially tested by IMQ - fully submersible and suitable for underground use
• Safe, long-lived gel - not classified as hazardous under the EU CLP Regulation, halogen-free, UV resistant, no shelf life
• New safety closure and extra-flexible membranes at the entrances

How to fit it

1. Make the connection as usual with a screw terminal, lever connector or push-in connector that suits the box size.
2. Lay the connector in the open box with the wires leaving through the entrances - straight through, as a branch, or three ways.
3. Close the lid until it latches. The gel flows round the conductors and the connector and seals them; to rework the joint later, open the lid, change the connection and close it again.

Where it is used

• Garden, landscape and facade lighting connections
• Connections in pits, ground boxes and underground runs
• Pumps, fountains and irrigation equipment
• Damp or wet locations such as basements, car washes and plant rooms
• Signs, display lighting and small outdoor equipment

Related products

• Raytech Gel Box Line - five transparent IPX8 gel boxes
• Raytech Ready Box and Baby Box - gel-filled IP68 junction boxes with terminal block and glands
• Raytech LittleJoint L - IP68 in-line micro-joints with integrated glands
• Raytech Wonder Gel - ready-to-use gel in a cartridge for boxes you already have
• All Raytech insulating gel boxes

Frequently asked questions

What is a gel box used for?

To insulate and waterproof a wire connection that would otherwise be exposed to water, damp or dirt. The gel surrounds the connector and the bare conductors, so the joint stays dry and insulated - even fully under water (IPX8).

Which Happy size fits my connector?

Happy 0 for small 2- and 3-way connectors up to 4 mm²; Happy 1 for a 3 x 2.5 mm² screw connector or 3- to 5-way connectors; Happy 2 for a 3 x 4 mm² screw connector, 2+2+2-way or 5-way connectors. Wires up to 6 mm².

Can I open the box again later?

Yes. The gel does not set hard, so the lid can be opened to inspect or change the connection and closed again.

Are the prices per box?

Yes - the list prices are per gel box. The boxes are packed in blisters of 4 (Happy 0), 2 (Happy 1) or 1 (Happy 2).

Is Happy suitable under water or underground?

Yes. It is IPX8, officially tested by IMQ, fully submersible and suitable for underground use.

Where can I buy Raytech Happy gel boxes in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel boxes and gel-filled joints across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the gel boxes.
