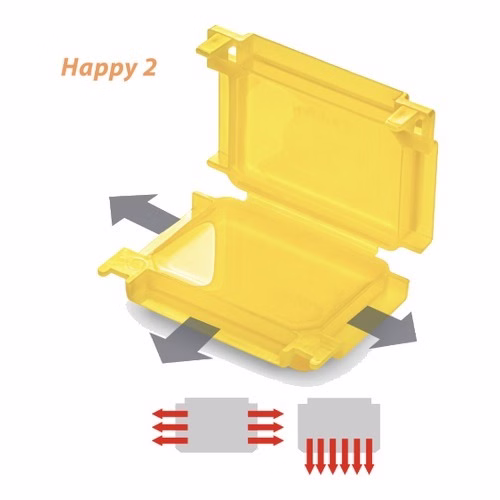

IPX8 Gel Box for Wire Connectors, 53 x 39 x 24 mm - Raytech Happy 2 (HAPPY2)

53 x 39 x 24 mm, for 2+2+2-way and 5-way connectors. Raytech Happy 2 is a mini junction box pre-filled with insulating gel. Lay one wire connector in it, close the lid, and the connection is sealed against water to IPX8 - fully submersible and fit for underground use. Order it as item HAPPY2 at Rs 997 per gel box (packed 1 to a blister; HAPPY2BOX7 (box of 7)).

Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures. Happy 2 takes rigid or flexible insulated wires up to 6 mm², and its three entrances allow straight, branch or three-way wiring.

Is this the right one for you?

Check these five things before you order:

• Your connection is one connector of the kind Happy 2 is made for: 3 x 4 mm² screw connectors; 2+2+2-way connectors for 2.5 mm² and 4 mm²; 5-way connectors for 4 mm² and 6 mm².
• The wires are insulated, rigid or flexible, and no larger than 6 mm².
• The box fits the space: 53 x 39 x 24 mm outside, with three entrances.
• You need IPX8 protection - the connection will be buried, submerged or exposed to water.
• The circuit runs at no more than 90 °C, and you are installing between -40 °C and +50 °C.

At a glance

• Price: Rs 997 per gel box (blister of 1)
• Item code: HAPPY2; HAPPY2BOX7 (box of 7)
• Size (A x B x C): 53 x 39 x 24 mm
• Designed for: 3 x 4 mm² screw connectors; 2+2+2-way connectors for 2.5 mm² and 4 mm²; 5-way connectors for 4 mm² and 6 mm²
• Wires: insulated, rigid or flexible, up to 6 mm²
• Degree of protection: IPX8 (IMQ officially tested)
• Entrances: 3 - straight, branch or three-way

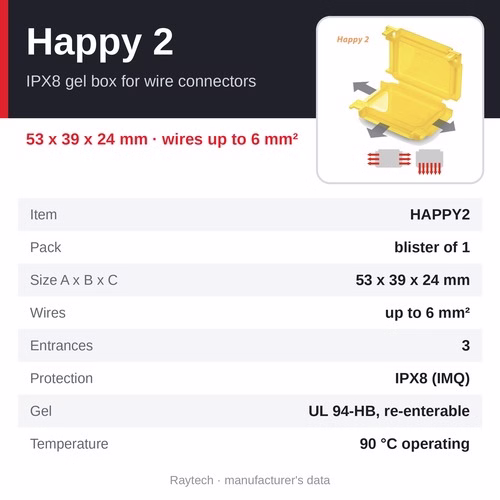

Specifications

• Model: Raytech Happy 2
• Item codes: HAPPY2 (blister of 1); HAPPY2BOX7 (box of 7)
• Dimensions A x B x C: 53 x 39 x 24 mm
• Connectors it is designed for: 3 x 4 mm² screw connectors; 2+2+2-way connectors for 2.5 mm² and 4 mm²; 5-way connectors for 4 mm² and 6 mm²
• Wire size: rigid or flexible insulated wires up to 6 mm²
• Electrical performance: CEI EN 50393 as applicable (tested under a water head with the accessory installed in a box); Class 2 to CEI 64-8; CEI EN 60998-1 and -2
• Gel: UL 94-HB; not classified as hazardous under CLP; no shelf life
• Coloured casing: self-extinguishing to UL 94-V2
• Degree of protection: IPX8 (IMQ officially tested)
• Operating temperature: 90 °C
• Installation temperature: -40 °C to +50 °C
• Other properties: halogen-free gel; UV resistant; fully submersible; suitable for underground use

Why choose it

• Sealed in seconds - nothing to mix, pour or heat: close the lid and the gel closes around the connector
• Three entrances - straight-through, branch or three-way wiring in the same box
• Uses the connectors you already stock - screw terminals, lever connectors and push-in connectors
• Re-enterable - open the lid to check or change the connection; the gel stays soft and re-seals
• IPX8, officially tested by IMQ - fully submersible and suitable for underground use
• Safe, long-lived gel - not classified as hazardous under the EU CLP Regulation, halogen-free, UV resistant, no shelf life
• New safety closure and extra-flexible membranes at the entrances

How to fit it

1. Make the connection as usual with a screw terminal, lever connector or push-in connector that suits the box size.
2. Lay the connector in the open box with the wires leaving through the entrances - straight through, as a branch, or three ways.
3. Close the lid until it latches. The gel flows round the conductors and the connector and seals them; to rework the joint later, open the lid, change the connection and close it again.

Where it is used

• Garden, landscape and facade lighting connections
• Connections in pits, ground boxes and underground runs
• Pumps, fountains and irrigation equipment
• Damp or wet locations such as basements, car washes and plant rooms
• Signs, display lighting and small outdoor equipment

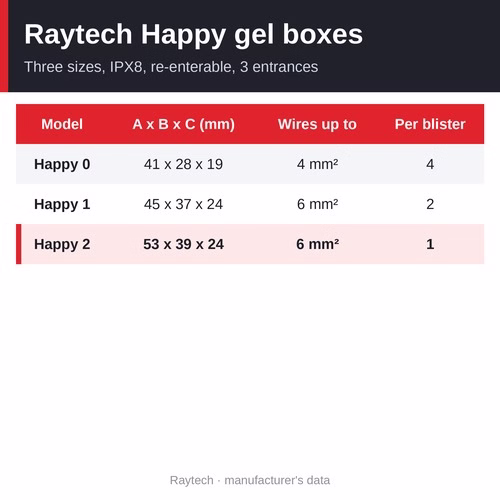

Other sizes and versions

The Raytech Happy overview page compares all 3 side by side.

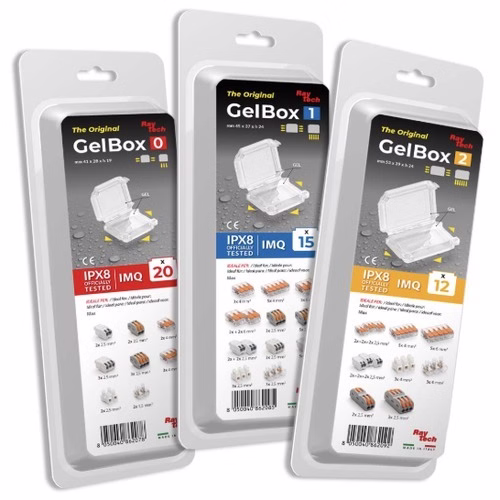

• Happy 0 - 41 x 28 x 19 mm, small 2- and 3-way connectors, blister of 4 - Rs 470 per gel box
• Happy 1 - 45 x 37 x 24 mm, 3- to 5-way connectors, blister of 2 - Rs 585 per gel box
• Happy 2 - 53 x 39 x 24 mm, 2+2+2-way and 5-way connectors, blister of 1 - Rs 997 per gel box (this page)

Related products

• Raytech Gel Box Line - five transparent IPX8 gel boxes
• Raytech Ready Box and Baby Box - gel-filled IP68 junction boxes with terminal block and glands
• Raytech Wonder Gel - ready-to-use gel in a cartridge for boxes you already have
• Raytech Monogel - transparent single-component gel cartridge
• All Raytech insulating gel boxes

Frequently asked questions

Which connectors fit in Happy 2?

Happy 2 is designed for 3 x 4 mm² screw connectors; 2+2+2-way connectors for 2.5 mm² and 4 mm²; 5-way connectors for 4 mm² and 6 mm². Similar connectors of the same size also fit; if in doubt, send us the connector type and we will confirm.

What is the difference between Happy 2 and Happy 1?

Happy 2 measures 53 x 39 x 24 mm; Happy 1 is smaller (45 x 37 x 24 mm) for 3 x 2.5 mm² screw connectors and 3- to 5-way connectors. Choose the smallest box that takes your connector comfortably.

Is the price of Happy 2 per box or per blister?

The list price of Rs 997 is for one gel box. Happy 2 is packed 1 to a blister, so tell us the number of boxes you need.

Can the box be opened again later?

Yes. The gel does not set hard, so the lid can be opened to inspect or change the connection and then closed again.

Can it be used under water or underground?

Yes. The Happy boxes are IPX8 - officially tested by IMQ - fully submersible and suitable for underground use.

Where can I buy Raytech Happy 2 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel boxes and gel-filled joints across India. The list price is Rs 997 per gel box; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Raytech Happy 2 (item HAPPY2) is Rs 997 per gel box. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
