Raytech Ready Box and Baby Box - IP68/IP69K Gel-Filled Junction Boxes with Terminal Block and Glands

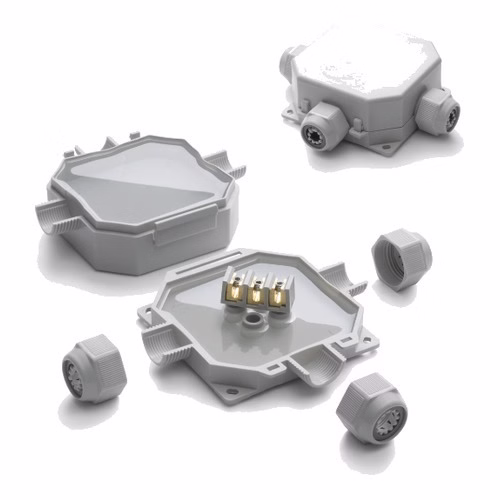

Raytech Ready Box and Baby Box are complete junction boxes that arrive pre-filled with gel, with an integrated terminal block and cable glands. Bring the cables in, connect them, snap the lid shut and the connection is sealed to IP68 and IP69K - there is nothing to pour, mix or cast. Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures.

Baby Box and Ready Box 90 have 3 entries and a 3 x 6 mm² terminal block; Ready Box 120 has 4 entries and a 5 x 6 mm² block. The glands take cable diameters of 8-18 mm, and the pre-threaded entries also accept conduit. Each model has its own page and price.

Choose your Ready Box and Baby Box size

Prices are per box (grey); black versions are made to order.

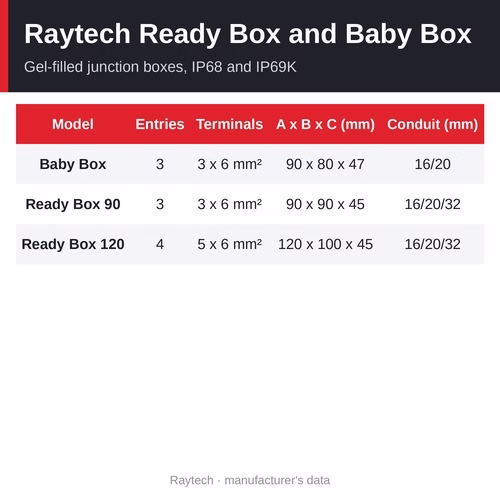

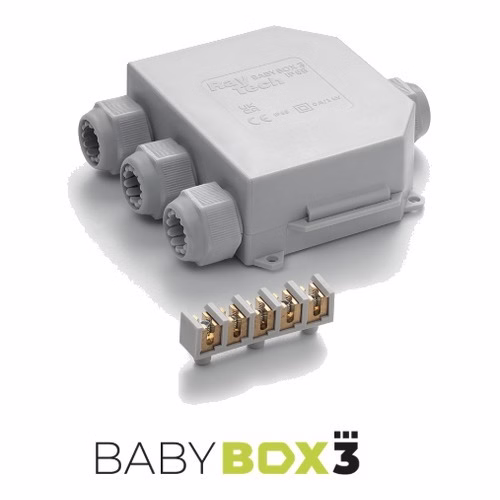

• Baby Box IP68 - 3 entries, 3 x 6 mm² terminals, 90 x 80 x 47 mm - Rs 5,105 per box
• Ready Box IP68 90 - 3 entries, 3 x 6 mm² terminals, 90 x 90 x 45 mm - Rs 5,710 per box
• Ready Box IP68 120 - 4 entries, 5 x 6 mm² terminals, 120 x 100 x 45 mm - Rs 7,419 per box

Ready Box or Baby Box?

Take Baby Box or Ready Box 90 for a 3-way junction of 3-core cables - Baby Box is the compact one (90 x 80 x 47 mm, conduit 16 or 20 mm), Ready Box 90 measures 90 x 90 x 45 mm and also accepts 32 mm conduit. Take Ready Box 120 for a 4-way junction or for 5-conductor (three-phase) circuits: it has 4 entries and a 5 x 6 mm² terminal block.

At a glance

• Models: Baby Box IP68 (3 entries), Ready Box IP68 90 (3 entries), Ready Box IP68 120 (4 entries)
• Price: Rs 5,105 - 7,419 per box
• Degree of protection: IP68 and IP69K
• Cable diameter: 8-18 mm (adapters for 8-13 and 13-18 mm)
• Integrated terminals: 3 x 6 mm² or 5 x 6 mm²
• Closure: snap-shut, no screws; wall or ceiling fixing

Technical data (common to all models)

• Electrical performance: CEI EN 50393 as applicable (tested under a water head and with water between the cable cores); Class 2 to CEI 64-8
• Fire behaviour: self-extinguishing and resistant to abnormal heat and fire - glow-wire test at 960 °C to EN 60695-2-11
• Halogen-free: to CEI EN 50267-2-2
• Gel: UL 94-HB; non-toxic; not classified as hazardous under CLP; gel operating range -60 °C to +200 °C
• Operating temperature: 90 °C
• Degree of protection: IP68 (IMQ officially tested) and IP69K
• Cable glands: adapters for cable diameter 8-13 mm and 13-18 mm
• Closure and fixing: snap-shut lid, no screws; wall or external ceiling fixing

Why choose Ready Box or Baby Box

• Everything in the box - gel, terminal block and cable glands; nothing to pour, mix or cast
• IP68 and IP69K - sealed even in wet or flooded locations and against hot high-pressure wash-down
• Snap-shut lid - no screws; pre-threaded entries for the cable glands
• No breaking out walls - unlike a standard box, the cable goes straight in through the entries
• Flexible wiring - also accepts extra-flat lever connectors and screw terminals instead of the integrated block
• Always re-enterable - open, change the circuit and close again
• Safe materials - gel non-toxic and not classified as hazardous under CLP; halogen-free, UV resistant, self-extinguishing
• No shelf life - keep stock in the store or on the van

How it is installed

1. Fix the base to a wall or ceiling, or leave it free on the cables. Fit the cable glands - with the adapter for 8-13 mm or 13-18 mm cable diameter - or bring conduit into the pre-threaded entries.
2. Connect the conductors to the integrated 6 mm² terminal block, or use extra-flat lever connectors or screw terminals if you prefer.
3. Snap the lid shut: the gel in the base and lid closes round the conductors and terminals. To modify the circuit later, open the box, change the connection and close it again.

Where it is used

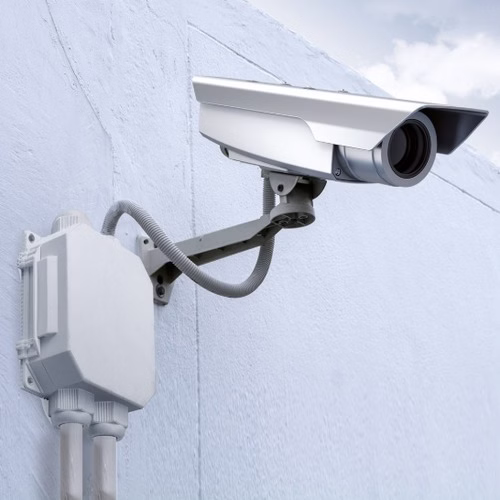

• CCTV cameras, access control and outdoor security equipment
• Street, garden and facade lighting
• Wet or flood-prone plant rooms, basements and pits
• Pumps, irrigation and water-treatment equipment
• Outdoor control equipment, sensors and signs on walls and poles
• Industrial and infrastructure sites where a sealed, re-enterable box saves time

Related products

• Raytech LittleJoint L - IP68 in-line micro-joints with integrated glands
• Raytech Happy IPX8 gel boxes - three mini boxes for a single wire connector
• Raytech Gel Box Line - five transparent IPX8 gel boxes
• Techno TH219 junction box - 4-way IP68 box for resin or gel filling
• All Raytech insulating gel boxes

Frequently asked questions

What is the difference between IP68 and IP69K?

IP68 covers continuous immersion in water; IP69K covers high-pressure, high-temperature water jets such as wash-down. Ready Box and Baby Box are rated for both.

Do I need to pour gel or resin into the box?

No. The boxes are supplied pre-filled with gel - there is nothing to pour, mix or cast.

What cable sizes fit?

The cable glands take cable diameters from 8 to 18 mm (with adapters for 8-13 and 13-18 mm), and the integrated terminals take conductors up to 6 mm².

Can I use lever connectors instead of the built-in terminal block?

Yes. The boxes also accept extra-flat lever connectors and screw terminals.

Where can I buy Raytech Ready Box and Baby Box in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel boxes and gel-filled joints across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the junction boxes.
