IP68 Gel-Filled Junction Box, 3 Entries, 3 x 6 sq mm Terminals - Raytech Ready Box 90 (READYBOX90)

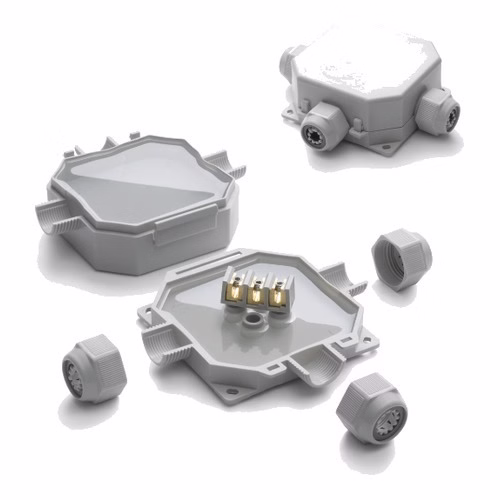

3 entries, 3 x 6 mm² terminal block, 90 x 90 x 45 mm. Raytech Ready Box 90 is the 3-entry Ready Box: a junction box that arrives pre-filled with gel, with an integrated terminal block and cable glands. Bring the cables in, connect them, snap the lid shut - no screws - and the connection is sealed to IP68 and IP69K. Item READYBOX90, list price Rs 5,710 per box.

Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures. The glands take cable diameters of 8-18 mm and the pre-threaded entries accept 16 / 20 / 32 mm conduit; a black version (Ready Box IP68 90/N) is also made.

Is this the right one for you?

Check these five things before you order:

• You need 3 cable entries (a 3-way junction).
• Your conductors fit the integrated 3 x 6 mm² terminal block - or you will use extra-flat lever connectors or screw terminals instead.
• The cables have an outside diameter of 8-18 mm, or arrive in 16 / 20 / 32 mm conduit.
• The box fits the space: 90 x 90 x 45 mm (A x B x C).
• You need IP68 / IP69K - wet, flooded, buried or hosed-down locations.

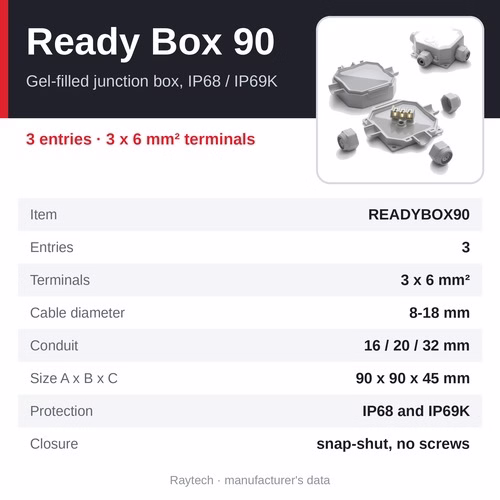

At a glance

• Price: Rs 5,710 per box
• Item code: READYBOX90 (grey); black version Ready Box IP68 90/N
• Entries: 3 with cable glands
• Integrated terminals: 3 x 6 mm²
• Cable diameter: 8-18 mm (glands with 8-13 and 13-18 mm adapters)
• Conduit: 16 / 20 / 32 mm
• Size (A x B x C): 90 x 90 x 45 mm
• Degree of protection: IP68 and IP69K

Specifications

• Model: Raytech Ready Box IP68 90
• Item code: READYBOX90; Ready Box IP68 90/N (black)
• Dimensions A x B x C: 90 x 90 x 45 mm
• Entries: 3, pre-threaded for cable glands
• Integrated connectors: 3 x 6 mm²
• Cable diameter: 8-18 mm
• Conduit entries: 16 / 20 / 32 mm
• Also accepts: extra-flat lever connectors and screw terminals
• Electrical performance: CEI EN 50393 as applicable (tested under a water head and with water between the cable cores); Class 2 to CEI 64-8
• Fire behaviour: self-extinguishing and resistant to abnormal heat and fire - glow-wire test at 960 °C to EN 60695-2-11
• Halogen-free: to CEI EN 50267-2-2
• Gel: UL 94-HB; non-toxic; not classified as hazardous under CLP; gel operating range -60 °C to +200 °C
• Operating temperature: 90 °C
• Degree of protection: IP68 (IMQ officially tested) and IP69K
• Cable glands: adapters for cable diameter 8-13 mm and 13-18 mm
• Closure and fixing: snap-shut lid, no screws; wall or external ceiling fixing

Why choose it

• Everything in the box - gel, terminal block and cable glands; nothing to pour, mix or cast
• IP68 and IP69K - sealed even in wet or flooded locations and against hot high-pressure wash-down
• Snap-shut lid - no screws; pre-threaded entries for the cable glands
• No breaking out walls - unlike a standard box, the cable goes straight in through the entries
• Flexible wiring - also accepts extra-flat lever connectors and screw terminals instead of the integrated block
• Always re-enterable - open, change the circuit and close again
• Safe materials - gel non-toxic and not classified as hazardous under CLP; halogen-free, UV resistant, self-extinguishing
• No shelf life - keep stock in the store or on the van

How it is installed

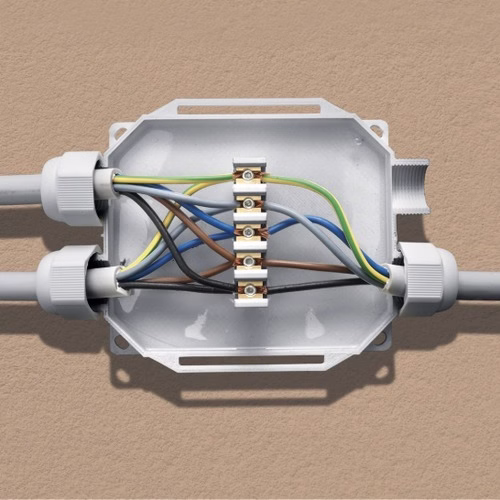

1. Fix the base to a wall or ceiling, or leave it free on the cables. Fit the cable glands - with the adapter for 8-13 mm or 13-18 mm cable diameter - or bring conduit into the pre-threaded entries.
2. Connect the conductors to the integrated 6 mm² terminal block, or use extra-flat lever connectors or screw terminals if you prefer.
3. Snap the lid shut: the gel in the base and lid closes round the conductors and terminals. To modify the circuit later, open the box, change the connection and close it again.

Where it is used

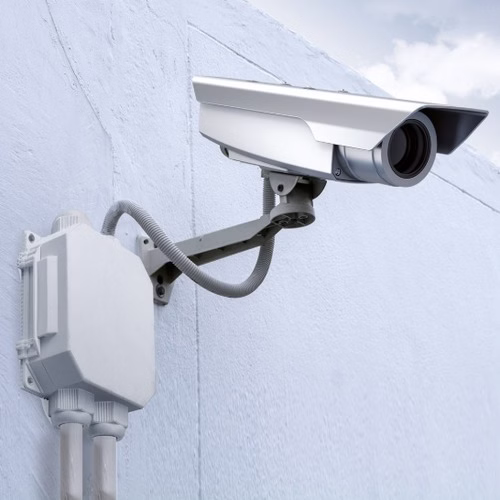

• CCTV cameras, access control and outdoor security equipment
• Street, garden and facade lighting
• Wet or flood-prone plant rooms, basements and pits
• Pumps, irrigation and water-treatment equipment
• Outdoor control equipment, sensors and signs on walls and poles
• Industrial and infrastructure sites where a sealed, re-enterable box saves time

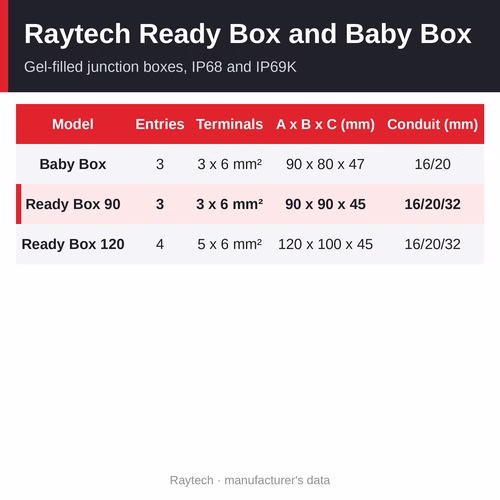

Other sizes and versions

The Raytech Ready Box and Baby Box overview page compares all 3 side by side.

• Baby Box IP68 - 3 entries, 3 x 6 mm² terminals, 90 x 80 x 47 mm - Rs 5,105 per box
• Ready Box IP68 90 - 3 entries, 3 x 6 mm² terminals, 90 x 90 x 45 mm - Rs 5,710 per box (this page)
• Ready Box IP68 120 - 4 entries, 5 x 6 mm² terminals, 120 x 100 x 45 mm - Rs 7,419 per box

Related products

• Raytech LittleJoint L - IP68 in-line micro-joints with integrated glands
• Raytech Happy IPX8 gel boxes - three mini boxes for a single wire connector
• Techno TH219 junction box - 4-way IP68 box for resin or gel filling
• Raytech Wonder Gel - ready-to-use gel in a cartridge for boxes you already have
• All Raytech insulating gel boxes

Frequently asked questions

What cable sizes fit Ready Box 90?

The cable glands take cable diameters of 8-18 mm (with adapters for 8-13 and 13-18 mm), conduit of 16 / 20 / 32 mm fits the entries, and the integrated terminals take conductors up to 6 mm².

How is Ready Box 90 different from Baby Box?

Ready Box 90 has 3 entries and a 3 x 6 mm² terminal block in a 90 x 90 x 45 mm box; Baby Box is a little more compact (90 x 80 x 47 mm) with conduit entries for 16 and 20 mm.

Do I need to pour gel or resin into the box?

No. The box is supplied pre-filled with gel - there is nothing to pour, mix or cast.

What is the difference between IP68 and IP69K?

IP68 covers continuous immersion in water; IP69K covers close-range, high-pressure, high-temperature spray, as in wash-down. The box is rated for both.

Can I use lever connectors instead of the built-in terminal block?

Yes. The box also accepts extra-flat lever connectors and screw terminals.

Where can I buy Raytech Ready Box 90 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel boxes and gel-filled joints across India. The list price is Rs 5,710 per box; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Raytech Ready Box 90 (item READYBOX90) is Rs 5,710 per box. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
