Two-Component Liquid Insulating Rubber, Fast-Curing, 500 g - Raytech Magic Rubber 500 (MAGIC-RUBBER)

500 g, 1 single two-component bottle, 1 jug and 1 wooden spatula. Raytech Magic Rubber 500 is a two-component liquid insulating rubber: very fluid and conformable when poured, it turns within minutes into a flexible, elastic rubber with very high dielectric, thermal and mechanical properties - and stays re-enterable. Item MAGIC-RUBBER, list price Rs 9,387 per pack - about Rs 1,877 per 100 g.

Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures. Magic Rubber is for installations up to 1 kV, gives low smoke, toxic and corrosive gas emissions, is also ideal for casts and moulds, and has no shelf life. It is the smallest pack; the next size up is Magic Rubber 10 (10 kg).

Is this the right one for you?

Check these four things before you order:

• You need a solid but flexible rubber filling (not a gel) for a casing on an installation up to 1 kV, or a cast or mould.
• The quantity suits the job: 500 g (1 single two-component bottle, 1 jug and 1 wooden spatula). Specific weight is about 1.22, so 1 kg fills roughly 820 ml.
• You can mix 1:1 and pour quickly - mix for no more than 30 seconds.
• The casing is suitable for casting - IP68 is reached in a suitable casing.

At a glance

• Price: Rs 9,387 per pack
• Item code: MAGIC-RUBBER
• Quantity: 500 g
• Package: 1 single two-component bottle, 1 jug and 1 wooden spatula
• Works out to: about Rs 1,877 per 100 g
• Cross-linking time: 15 minutes at 23 °C
• Dielectric strength: > 20 kV/mm
• Degree of protection: IP68 in a suitable casing

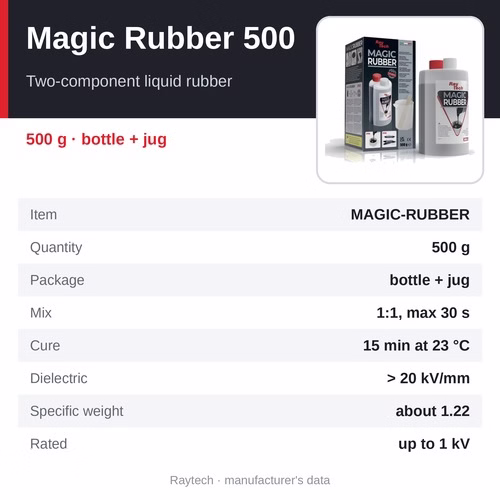

Specifications

• Product: Raytech Magic Rubber 500
• Item code: MAGIC-RUBBER
• Quantity: 500 g
• Package contents: 1 single two-component bottle, 1 jug and 1 wooden spatula
• Cross-linking time: 15 minutes at 23 °C
• Volume resistivity: > 2 x 10^15 Ω·cm
• Dielectric strength: > 20 kV/mm
• Specific weight: about 1.22
• Mixing ratio: 1:1, mixed for no more than 30 seconds
• Degree of protection: IP68 when cast in a suitable casing
• Rated for: installations up to 1 kV
• Other: low smoke, toxic and corrosive gas emissions; no shelf life

Why choose Magic Rubber

• Fluid when poured - extremely conformable, fills around conductors and parts
• Rubber in minutes - flexible and elastic, with very high dielectric, thermal and mechanical properties
• Re-enterable
• Low smoke, toxic and corrosive gas emissions
• For casts and moulds too
• No shelf life

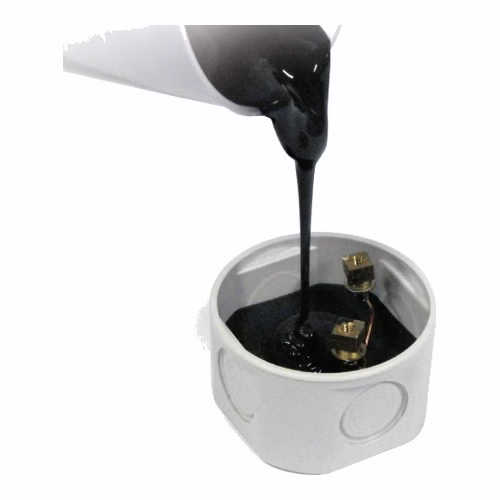

How to use it

1. Mix the two components in a 1:1 ratio, for no more than 30 seconds.
2. Pour the mix into the casing to be filled.
3. Within a few minutes it turns into rubber; cross-linking takes 15 minutes at 23 °C.

Where it is used

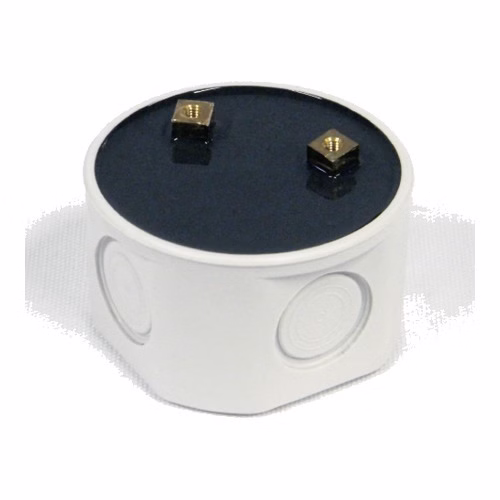

• Filling joint shells and boxes where a rubber rather than a gel is wanted
• Insulating connections on installations up to 1 kV
• Casting and moulding insulating parts on site
• Encapsulating components that need a tough, elastic cover

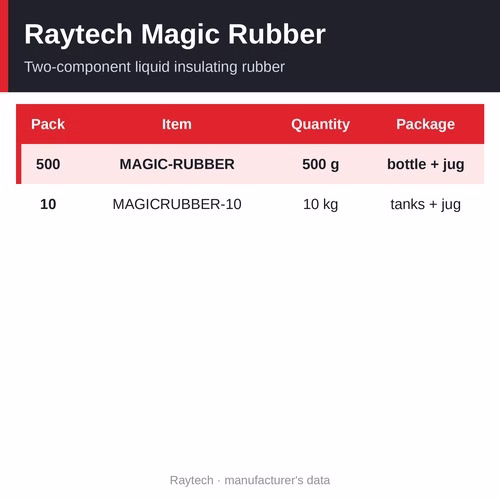

Other sizes and versions

The Raytech Magic Rubber overview page compares all 2 side by side.

• Magic Rubber 500 - 500 g, 1 single two-component bottle, 1 jug and 1 wooden spatula (about Rs 1,877 per 100 g) - Rs 9,387 per pack (this page)
• Magic Rubber 10 - 10 kg, two-component tanks, 1 jug and 1 wooden spatula (about Rs 1,650 per 100 g) - Rs 165,037 per pack

Related products

• Raytech Sky Plast - mouldable two-component rubber paste for wrapping and sealing
• Raytech Magic Gel - two-component gel for joint shells and enclosures
• Raytech Magic Power Gel - re-usable gel in a single twin-compartment bottle
• All Raytech insulating filling rubbers

Frequently asked questions

How much does Magic Rubber 500 fill?

With a specific weight of about 1.22, 500 g fills roughly 410 ml of free space.

What is in the Magic Rubber 500 pack?

1 single two-component bottle, 1 jug and 1 wooden spatula - 500 g in total. The list price is Rs 9,387 per pack, about Rs 1,877 per 100 g.

How is Magic Rubber different from Magic Gel?

Magic Gel cures into a soft gel; Magic Rubber cures into a flexible, elastic rubber with high mechanical strength - and both are re-enterable.

How long does it take to cure?

It turns into rubber within a few minutes; full cross-linking takes 15 minutes at 23 °C.

Is it suitable for 1 kV installations?

Yes - Raytech rates Magic Rubber for installations up to 1 kV.

Where can I buy Raytech Magic Rubber 500 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech insulating gels and rubbers across India. The list price is Rs 9,387 per pack; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Raytech Magic Rubber 500 (item MAGIC-RUBBER) is Rs 9,387 per pack. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
