Transparent Single-Component Insulating Gel Cartridge, 300 ml - Raytech Monogel (MONOGEL)

300 ml cartridge, transparent, ready to use. Raytech Monogel is a single-component, transparent insulating gel for general use. It comes ready to use in a cartridge with a dosing nozzle, and because it is clear the connection stays visible and can be inspected. Item MONOGEL, list price Rs 3,439 per cartridge - about Rs 1,146 per 100 ml.

Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures. Monogel gives IP68 in a suitable casing, is not classified as hazardous under CLP and has no shelf life.

Is this the right one for you?

Check these four things before you order:

• You want a ready-to-use gel with nothing to mix.
• The connection should stay visible - Monogel is transparent.
• The casing is suitable - IP68 is reached only in a suitable casing.
• You will install between -40 °C and +110 °C.

At a glance

• Price: Rs 3,439 per cartridge
• Item code: MONOGEL
• Quantity: 300 ml
• Colour: transparent
• Package: cartridge with dosing nozzle
• Works out to: about Rs 1,146 per 100 ml
• Mixing: none
• Degree of protection: IP68 in a suitable casing

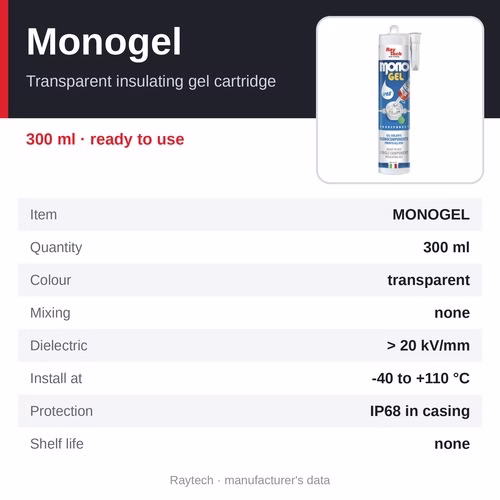

Specifications

• Product: Raytech Monogel
• Item code: MONOGEL
• Quantity: 300 ml
• Colour: transparent
• Package: cartridge with dosing nozzle
• Dielectric strength: > 20 kV/mm
• Operating temperature: -60 °C to +200 °C
• Installation temperature: -40 °C to +110 °C
• Degree of protection: IP68 when used in a suitable casing
• Gel: UL 94-HB; single-component
• Classification: not classified as hazardous under the CLP Regulation; no shelf life

Why choose Monogel

• Transparent - connections stay visible and inspectable
• Ready to use - single-component, nothing to mix
• General use - boxes and connections of all kinds
• No shelf life; not classified as hazardous under CLP

How to use it

1. Fit the cartridge in a standard sealant gun and cut the dosing nozzle.
2. Fill the box or casing around the connections.
3. Close the casing - the gel needs no curing time, and the connection can be inspected through it.

Where it is used

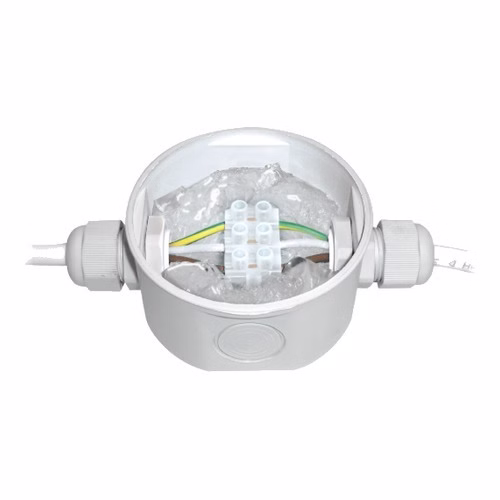

• Junction and connection boxes indoors and outdoors
• Connections that must stay visible for inspection
• Damp locations
• General maintenance

Related products

• Raytech Wonder Gel - ready-to-use gel in a cartridge for boxes you already have
• Raytech Wonder Fluid 280 - ready-to-use fluid gel for injecting into joint shells
• Raytech Ray Gel - transparent silicone gel for telecom, LEDs and electronics
• All Raytech insulating filler gels

Frequently asked questions

Is Monogel transparent?

Yes - it is a clear gel, so the connection stays visible and inspectable.

Does it need mixing?

No - it is a single-component gel, ready to use from the cartridge.

How is Monogel different from Wonder Gel Invisible?

Both are ready-to-use transparent gels in a cartridge. Monogel is a 300 ml general-use gel; Wonder Gel Invisible is a 280 ml, very sticky, self-levelling gel made for filling enclosures.

What temperatures can it handle?

Install it between -40 °C and +110 °C; in service it works from -60 °C to +200 °C.

Where can I buy Raytech Monogel in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech insulating gels and rubbers across India. The list price is Rs 3,439 per cartridge; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Raytech Monogel (item MONOGEL) is Rs 3,439 per cartridge. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
