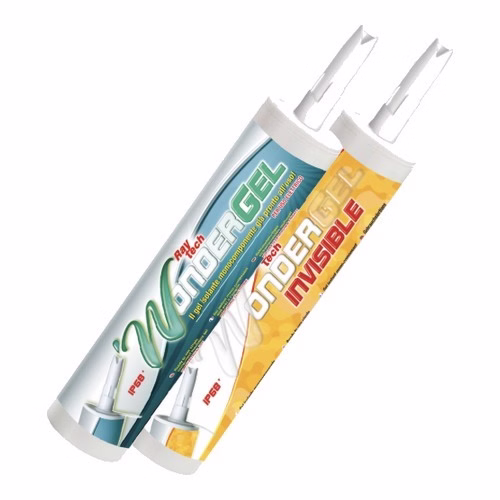

Raytech Wonder Gel - Ready-to-Use Insulating Gel in a 280 ml Cartridge, Green or Transparent

Raytech Wonder Gel is a ready-to-use insulating gel in a 280 ml cartridge. It is single-component and already cross-linked, so there is nothing to mix and no waiting: squeeze it into the enclosure with a standard gun and close the lid. Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures.

It protects connections in empty enclosures from moisture, oxidation, corrosion and insects, stays soft for good and gives IP68 in a suitable casing. It comes in light green (Wonder Gel) and transparent (Wonder Gel Invisible).

Choose your Wonder Gel pack

Both cartridges have the same list price.

• Wonder Gel - 280 ml, cartridge with dosing nozzle (about Rs 1,522 per 100 ml) - Rs 4,261 per cartridge
• Wonder Gel Invisible - 280 ml, cartridge with dosing nozzle (about Rs 1,522 per 100 ml) - Rs 4,261 per cartridge

How to choose the pack

Take Wonder Gel (light green) when you want to see at a glance that a box has been filled, and Wonder Gel Invisible (transparent) when the connections must stay visible for inspection.

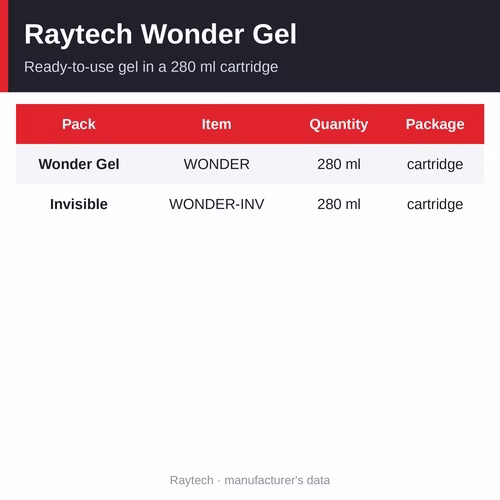

At a glance

• Versions: Wonder Gel (light green), Wonder Gel Invisible (transparent)
• Pack: 280 ml cartridge with dosing nozzle
• Price: Rs 4,261 per cartridge
• Mixing: none - already cross-linked
• Degree of protection: IP68 in a suitable casing

Technical data

• Dielectric strength: > 20 kV/mm
• Volume resistivity: > 2 x 10^15 Ω·cm
• Operating temperature: -60 °C to +200 °C
• Overload temperature: up to 250 °C for short periods
• Stabilised against: mould and UV
• Degree of protection: IP68 when dispensed into a suitable casing
• Gel: UL 94-HB; single-component; already cross-linked
• Classification: not classified as hazardous under the CLP Regulation; no shelf life

Why choose Wonder Gel

• Ready to use - no mixing, already cross-linked, no waiting
• Stops moisture faults - prevents outages from poor insulation or sealing
• Keeps insects out of enclosures
• Protects connections from oxidation and corrosion
• Cartridge with dosing nozzle - fits a standard gun, measurable, no waste, quick even in awkward places
• Stays soft and never dries - re-enterable and inspectable; no shelf life
• Any weather - can be applied in all climatic conditions

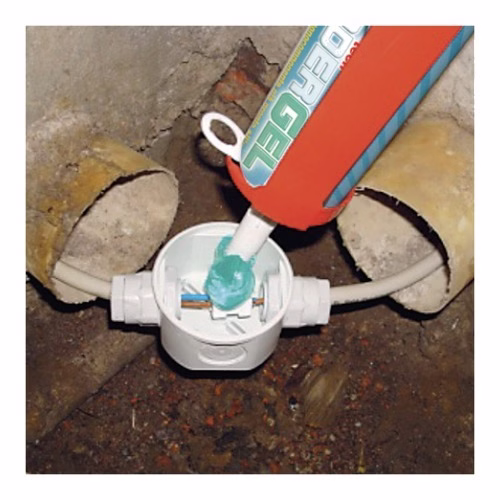

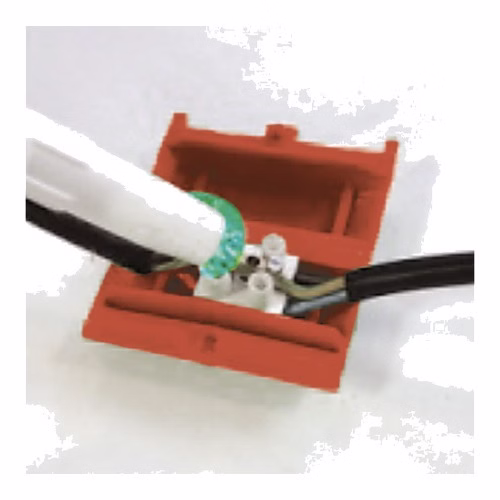

How to use it

1. Fit the cartridge in a standard sealant gun and cut the dosing nozzle.
2. Fill the enclosure around the connections - the gel is very fluid and self-levelling.
3. Close the enclosure. There is no curing time; to inspect or change a connection later, open the enclosure and lift the gel away.

Where it is used

• CCTV and video-surveillance connections
• Outdoor and external systems
• Connections in damp locations
• Underground connections
• In-ground luminaires
• Small connection boxes

Related products

• Raytech Wonder Fluid 280 - ready-to-use fluid gel for injecting into joint shells
• Raytech Monogel - transparent single-component gel cartridge
• Raytech Happy IPX8 gel boxes - three mini boxes for a single wire connector
• Raytech Magic Gel - two-component gel for joint shells and enclosures
• All Raytech insulating filler gels

Frequently asked questions

What is Wonder Gel?

A ready-to-use, single-component insulating gel in a cartridge for protecting electrical connections inside enclosures.

What is the difference between Wonder Gel and Wonder Gel Invisible?

Only the colour: Wonder Gel is light green, Wonder Gel Invisible is transparent.

Do I need a special gun?

No - the cartridge fits a standard sealant gun.
