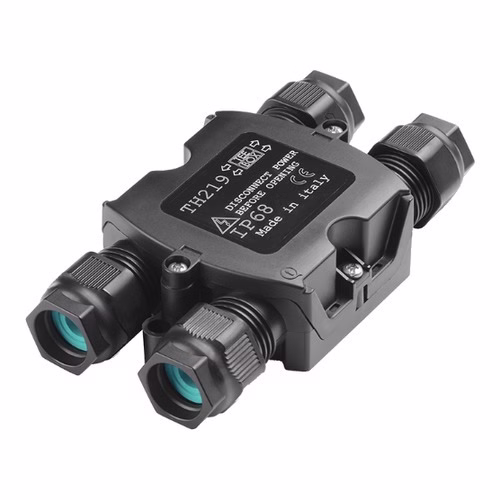

IP68 4-Way Junction Box for Resin or Gel Filling, Cable 7-13.5 mm - Techno TH219 (THA.219.A1A)

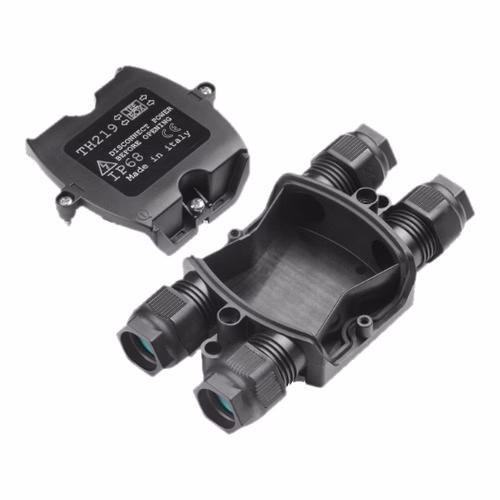

4 cable entries, cable 7-13.5 mm, 121 x 64.5 x 28 mm, IP66 / IP68 (5 m / 3 h). Techno TH219 is a compact 4-way junction box - the Tee Box - made to be filled with resin or gel around the connection. It has no terminal block of its own: the free space inside, 50 x 40 x 24 mm, takes your connector, and the filling seals it. Order code THA.219.A1A, list price Rs 2,080 per piece.

Techno s.r.l., of Guanzate near Como in Italy, designs and makes waterproof electrical connectors - the Tee Tube joints, Tee Plug plug-and-socket connectors and Tee Box junction boxes - for outdoor lighting and installations exposed to water and dust. To fill the box, see Raytech Magic Gel or Wonder Gel below.

Is this the right one for you?

Check these five things before you order:

• You need a 4-way junction.
• Each cable has an outside diameter of 7-13.5 mm.
• You will make the connection with your own connector and fill the box with resin or gel.
• The location is within -40 °C to +60 °C.
• The box fits the space: 121 x 64.5 x 28 mm.

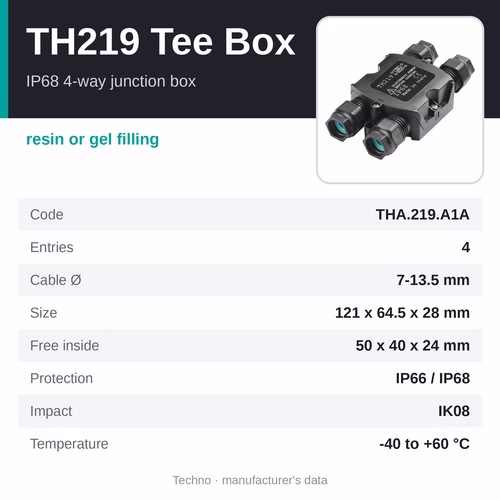

At a glance

• Price: Rs 2,080 per piece
• Order code: THA.219.A1A
• Cable entries: 4
• Cable outside diameter: 7-13.5 mm
• Size: 121 x 64.5 x 28 mm
• Free internal space: 50 x 40 x 24 mm
• Degree of protection: IP66 / IP68 (Techno test: 5 m / 3 h)
• Filling: resin or gel

Specifications

• Product: Techno TH219 Tee Box
• Order code: THA.219.A1A
• Cable entries: 4
• Cable outside diameter: 7-13.5 mm
• Dimensions: 121 x 64.5 x 28 mm
• Weight: 71.3 g
• Packing: box of 100
• Degree of protection: IP66 / IP68 (Techno test: 5 m / 3 h)
• Configuration: 4-way junction box for resin or gel filling (no terminal block)
• Installation: fixed connection
• Temperature range: -40 °C to +60 °C
• Impact resistance: IK08
• Body: PA66, UL94 V2
• Seals: TPE
• Grommets: TPE
• Materials: halogen-free and silicone-free
• Tightening torques: gland nut 2.5 Nm; lid screws 1.0 Nm
• Corrosion: salt-mist tested to EN 60068-2-11
• Standard: EN 60529:1991 and EN 60998-1:2004

Why choose TH219

• Made for resin or gel filling - seal any connector inside to IP68
• Four sealed cable glands for 7-13.5 mm cable
• Compact - 121 x 64.5 x 28 mm with 50 x 40 x 24 mm free inside
• Impact rated IK08; PA66 body to UL94 V2
• Stainless-steel lid screws; halogen-free and silicone-free
• Salt-mist tested to EN 60068-2-11; built to EN 60529 and EN 60998-1

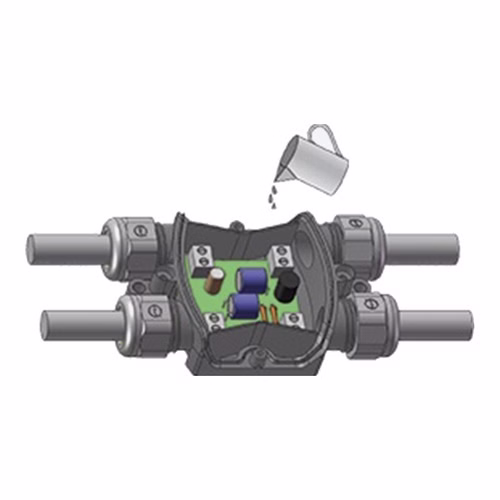

How it is installed

1. Fit the cables through the glands and make the connection inside the box with a suitable connector.
2. Fill the box with resin or insulating gel so it surrounds the connection.
3. Fit the lid (screws 1.0 Nm) and tighten the gland nuts (2.5 Nm).

Where it is used

• Outdoor and underground junctions for lighting circuits
• Junctions in pits, ducts and flood-prone places
• Street, garden and facade lighting
• Connections to pumps and outdoor equipment

Related products

• Raytech Magic Gel - two-component gel for joint shells and enclosures
• Raytech Wonder Gel - ready-to-use gel in a cartridge for boxes you already have
• Techno grommets and adapters - seal smaller or several cables in the glands
• Techno TH392 "H" distributors - IP68, one cable in and three out
• All Techno IP68 waterproof connectors

Frequently asked questions

Does TH219 have a terminal block?

No - it is a junction box made to be filled with resin or gel around your own connector. Techno lists a terminal block as an optional accessory.

What can I fill it with?

Resin or an insulating gel - for example Raytech Magic Gel or Wonder Gel.

How waterproof is it?

IP66 and IP68 - Techno tests it at 5 m for 3 hours.

Where can I buy Techno TH219 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Techno IP68 connectors across India. The list price is Rs 2,080 per piece; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Techno TH219 (THA.219.A1A) is Rs 2,080 per piece. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
