Raytech LittleJoint L - IP68/IP69K Gel-Filled In-line Micro-Joints: Barney, Fred, Dino, Betty and Tom

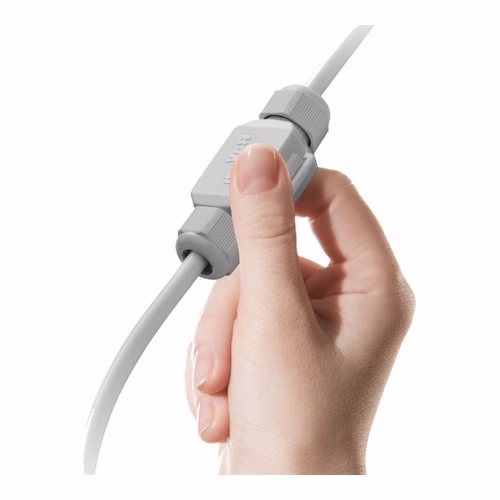

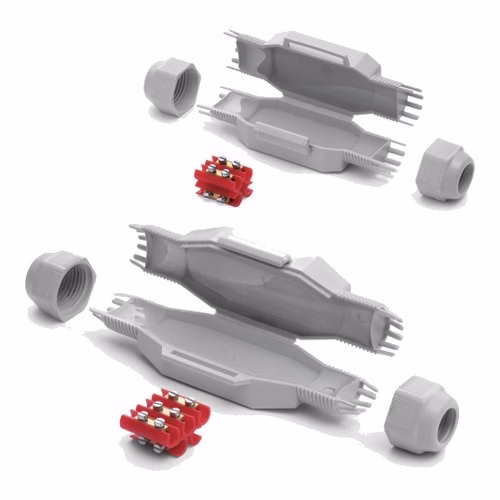

Raytech LittleJoint L is a range of in-line micro-joints that come pre-filled with soft gel and complete with a screw connector. Integrated cable glands seal the joint to IP68 and IP69K and hold the cables, so they suit any installation - buried, submerged or hosed down. Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures.

Six sizes run from Barney (2 x 2.5 mm², cable diameter 6-10 mm) to Tom (5 x 16 mm², 19-23 mm). Each size has its own page with the cable it fits and its price; for branch connections see LittleJoint Y, and for three or four cables Bob 3 and Bob 4.

Choose your LittleJoint L size

Prices are per joint, each supplied in its own blister with the connector.

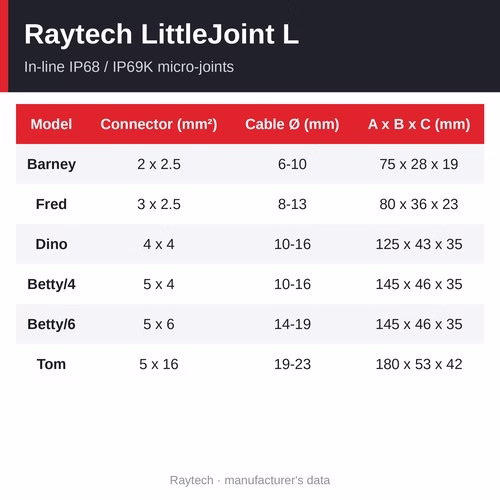

• Barney - 2 x 2.5 mm² connector, cable diameter 6-10 mm - Rs 1,361 per joint
• Fred - 3 x 2.5 mm² connector, cable diameter 8-13 mm - Rs 1,761 per joint
• Dino - 4 x 4 mm² connector, cable diameter 10-16 mm - Rs 3,699 per joint

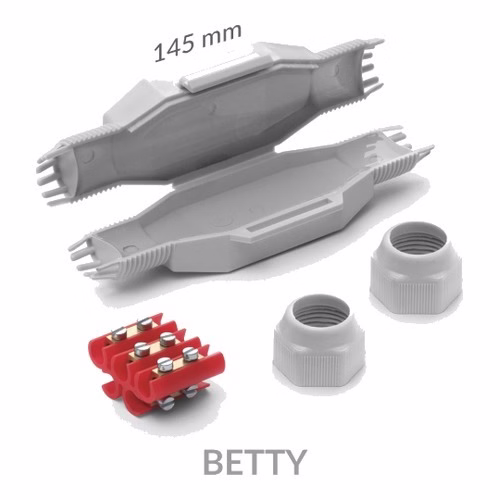

• Betty/4 - 5 x 4 mm² connector, cable diameter 10-16 mm - Rs 4,413 per joint
• Betty/6 - 5 x 6 mm² connector, cable diameter 14-19 mm - Rs 4,456 per joint
• Tom - 5 x 16 mm² connector, cable diameter 19-23 mm - Rs 5,732 per joint

How to choose the size

Pick the size by the number and size of conductors first, then check that the cable outside diameter is within the gland range. Two-core lighting cable up to 2.5 mm² takes Barney and three-core 2.5 mm² cable Fred. For four cores up to 4 mm² use Dino; five cores take Betty/4 (4 mm²) or Betty/6 (6 mm²), and five-core 16 mm² cable Tom.

At a glance

• Sizes: Barney, Fred, Dino, Betty/4, Betty/6, Tom
• Connectors: 2 x 2.5 to 5 x 16 mm² (supplied)
• Cable diameter: 6-23 mm, depending on size
• Degree of protection: IP68 and IP69K
• Price: Rs 1,361 - 5,732 per joint
• Colours: grey; black (-N) on request

Technical data (common to all sizes)

• Electrical performance: CEI EN 50393 as applicable
• Gel: UL 94-HB
• Operating temperature: 90 °C
• Installation temperature: -40 °C to +50 °C
• Degree of protection: IP68 (IMQ officially tested) and IP69K (officially tested)
• Colour: grey; black on request (-N versions)

Why choose LittleJoint

• Pre-filled and ready to install - extremely compact, with soft, highly conformable gel
• Integrated cable glands - IP68 and IP69K sealing plus cable retention, so the joint cannot be pulled apart
• Complete with screw connector - nothing else to buy
• Always re-enterable - open, check and close again
• Fully submersible and suitable for underground use
• Gel not classified as hazardous under CLP; halogen-free and UV resistant
• Discreet - small and neat where it is visible, in grey or black (-N)

How it is installed

1. Strip the cable sheaths and conductors, slide the cable glands and seals onto the two cables.
2. Connect the conductors in the supplied screw connector and lay it in the gel-filled shell.
3. Close the shell and tighten the glands - the gel closes round the connector and the glands seal on the cable sheaths and hold the cables.

Where it is used

• Garden, path and step lighting
• Bollards, in-ground uplights and spotlights
• Lighting at pedestrian crossings and stairways
• Connections in pits, traps and underground runs
• Fountains, pools and water features (connections under water)
• Signs and small outdoor equipment

Related products

• Raytech LittleJoint Y - IP68 branch micro-joints
• Raytech Bob 3 and Bob 4 - IP68 multi-branch joints for lighting circuits
• Raytech Ready Box and Baby Box - gel-filled IP68 junction boxes with terminal block and glands
• Raytech Super Clik - gel joints for 0.6/1 kV multi-core cable, straight or branch
• All Raytech low-voltage pre-filled joints

Frequently asked questions

What is a micro-joint?

A very small cable joint for low-voltage lighting and small-power circuits: here a gel-filled shell with a screw connector and cable glands, small enough to sit in a lighting pit or behind a fitting.

Which LittleJoint size do I need?

Choose by conductors, then cable diameter: Barney 2 x 2.5 mm² (6-10 mm), Fred 3 x 2.5 (8-13), Dino 4 x 4 (10-16), Betty/4 5 x 4 (10-16), Betty/6 5 x 6 (14-19), Tom 5 x 16 (19-23).

What do IP68 and IP69K mean here?

IP68: dust-tight and protected against permanent immersion. IP69K: protected against close-range high-pressure, high-temperature spray. LittleJoint is officially tested for both.

Is the connector included?

Yes - every LittleJoint is supplied pre-filled with gel and with its screw connector.

Where can I buy Raytech LittleJoint in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel boxes and gel-filled joints across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the joints.
