Raytech Bob 3 and Bob 4 (LittleJoint X) - IP68/IP69K Gel-Filled Multi-Branch Joints for Lighting

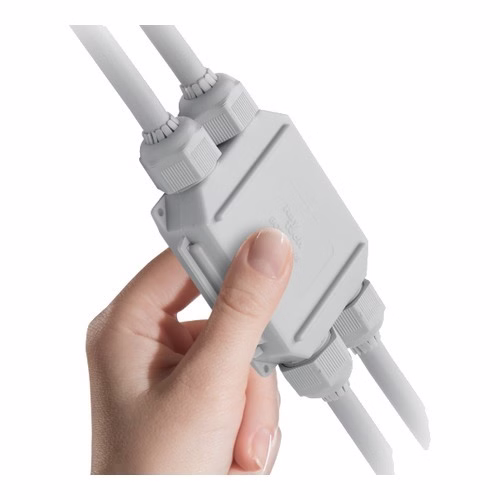

Raytech Bob 3 and Bob 4 - the LittleJoint X family - are gel-filled multi-branch joints for parallel lighting circuits. One supply cable comes in and two or three branches go out to light fittings or spotlights, all sealed to IP68 and IP69K in a compact, re-enterable shell. Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures.

Both take 3 x 4 or 3 x 2.5 mm² cable with an outside diameter of 8-13 mm. Each has its own page and price.

Choose your Bob 3 and Bob 4 size

Prices are per joint, one per blister with the connector.

• Bob 3 - 1 cable in, 2 cables 3 x 4, or 2 cables 3 x 2.5, cable diameter 8-13 mm - Rs 4,283 per joint
• Bob 4 - 1 cable in, 2 cables 3 x 4, or 3 cables 3 x 2.5, cable diameter 8-13 mm - Rs 4,737 per joint

Bob 3 or Bob 4?

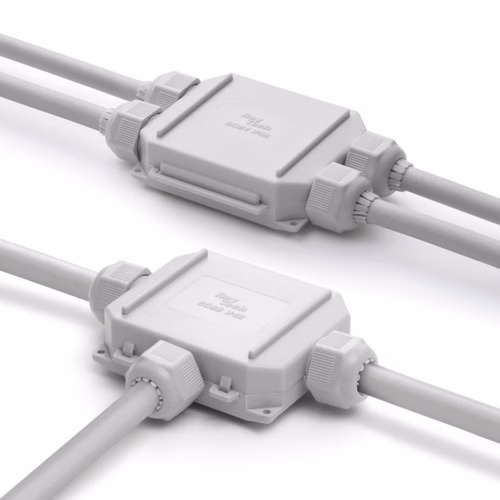

Bob 3 splits one cable into two branches (3 x 4 or 3 x 2.5 mm²). Bob 4 splits one cable into two branches of 3 x 4 mm² or three branches of 3 x 2.5 mm² - for example a parallel 5-lamp system.

At a glance

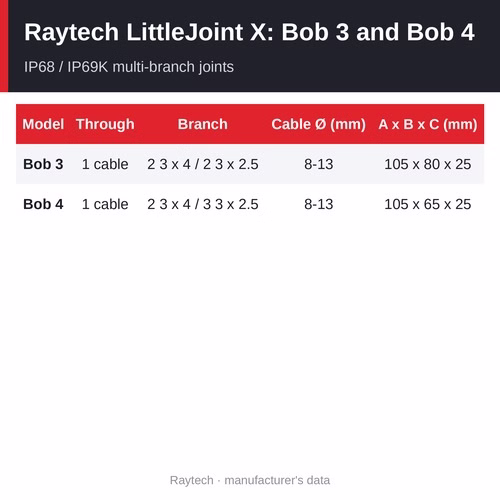

• Models: Bob 3 (105 x 80 x 25 mm), Bob 4 (105 x 65 x 25 mm)
• Connector: 3 x 4 mm², supplied
• Cable diameter: 8-13 mm
• Degree of protection: IP68 and IP69K
• Price: Rs 4,283 - 4,737 per joint

Technical data (common to both)

• Electrical performance: CEI EN 50393 as applicable
• Gel: UL 94-HB
• Operating temperature: 90 °C
• Installation temperature: -40 °C to +50 °C
• Degree of protection: IP68 (IMQ officially tested) and IP69K (officially tested)
• Electrical: Class 2 in accordance with CEI 64-8
• Fire behaviour: glow-wire flammability index 960 °C to EN 60695-2-12
• Colour: grey; black on request (BOB3-N, BOB4-N)

Why choose Bob 3 and Bob 4

• Pre-filled and ready to install - extremely compact, with soft, highly conformable gel
• Integrated cable glands - IP68 and IP69K sealing plus cable retention, so the joint cannot be pulled apart
• Complete with screw connector - nothing else to buy
• Built for parallel lighting circuits - one supply cable in, two or three branches out
• Self-extinguishing - glow-wire flammability index 960 °C (EN 60695-2-12)
• Always re-enterable - open, check and close again
• Fully submersible and suitable for underground use
• Gel not classified as hazardous under CLP; halogen-free and UV resistant

How it is installed

1. Prepare the incoming cable and the branch cables, and slide the glands and seals onto each.

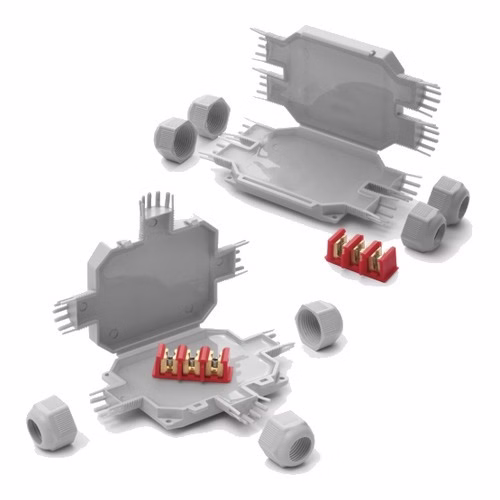

2. Connect the conductors in the supplied 3 x 4 mm² connector (or a screw terminal strip for four-core RGB circuits) and lay it in the gel-filled shell.
3. Close the shell and tighten the glands on every entry.

Where it is used

• Parallel branch systems with three three-core cables up to 3 x 4 mm²
• Parallel 5-lamp connection systems (Bob 4)
• 3-LED spotlight series circuits and RGB spotlight parallel circuits
• Branch connections in lighting pits and traps where water and moisture are present
• Garden, facade and in-ground lighting

Related products

• Raytech LittleJoint Y - IP68 branch micro-joints
• Raytech LittleJoint L - IP68 in-line micro-joints with integrated glands
• Raytech Ready Box and Baby Box - gel-filled IP68 junction boxes with terminal block and glands
• All Raytech low-voltage pre-filled joints

Frequently asked questions

What does LittleJoint X mean?

It is the family name of Bob 3 and Bob 4 - Raytech micro-joints with four entries for branching one cable into several.

Which one do I need?

Bob 3 for two branches; Bob 4 for two branches of 3 x 4 mm² or three branches of 3 x 2.5 mm².

Can they be used under water?

Yes - IP68 and IP69K, fully submersible and suitable for underground use.

Is the connector included?

Yes, a 3 x 4 mm² connector is supplied; for four-core RGB circuits a screw terminal strip (not included) is used.

Where can I buy Raytech Bob 3 and Bob 4 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel boxes and gel-filled joints across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the joints.
