Raytech LittleJoint Y - IP68/IP69K Gel-Filled Y Branch Micro-Joints: Barney Y, Fred Y and Dino Y

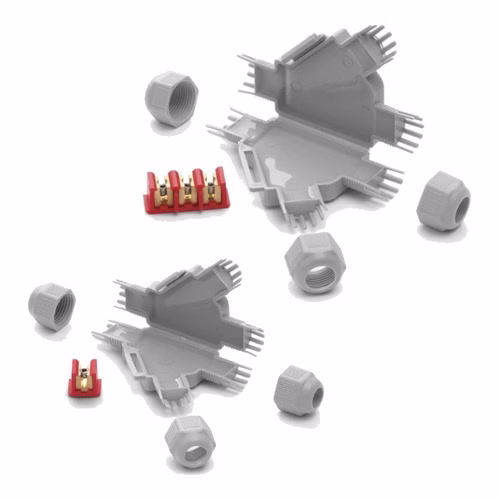

Raytech LittleJoint Y is a family of gel-filled branch micro-joints for tapping a light fitting or spotlight off a through cable. Each joint is pre-filled, complete with its connector and three integrated cable glands, and sealed to IP68 and IP69K. Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures.

Three sizes cover single-core, three-core and five-core cable from 6 to 19 mm diameter. Each size has its own page and price.

Choose your LittleJoint Y size

Prices are per joint, one per blister with the connector.

• Barney Y - through 1 x 4 or 1 x 2.5 mm², branch 1 x 1.5 or 1 x 2.5 mm², cable diameter 6-10 mm - Rs 3,331 per joint

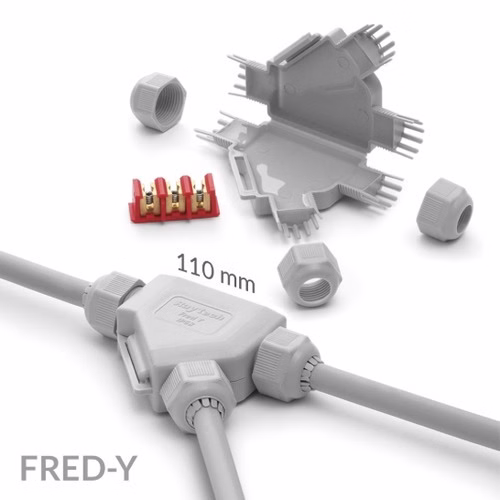

• Fred Y - through 3 x 4 or 3 x 2.5 mm², branch 3 x 1.5 or 3 x 2.5 mm², cable diameter 8-13 mm - Rs 4,066 per joint
• Dino Y - through 5 x 6 or 5 x 4 (rigid) mm², branch 5 x 1.5 or 5 x 2.5 (rigid) mm², cable diameter 14-19 mm - Rs 6,316 per joint

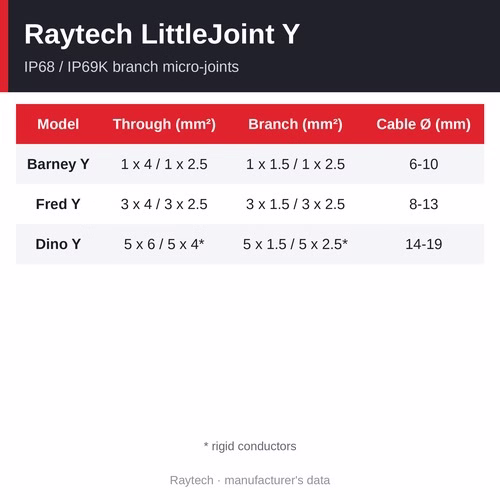

How to choose the size

Barney Y is for single-core cable: a through conductor of 1 x 4 or 1 x 2.5 mm² and a branch of 1 x 1.5 or 1 x 2.5 mm², cable 6-10 mm. Fred Y takes three-core cable up to 3 x 4 mm² through and 3 x 2.5 mm² branch (8-13 mm). Dino Y is for five-core cable up to 5 x 6 mm² through (14-19 mm).

At a glance

• Sizes: Barney Y, Fred Y, Dino Y
• Cable diameter: 6-10, 8-13 and 14-19 mm
• Degree of protection: IP68 and IP69K
• Price: Rs 3,331 - 6,316 per joint
• Colours: grey; black (-N) on request

Technical data (common to all sizes)

• Electrical performance: CEI EN 50393 as applicable
• Gel: UL 94-HB
• Operating temperature: 90 °C
• Installation temperature: -40 °C to +50 °C
• Degree of protection: IP68 (IMQ officially tested) and IP69K (officially tested)
• Colour: grey; black on request (-N versions)

Why choose LittleJoint Y

• Pre-filled and ready to install - extremely compact, with soft, highly conformable gel
• Integrated cable glands - IP68 and IP69K sealing plus cable retention, so the joint cannot be pulled apart
• Complete with screw connector - nothing else to buy
• Always re-enterable - open, check and close again
• Fully submersible and suitable for underground use
• Gel not classified as hazardous under CLP; halogen-free and UV resistant
• Discreet - small and neat where it is visible, in grey or black (-N)

How it is installed

1. Strip the through cable without cutting it where possible, and prepare the branch cable.
2. Connect through and branch conductors in the supplied connector and lay it in the gel-filled shell.

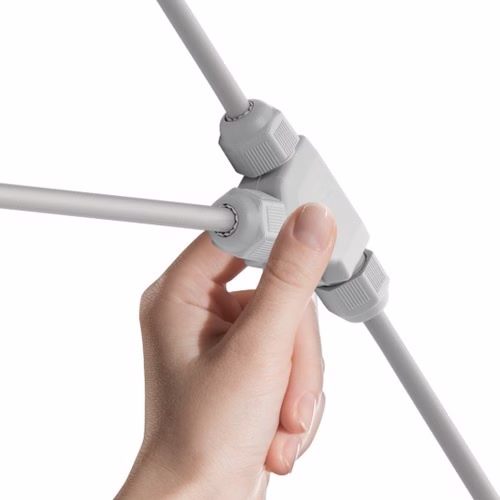

3. Close the shell and tighten the three glands: the gel seals the connection and the glands seal on the sheaths and hold the cables.

Where it is used

• Garden, path and step lighting
• Bollards, in-ground uplights and spotlights
• Lighting at pedestrian crossings and stairways
• Connections in pits, traps and underground runs
• Fountains, pools and water features (connections under water)
• Signs and small outdoor equipment

Related products

• Raytech LittleJoint L - IP68 in-line micro-joints with integrated glands
• Raytech Bob 3 and Bob 4 - IP68 multi-branch joints for lighting circuits
• Techno TH399 Y-branch connectors - IP68 branch connectors, 3 to 6 poles
• All Raytech low-voltage pre-filled joints

Frequently asked questions

What is LittleJoint Y used for?

Tapping a branch off a through cable - typically one light fitting or spotlight at a time along a garden, path or facade lighting run.

Which size do I need?

Barney Y for single-core cable 6-10 mm, Fred Y for three-core cable 8-13 mm, Dino Y for five-core cable 14-19 mm.

Is the connector included?

Yes - each joint is pre-filled with gel and supplied with its connector.

Can it be buried?

Yes - IP68 and IP69K, fully submersible and suitable for underground use.

Where can I buy Raytech LittleJoint Y in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel boxes and gel-filled joints across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the branch joints.
