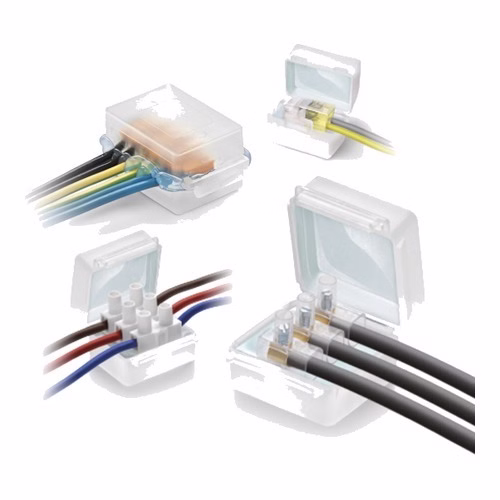

Raytech Gel Box Line - Transparent IPX8 Gel Boxes for Wire Connectors: Isaac, Pascal and Kelvin

The Raytech Gel Box Line is a simple way to take indoor connectors outdoors: transparent boxes, pre-filled with gel, that seal and insulate an everyday wire connection. The connector you already use goes into the box, the lid closes, and the gel seals it to IPX8. Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures.

Three sizes are listed here - Isaac, Pascal and Kelvin - shaped around the most common connectors, from 2-way 2.5 mm² connectors up to 3 x 6 mm². Each size has its own page with the connectors it takes and its price.

Choose your Gel Box Line size

Prices are per gel box; the blister quantity is shown for each size.

• Isaac - 30 x 27 x 23 mm, 2- and 3-way connectors for 2.5 and 4 mm², blister of 4 - Rs 500 per gel box
• Pascal - 36 x 37 x 26 mm, 2 x 4, 3 x 2.5 and 5 x 2.5 mm² connectors, blister of 2 - Rs 587 per gel box

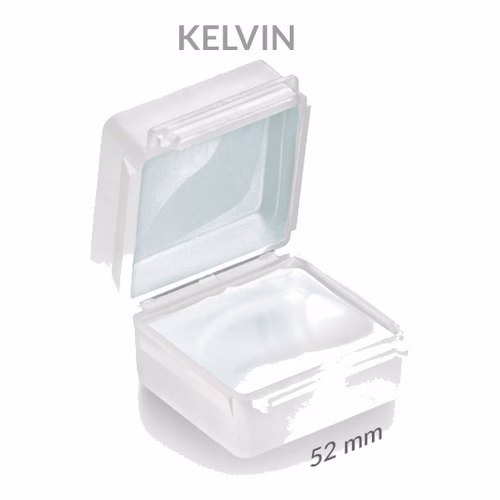

• Kelvin - 52 x 53 x 29 mm, 3 x 6 mm² connectors, blister of 1 - Rs 1,061 per gel box

How to choose the size

Isaac is the most compact, for 2- and 3-way connectors for 2.5 or 4 mm². Pascal takes 2 x 4 mm², 3 x 2.5 mm² and 3 x 1.5 mm² connectors, and 2+2 or 5-way connectors for 2.5 mm². Kelvin is the largest, for 3 x 6 mm² connectors.

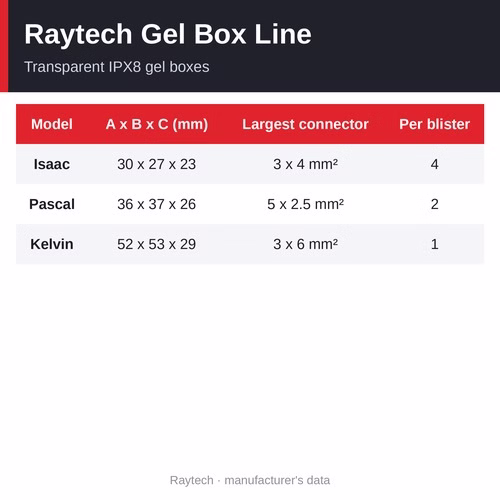

At a glance

• Sizes (A x B x C): Isaac 30 x 27 x 23 mm; Pascal 36 x 37 x 26 mm; Kelvin 52 x 53 x 29 mm
• Price: Rs 500 - 1,061 per gel box
• Degree of protection: IPX8
• Body: transparent
• Gel: UL 94-HB, re-enterable, no shelf life

Technical data (common to all sizes)

• Electrical performance: CEI EN 50393 as applicable (tested under a water head with the accessory installed in a box); Class 2 to CEI 64-8
• Gel: UL 94-HB; not classified as hazardous under CLP; no shelf life; halogen-free; UV resistant
• Degree of protection: IPX8
• Operating temperature: 90 °C
• Installation temperature: -40 °C to +50 °C
• Multipack versions: also made in a self-extinguishing UL 94-V2 version in yellow, orange, blue or black

Why choose the Gel Box Line

• Sized to the connector - choose the box that matches the connector instead of a one-size enclosure
• Transparent - the connection stays visible without opening the box
• Ready to use - nothing to mix or pour; close the lid and the gel seals the connection
• IPX8 - fully submersible and suitable for underground use
• Re-enterable - open, rework and close again; the gel stays soft
• Safe gel with no shelf life - not classified as hazardous under CLP, halogen-free and UV resistant
• Tidies household installations as well as civil and industrial connections

How to fit it

1. Choose the box by the connector - each size lists the connectors it is designed for.
2. Make the connection and lay it in the open box, with the wires leaving through the entrances.
3. Close the lid: the gel closes round the conductors and the connector. To rework the connection later, open the box, change it and close it again.

Where it is used

• Outdoor and garden lighting, bollards and facade lights

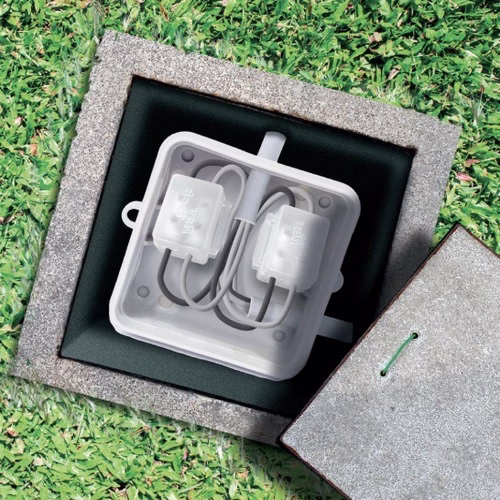

• Connections in damp locations, ground boxes and pits
• Submerged connections - fountains, pumps and pond equipment
• Civil and industrial installations that need a quick, sealed connection
• Tidying household junction connections

Related products

• Raytech Happy IPX8 gel boxes - three mini boxes for a single wire connector
• Raytech Ready Box and Baby Box - gel-filled IP68 junction boxes with terminal block and glands
• Raytech Wonder Gel - ready-to-use gel in a cartridge for boxes you already have
• Techno TH219 junction box - 4-way IP68 box for resin or gel filling
• All Raytech insulating gel boxes

Frequently asked questions

What do Isaac, Pascal and Kelvin mean?

They are sizes of the Raytech Gel Box Line, from the compact Isaac (30 x 27 x 23 mm) to the large Kelvin (52 x 53 x 29 mm) for 3 x 6 mm² connectors.

Which size takes a 5-way connector?

Pascal takes 5-way connectors for 2.5 mm².

Can the boxes be used under water?

Yes - they are IPX8 and suitable for submerged and underground use.

Why is the box transparent?

So the connection can be checked by eye without opening the box.

Where can I buy the Raytech Gel Box Line in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel boxes and gel-filled joints across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the gel boxes.
